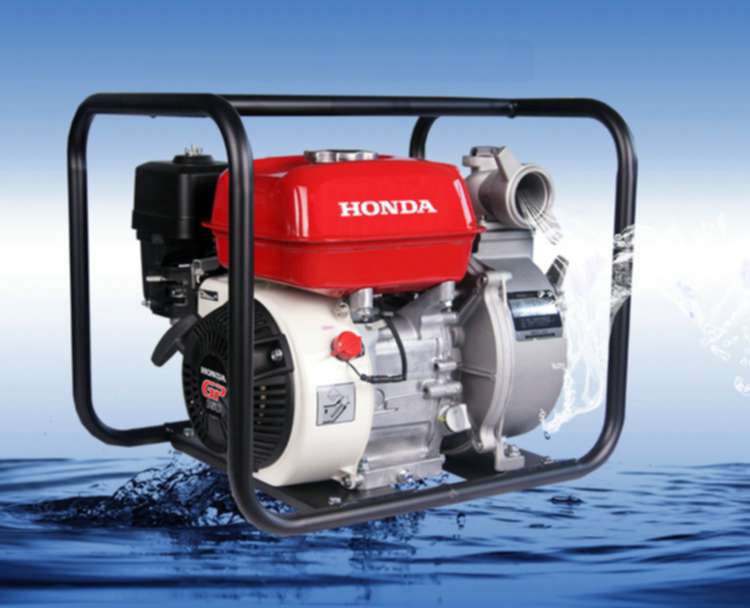

Russian2 inch Water Pump powered by HONDA
 |
Product Description
|
- Features
- Specs
1. HONDA gasoline engine GP160 or GX160 powered.
2. This is a self-pumping gasoline water pump, and it's lift can reaches 30 meters.
3. The color of this gasoline water pump is optional. We could do it as our clients demand.
4. Minimum order quantity: 100 sets
5. OEM service is also acceptable. We’d glad to produce gasoline water pumps which are customer's brand if quantity reach 200sets
6. There is an excellent technology team in our company to ensure to provide our clients with good quality gasoline water pumps.
| Model | HONDA POWERED WATER PUMP WP20X |
| Suction Diameter | 2 inch (50mm) |
| Discharge Dimeter | 2 inch (50mm) |
| Max. Capacity(M3/h) | 25.2 |
| Max.Head (M) | 22.8m |
| Suction lift( M) | 5m |
| Self-priming time (S/4m) | ≤110 |
| Max Speed | 3600 rpm |
| Engine Model | Honda Engine GX160 ,GP160,GX200,GP200 |
| Type | Single-cylinder,250,oblique,4-strke air-cooled OHV |
| Bore x Stroke (mm) | 68X45 68X54 |
| Displacement (cc) | 163CC 196CC |
| Compression ration | 8.5 : 1 |
| Rated Power/Rated Speed (Hp/r/min) | 4.8 HP/ 3600 r.p.m 5.5hp/3600rpm |
| Net Torque | 7.6lbs ft (10.3Nm) 9.1lbs ft(12.4Nm) at 2500rpm |
| Lubricating system | Splashed |
| Starting system | Recoil starter/Electric starter (Optional) |
| Fuel type | Automatic unleaded gasoline |
| Fuel tank capacity (L) | 3.3 US qt (3.1L) |
| Air Cleaner | Dual Element |
| Lube oil type | CD grade or SAE 10W-30, 15W-40 |
| Lube oil capacity (L) | 0.63 US qt (0.60L) |
| Dry Weight | 24±1 25±1 |
| Overall dimension（L×W×H）mm | 520mmx390mmx445mm |
