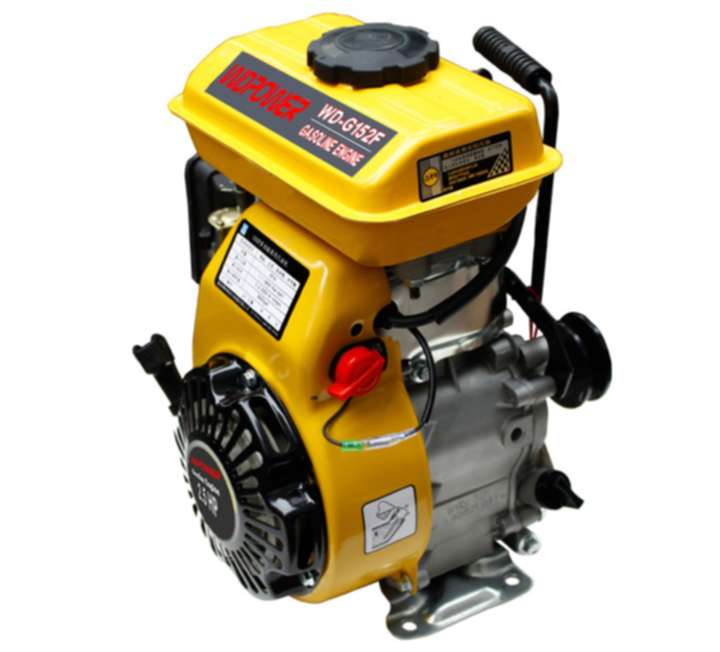

Gasoline Engine 152F

Product Description

 * Rated power: 2.5Hp/1.83Kw/3600r.p.m
* Advanced OHV
* Low fuel consumption
* Lightweight and compact design
* Easy and fast starting
*Stand up the hard work
*Recoil starter

  1. Features
  2. Specs

Small Size, Wide Application
WD POWER Gasoline engine series has an inclination of 15°, which makes its dimension more compact than the standard vertical engine and easy for mounting on any power device.
Excellent Performance
Each engine of wd power gasoline engine can deliver non-fluctuating power for a long time. It features easy starter, low noise and small vibration.
Advanced OHV:
OHV type improves the output, reduces the consumption and prolongs the service lift of engines. In addition, advanced combustion chamber and automatic lubrication system guarantee the high reliability of engines.
Convenient Starting System
Applying an auto-depression unit and recoil starter for a quick and easy starting.
Satisfying The Needs of Customers
Various PTO and speed ratios satisfy the different meets of applications, such as applications for mowers, water pumps, generators etc. A great quantity of accessories are optional.

152F GASOLINE ENGINE WATER PUMP SET

ModelWD-G152F
TypeSingle-cylinder、Oblique、air-cooled、4-stroke、OHV
Bore*Stroke (mm)52X46
Displacement (L)97
Compression ratio5.6:1
Rated power/ Rated speed ( hp / kw /r/min)2.5hp/1.83kw/3600
Starting systemRecoil starter
Rotation direction (face to the output axle)Anticlockwise
Ignition SystemNon-Contact Transistorized magneto Ignition System
Fuel tank capacity (L)1.5L
The lowest fuel consumption (g/kw.h)450g/kw.h
Fuel typeAutomatic unleaded gasoline
Lube oil typeCD grade or sea 10W-30,15w-40
Lube oil capacity (L)0.45
Battery capacity (V ,Ah)Above 5V 9Ah
Dry weight (kg)8.5kg
Overall dimension (L*M*H)290x280*380
