Air-cooled diesel engine 173F and 176F
 |
Product Description
|
- Features
- Specs

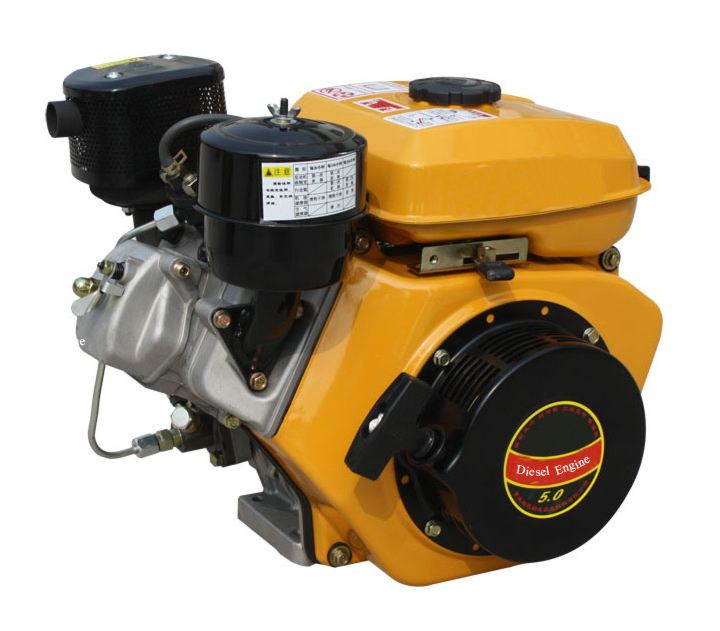

Tilt, Swirl-Chamber, Air-cooled diesel engine 173F and 176F
1.High quality and reasonable price.
2.Equipped with direct injection diesel engine.
3.OEM/Sample is OK
4.Usage: Walking tractor, Power tiller, Water Pump, small vehicle and boat.
5. LowSPE fuel consumption, High power.
6Lightweight and compact design
7.Easyand fast starting
8.Usedin High-temperature working environment
9.Air-cooledsmall diesel engine
10.Single cylinder, water cooled
| Model | WD173F 6hp | WD176F 7hp |
| Engine Type | Single cylinder, 4-stroke,tilt,swirl chamber,forced air cooling | |
| Bore × Stroke(mm) | 73×68 | 76×68 |
| Displacement(cc) | 284 | 308 |
| Compression Ratio | ratio 22:1 | Ratio 22:1 |
| Engine Rotating Speed (r/min) | 3000 | 3000 |
| Max. Power Output(kw/hp) | 4.85(6.6) | 5.66(7.7) |
| Rated Power Output(kw/hp) | 4.41(6) | 5.15(7) |
| Fuel Consumption Rate(ml/kw.h) | ≤295 | ≤295 |
| Fuel Consumption(L/Hh) | ≤1.300 | ≤1.519 |
| Ignition Type | Compression | Compression-ignition |
| Starting Mode | hand recoil/electric starter | |
| Output Shaft Direction | Anti-clockwise (view from flywheel ) | |
| Fuel Type | Diesel (0# Summer/-10# Winter) | |
| Fuel Tank Capacity (L) | 4 | 4 |
| Lubricating System | pressure lubrication | |
| Lube Type | SAE10W30 (Above CC grade) | |
| Lube Capacity(L) | 0.9 | 0.9 |
| Net/Gross Weight(kg) | 31/33 | 31/33 |
| External Dimension (L×W×H) (mm) | 500×350×390 | 500×350×390 |
| Packing Dimension (L×W×H) (mm) | 545×430×445 | 545×430×445 |
| Loading Quantity{20GP/40GP/40HQ} | 250/625/630 | 250/625/630 |
