Russian6 inch Water pump with 186FA hot sale
 |
Product Description
|
- Features
- Specs

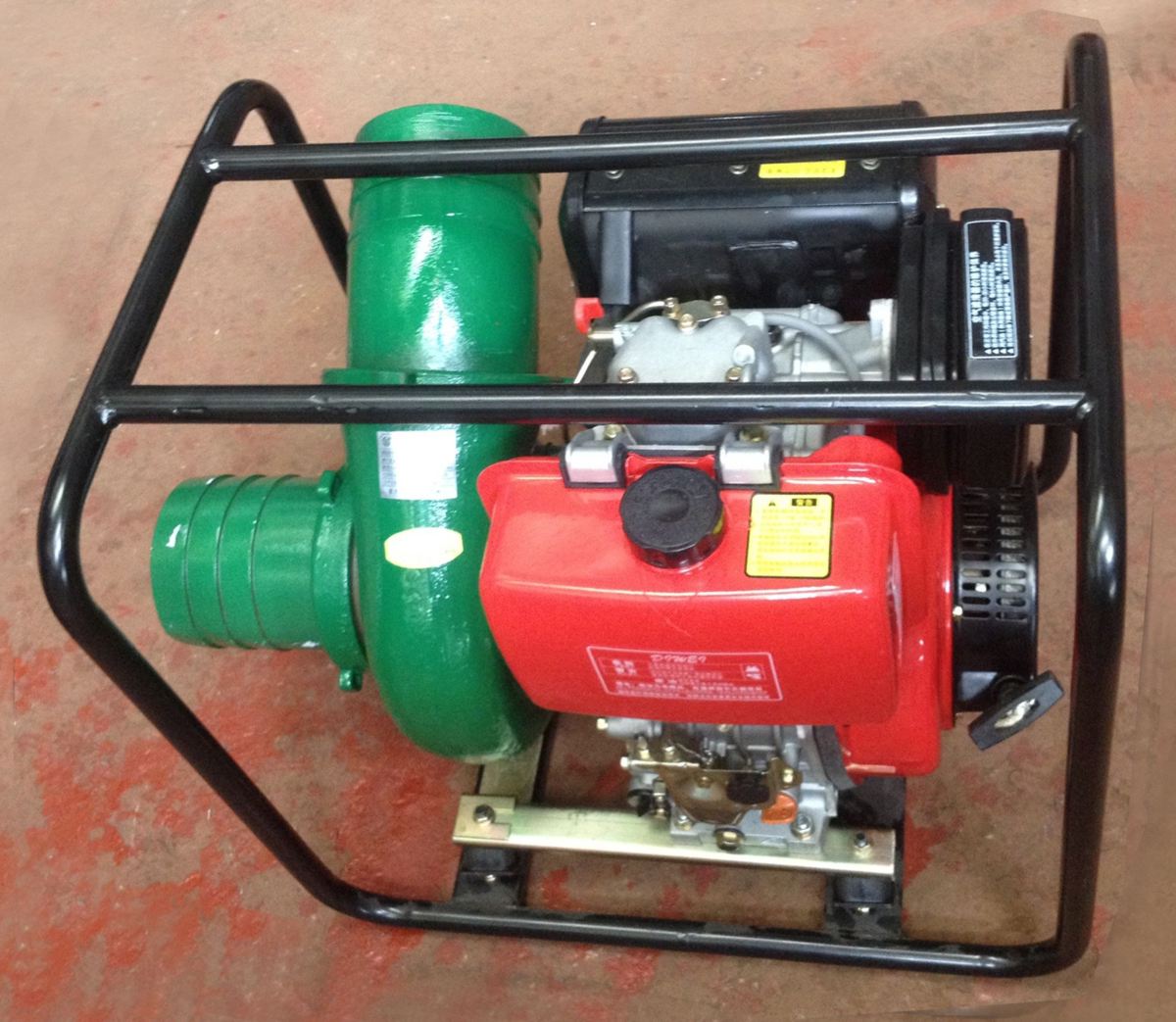

6 inch diesel engine water pump
1. WdPower Series diesel water pumps are new single self-suction centrifugal pumps
2.Which are designed and manufactured by its technology imported from foreign
3 .The pump body is assembled with cast iron high pressure casting
4. They can serve as a hydraulic pump, bilge pump, irrigation pump, water well pump, sprinkler pump and garden pump etc.
5. Vibration-proof design prolong the working life body
6. All water pump shave CE & TUV approved
7. ELECTRIC or RECOIL STAR
8. Max.flow : 160m 3/H
| Model | DWP150C |
| Suction Diameter | 6 inch (150mm) |
| Discharge Diameter | 6 inch (150mm) |
| Max./Rated Capacity (m3/hr.) | 160 m3/hr 135m3/hr |
| Max.Head/Rated head | 13m / 10m |
| Suction Lift: | 6.5m |
| pump efficiency | 74% |
| Max Speed: | 3600rpm (adjustable) |
| Engine Model | 186FA |
| Type | OHV Single-cylinder、vertical、air-cooled、4-stroke、direct injection |
| Bore×Stroke (mm) | 86X70 |
| Displacement(cc) | 406 |
| Compression ratio | 20:01 |
| Rated power/ Rated speed (Hp/r/min) | 7.7/3000 9.0/3600 |
| Max power/ Max speed (Hp/r/min) | 8.8/3000 10.0/3600 |
| Lubricating system | Pressure splashed |
| Starting system | Recoil starter/Electric starter |
| Fuel type | 0#、-10#、-20# diesel |
| Fuel tank capacity (L)/(US.Gal) | C=5.5 /1.45 L=12.5L / 3.3Gal |
| Fuel consumption (g/hp.h/r/min) | 201/3000 210/3600 |
| Lube oil type | CD grade or SAE 10W-30, 15W-40 |
| Lube oil capacity (L) | 1.65L /0.44Gal |
| Starting motor capacity (V、kW) | 12V 0.8kW |
| Charging generator capacity (V、A) | 12V 3A |
| Battery capacity (V、Ah) | Above 12V 20Ah |
| Overall dimension（L×W×H）mm | C=670X500X620 |
| Dry weight(kg) | ≤67（Recoil starter） ≤70.5（Electric starter） |
