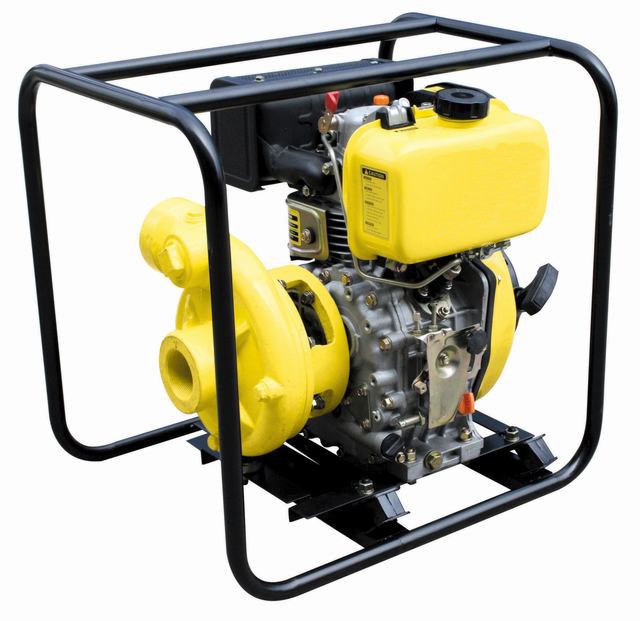

Russian3" Cast Iron Water Pump with 186FA engine
 |
Product Description
|
- Features
- Specs
* WdPower Series diesel water pumps are new single self-suction centrifugal pumps
* which are designed and manufactured by its technology imported from foreign.
* The pump body is assembled with Cast Iron high pressure casting.
* They can serve as hydraulic pump, bilge pump, irrigation pump, water well pump,sprinkler pump and infusion pump etc
| MODEL | 30HR |
| Inlet and outlet size(mm) | 80(inch) |
| Rotation speed(r/min) | 3600 rpm |
| Max capacity( m3/h) | 60 |
| Pump lift(m) | 65m |
| Max.suction head(m) | 8m |
| Engine type | 186F or 186FA |
| Fuel tank capacity(L) | 5.5 |
| Fuel type | 0#(summer)-10#(winter)-35(chiness)diesel |
| Starting system | Recoil or Electric starting |
| Net/Gross weight(kg) | 75 kgs/78 kgs |
| Overall size (LxWxH) (mm) | 665 x 490 x 620 ( 114/246/328) |
