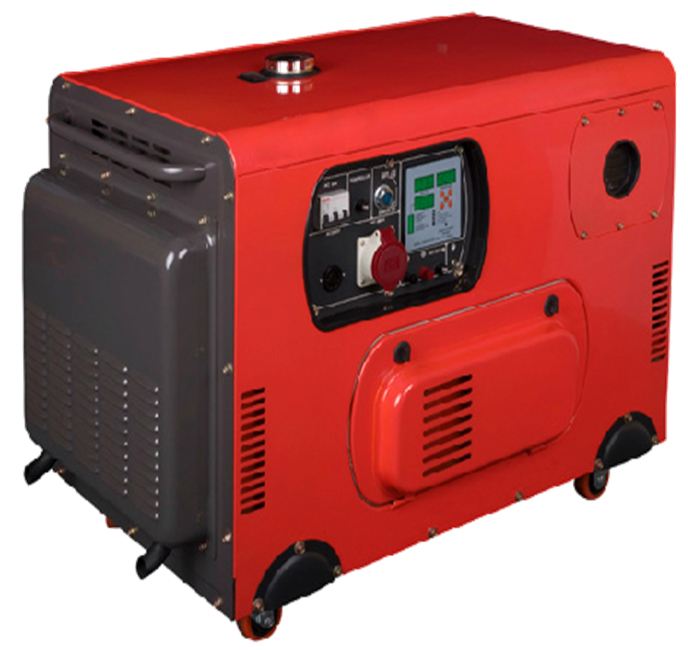

RussianWD-10000SL 8KW, 10KW
 |
Product Description
|
- Features
- Specs
Lightweight Portable Generator Power
The alternator is connected directly to the engine, eliminating the flywheel as in traditional sets.
This design results in a 50% reduction in weight and overall dimensions. Electric power is made
available to a wide range of applications
Certification
WDPOWER gensets have received CE、UL、CETL、 certifications
A Wide Range of Benefits
In addition to clean, quiet, and efficient power, WDPOWER offers superior overload and low oil level protection.
The unique Smart Throttle automatically varies the engine speed according to the load, resulting in lower
fuel consumption and less engine noise. Using 20 to 40% less fuel than a conventional set results in a
longer running time.
Great Model Lineu
WDPOWER offers a number of generators with output to match your particular application
| Model | WD-1000SL | WD-10000SL (Three ) | ||
| Rated frequency (Hz) | 50HZ | 60HZ | 50HZ | 60HZ |
| Rated output (kVA) | 8.0KW | 8.5kw | 10KW | 10.6kw |
| Max. output (kVA) | 9.0KW | 9.6kw | 11KW | 11.7KW |
| Structure type | Silent type | Silent type | ||
| Rated Voltage (V) Optional | 110,120,220,230,240,110/220,120/240; | |||
| Rated rotation speed (r/min) | 3000RPM | 3600RPM | 3000RPM | 3600RPM |
| Phase NO. | Single phase | three phase (optional ) | ||
| Power factor (Cos Φ) | 1 | 1 | 1 | 1 |
| Insulation Grade | B | B | B | B |
| Pole number | 2 | 2 | 2 | 2 |
| Excitation mode | Self-excitation & constant voltage (AVR) | Self-excitation & constant voltage (AVR) | ||
| Panel Type | Intelligent&Digital display control model | |||
| DC12V output | Connection pole output | Connection pole output | ||
| Package | Standard Export Plywood case | Standard Export Plywood case | ||
| Overall dimension | 1040*660*740 （L×W×H）(mm) | 1040*660*740 （L×W×H）(mm) | ||
| Dry weight(kg) | 240 | 240 | ||
| Working assorting weight (Kg) | 245 | 245 | ||
| Noise level（7m）dB(A) | 75 | 75 | ||
| Engine Model | 2V86FE | 2V86FAE | ||
| Engine Type | Two-cylinder,vertical,air-cooled,4-stroke,direct injection | |||
| Cylinder NO.-bore×stroke (mm) | 2-86×70 | 2-86×72 | ||
| Displacement (cc ) | 836 | 870 | ||
| Rated power [KW/HP/(r/min)] | 11KW/15HP/3000 | 12KW/16.5HP/3600 | 13KW/17.7hp/3000 | 15KW/20HP/3600 |
| Compression ratio | 20:1 | 20:1 | ||
| Rated rotation speed (r/min) | 3000 | 3600 | 3000 | 3600 |
| Combustion system | Direct injection | Direct injection | Direct injection | Direct injection |
| Cooling system | Air cooled | Air cooled | Air cooled | Air cooled |
| Lubrication system | Pressure splashed | Pressure splashed | ||
| Starting system | Electric starter | Electric starter | ||
| Fuel type | 0# (summer) 10#( winter)-35#(chillness) diesel | |||
| Lube oil brand | CD grade or SAE10W-30，15W-40 | CD grade or SAE10W-30，15W-40 | ||
| Lube capacity (L) | 1.7 | 1.7 | 1.7 | 1.7 |
| Starting motor capacity (V-kW) | 12V 1.4kW | 12V 1.4kW | 12V 1.4kW | 12V 1.4kW |
| Charging generator capacity (V-A) | 12V 3A | 12V 3A | 12V 3A | 12V 3A |
| Fuel consumption (g/kw.h) | ≤310 | ≤315 | ≤310 | ≤315 |
| Fuel tank capacity (L) | 50 | 50 | 50 | 50 |
| Continuous running time (hr) | 6 | 6 | 6 | 6 |
