2V86FE
 |
Product Description
|
- Features
- Specs

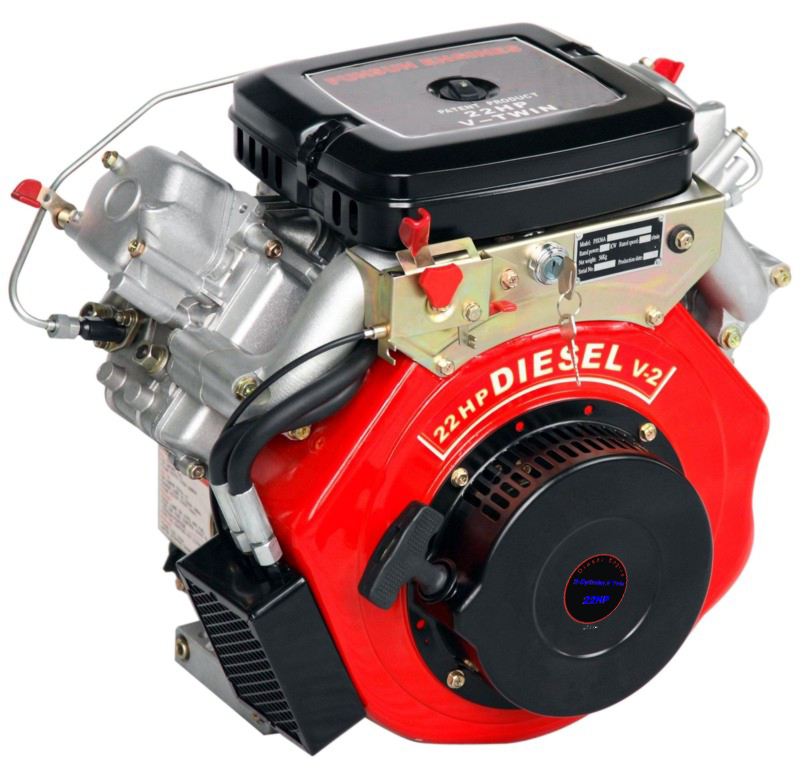

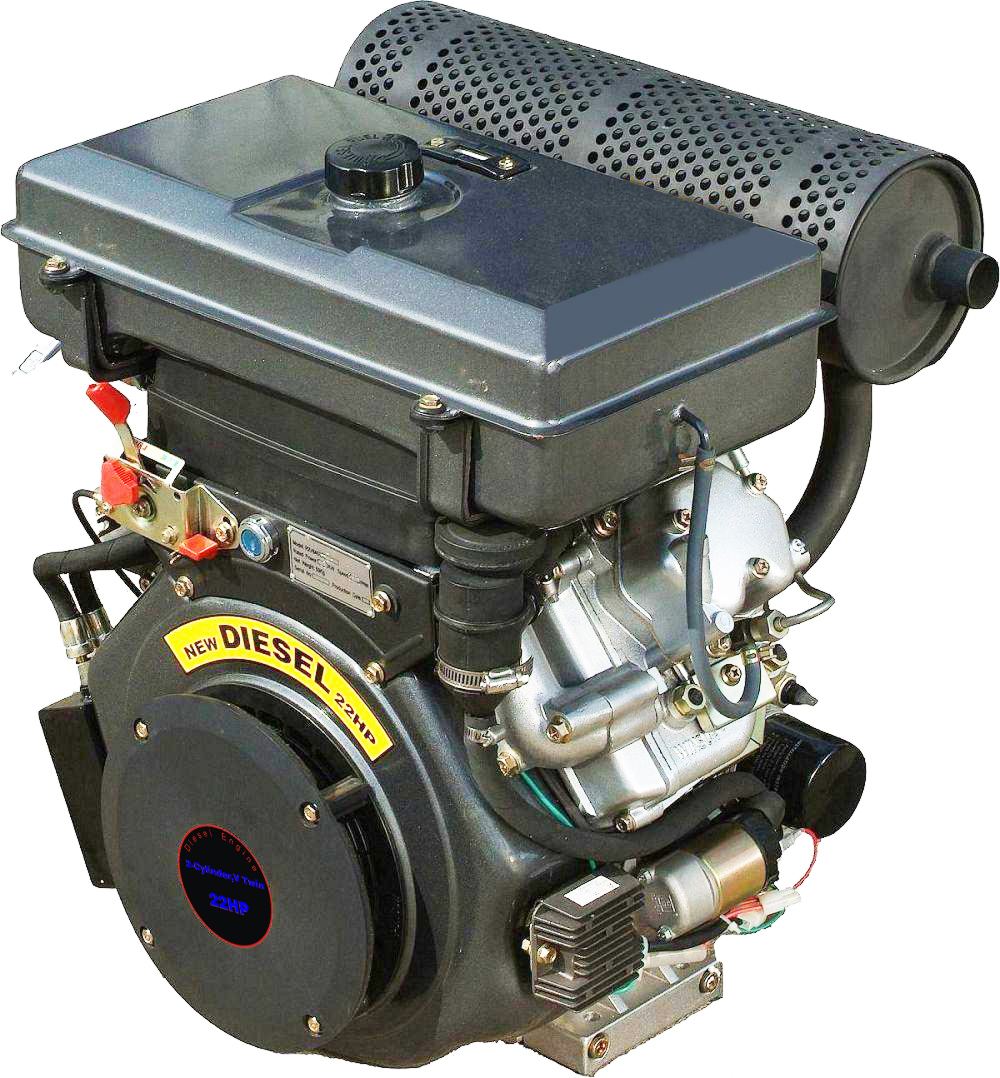

Air-cooled ,2-cylindrical ,V Twin ,4-Stroke ,OHV Diesel Engine
2V86 diesel engines are the ideal power for stationary and mobile machinery,
characterized by light weight, low noise, low fuel consumption, low emission
etc.With SAE connection dimensions, BOSCH injector, SKF main bearing,
pressurized lubrication and vertical & horizontal shafts outputs, two cylinders
is widely applicable to different markets, including diesel lawn mowers, diesel
generator sets, diesel water pump sets, transportation vehicle, boat propeller,
tiller, pump system and other universal machinery
| Air-cooled ,2-cylindrical ,V Twin ,4-Stroke ,OHV Diesel Engine | ||||
| Model | 2V86FE | 2V86FAE | ||
| Type | 2-cylinder,V Twin ,Air-cooled,4-stroke,OHV | |||
| Bore×Stroke (mm) | 2-86*70 | 2-86*72 | ||
| Displacement(cc) | 836 | 870 | ||
| Compression ratio | 20:01 | 20:01 | ||
| Rated power | 15HP | 16.5HP | 17.7HP | 20HP |
| Max power | 16.5HP | 17.7HP | 20HP | 22HP |
| Speed (RPM) | 3000 | 3600 | 3000 | 3600 |
| Lubricating system | Pressure splashed | |||
| Starting system | Recoil starter/Electric starter | |||
| Cooling system | Forced air（强制风冷） | |||
| Power take off (PTO) | Crankshaft (曲轴） | |||
| Rotation direction | Anticlockwise（逆时针方向）(Face to the power output axle) | |||
| Fuel type | Diesel Oil : 0#、10# 22# | |||
| Fuel tank capacity | 12L/3.73Gas | 12L/3.73Gal | ||
| Fuel consumption (g/kw.h) | ≤270 | ≤290 | ≤270 | ≤290 |
| Lube oil type | CD grade or SAE 10W-30, 15W-40 | |||
| Lube oil capacity | 1.7L | 1.7L | ||
| Battery capacity (V/KW) | 12V 0.8kW | |||
| Charging genset apacity | 12V 3A | |||
| Battery capacity | Above 12V 17Ah | Above 12V 20Ah | ||
| Meas/Dim. | 555*391*459 | 555*391*459 | ||
| Net weight(kg) | 58 | 58 | ||
