RussianGasoline engine power sprayer GJ-767
 |
Product Description
|
- Features
- Specs
1. Tank capacity: 25L
2.gasoline engine: TU-26/1E34F
3.easy starter
4.high pressure, big flow, good efficiencies

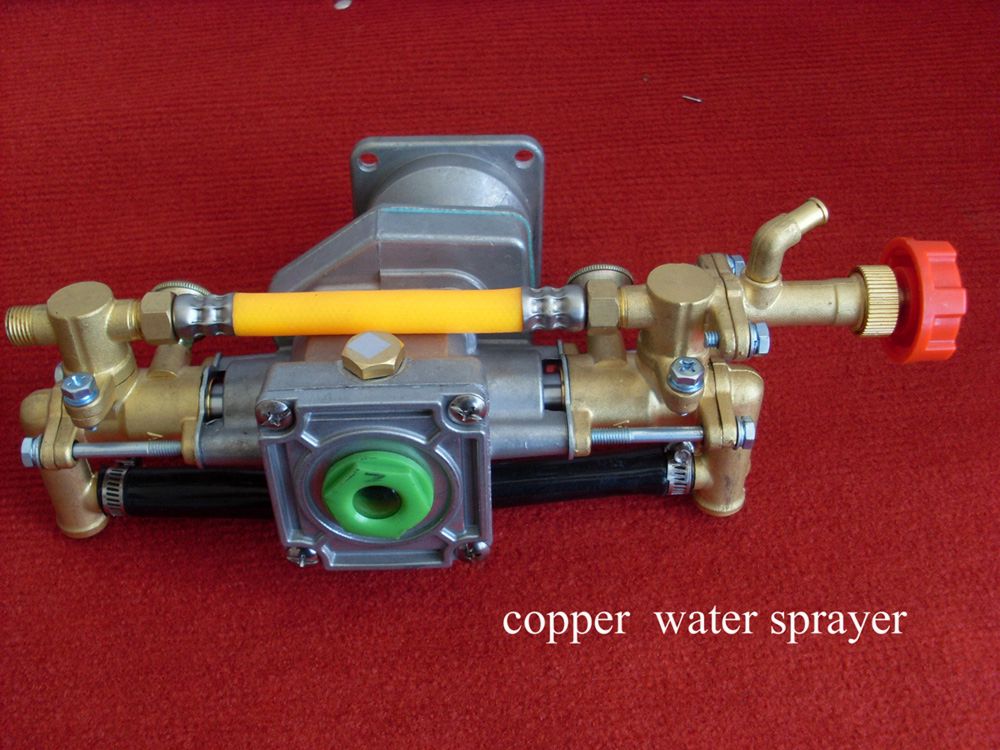

5.brass plunger pump

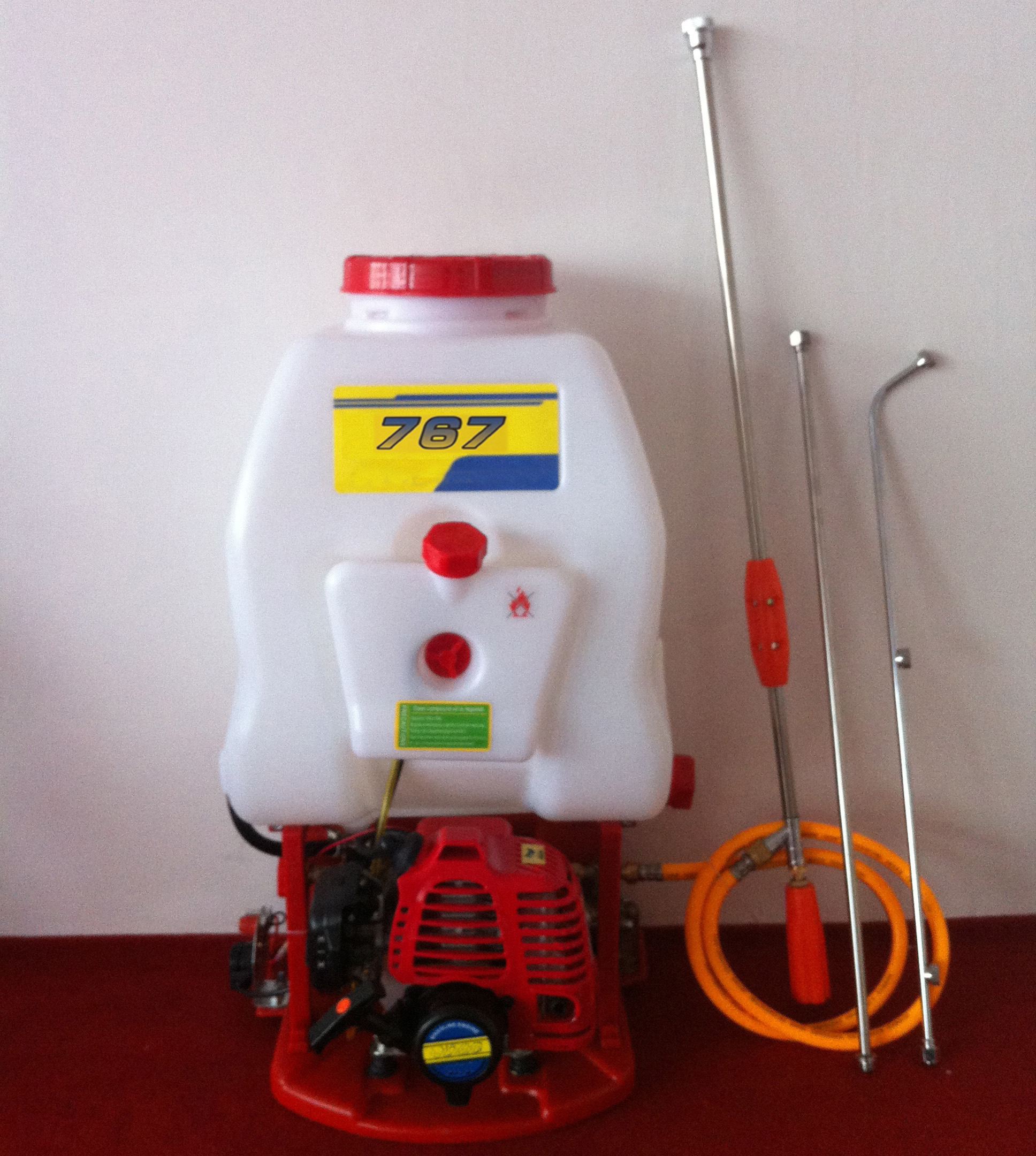

Knapsack power sprayer GJ-767

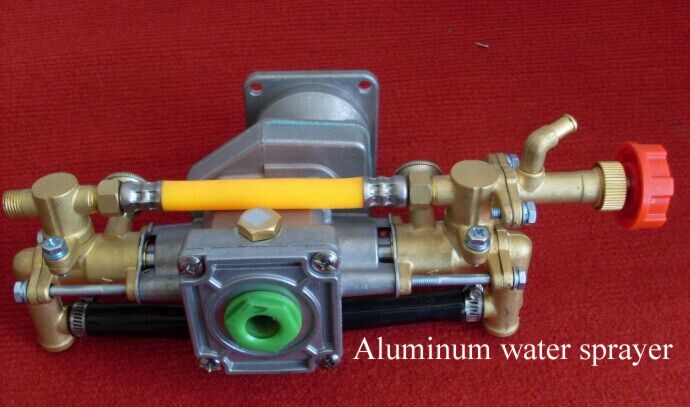

Available with brass /aluminum or copper / brass /pump, stainless steel piston (plunger) rod, Smooth and easy starter, the material of tank is PE.
It widely used for orchards, vegetable, cotton, tall trees, crop and so on.
| Model | GJ-767 |
| Tank Capacity | 25L |
| Working pressure | 15-25KG/CM3 |
| Output | 8L/min |
| Dimension | 420*350*645mm |
| N. weight & G.weight | 10KGS & 11KGS |
| Engine model | 1E34F |
| Displacement | 25.4cc |
| Rated output power & Relevant speed | 0.85KW/6500rpm |
| Starting system | Recoil |
| Fuel mixture ratio | Gasoline: Two-cycle Oil (25:1) |
| Carburetor | Diaphragm type |
| Fuel tank capacity | 1.2L |
| Ignition system | C.D.I |
| N.W./G.W. | Engine carton: 5.4kgs/5.7kgs |
| Package dimension | |
| Loading Qty | 330pcs/20GP, 815pcs/40GP |
