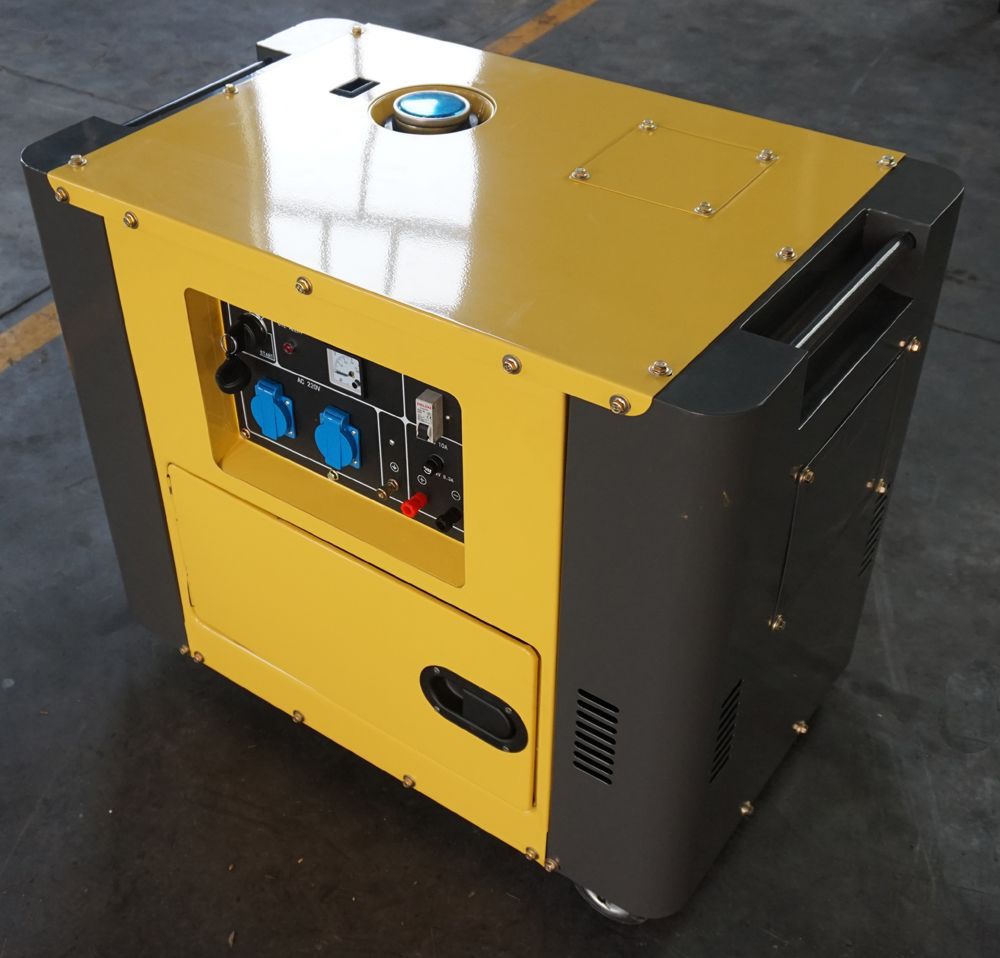

WD-5000SL

Product Description

 1. Max. Output power is 5.0kVA
2. Low noise design, 72 dB (A) at 7mts
3. Lightweight and compact, only 158 kg
4. A full tank of fuel can last for 6.0 constant hours
5. All Weather Wet Duty Generators
6. Low idle speed 750r/min, Easy to Start
7. Low Emissions fit the EPA requirements
8. Easier and more convenient electric starter
9. New AVR (Automactic voltage regulator) stablizes the output power

  1. Features
  2. Specs






Strong power
all generator sets are equipped with WDPOWERS four-stroke engines.
Low noise running
High effective combustion system ensures complete combustion, besides, a large silencer dampens
exhaust noise and engine sounds which are contained by a double-wall structure and absorbed by a liner.
Digital control panel
All the control units of the generator sets are on one panel, a monitor of the panel will display the real-time
working data of the generator set such as its output voltage and current etc.
Besides, the running trouble of the generator will also be displayed on the panel.
Low oil alarm system
before the oil level drops to the limited level, the generator set will stop automatically. The whole set can be
restarted only if the oil is refilled.
Application of new AVR
The AVR (Automatic Voltage Regulator) not only can smooth the output but also can provide reasonable protection
against the overload of the whole set, thus avoid damage to the set.
Advanced alternator winding
Waveform distortion is kept at a minimum level and the output is stable. The winding design
protects the generator from short circuits and provides a stable output while running inductive loads
ATS (Automatic Transfer Switch)
On the inheriting of the original
general-purpose generator set,  diesel generator sets with digital control panel can be
equipped with a made ATS(automatic transfer switch). ATS, in its preset intervals, can automatically
check and monitor the running of the genset to ensure the genset in good working
condition. Meanwhile, ATS will monitor the utility power, if utility power fails or the voltage and frequency
of the utility power become abnormal, ATS will give commands to start the genset automatically



ModelWD-5000SL
Rated frequency (Hz)50HZ60HZ
Rated output (kVA)4.2KVA4.5KVA
Max. output (kVA)4.5KVA4.8KVA
Rated Voltage (V)110,120,220,230,240,110/220,120/240
Rated rotation speed (r/min)3000RPM3600RPM
Phase NO.Single phase or three phase (optional )
Power factor (Cos Φ)1
Insulation GradeB
Pole number2
Excitation modeSelf-excitation & constant voltage (AVR)
Panel TypeGeneral Panel
DC12V outputConnection pole output
Overall dimension(L×W×H)(mm)870*580*765
Dry weight(kg)163
Working assorting weight (Kg)167
Noise level(7m)dB(A)72
Structure typeSilent type
Engine Model186F
Engine TypeSingle-cylinder,vertical,air-cooled,4-stroke,direct injection
Cylinder NO.-bore×stroke (mm)86×70
Displacement (ml)406
Rated power [KW/(r/min)]5.6KW/30006.6KW/3600
Compression ratio19:01
Rated rotation speed (r/min)30003600
Combustion systemDirect injection
Cooling systemAir cooled
Lubrication systemPressure splashed
Starting systemElectric starter
Fuel type0# (summer) 10#( winter)-35#(chillness) diesel
Lube oil brandCD grade or SAE10W-30,15W-40
Lube capacity (L)1.65
Starting motor capacity (V-kW)12V 0.8kW
Charging generator capacity (V-A)12V 3A
Fuel consumption (g/kW.h)≤201≤210
Fuel tank capacity (L)15
Continuous running time (hr)6
