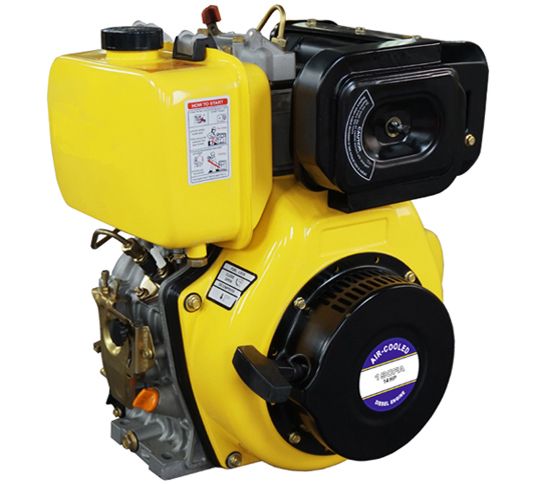

WD192FA(E) 192FA(E)

Product Description

1) Max.output: 14.0HP/3600rpm
2) efficient air cleaner system
3) different type of PTO shafts
4)The miniaturized fuel injection system
5) Low fuel consumption
6)Lightweight and compact design
7)Easy and fast starting
8) Stand up the hard work
9)Recoil or electric starting

  1. Features
  2. Specs

 Unique Drive System
The drive gear design is incorporated into the latest WdPowers diesel engine which will greatly reduce vibration and noise. Fuel System Technology
Fuel systems assure high efficiency operation.
The precision machined and precisely timed injection pump and the direct-injection design leads to lower fuel consumption and reduced tailpipe emissions. The engine meets current and proposed EPA emission standards.
Advanced Noise-reduce Design
The high efficiency muffler system greatly lowers exhaust noise. With the addition of the advanced design air induction system, intake noise is reduced to a low level. The design or the cylinder block, engine cover, and valve train all combine to reduce engine noise levels

WdPowers provides a full line of brand new and high quality products, each and every units are strictly factory tested before shipment, all the generators from WdPowers are CE approved, factory are already passed the ISO9001:2008 quality management system certification, relying on excellent product quality, thoughtful service, good reputation, creating a brilliant performance.
We only to produce diesel engine, diesel generator, diesel water pump and diesel tiller, because the focus, we are more professional.
In addition, we have a variety of factories working close with us and we are able to provide excellent price and quality for our customers, also the other similar products as customers' requirement.
Company promises: good quality products, reasonable prices, short production time and satisfactory after-sales service. OEM order is available and we are willing to work with importers, distributors, sales agents & retailers worldwide



Model  new
WD192FA(E)    192FA(E)
Engine TypeSingle-cylinder,vertical,air-cooled,4-stroke,direct injection
Maximum output(KW/HP)/3600rpm10.29/14.0
Continous output(KW/HP )/3600rpm9.3/12.6
Bore×Stroke (mm)92×78
Displacement(L)0.518
Compression ratio19:01
Lowest rotation speed at zero load (r/min)≤1300
Lubricating systemPressure splashed
Starting systemRecoil starter/Electric starter
Rotation directionClockwise
Fuel type0#,-10#,-20# diesel
Fuel tank capacity (L)5.5
Fuel consumption (g/kw.h/r/min)280/3000  290/3600
Lube oil typeCD grade or SAE 10W-30, 15W-40
Lube oil capacity (L)1.65
Overall dimension(L×W×H)mm520X480X555
Net weight/Dry weight(kg)42/55
