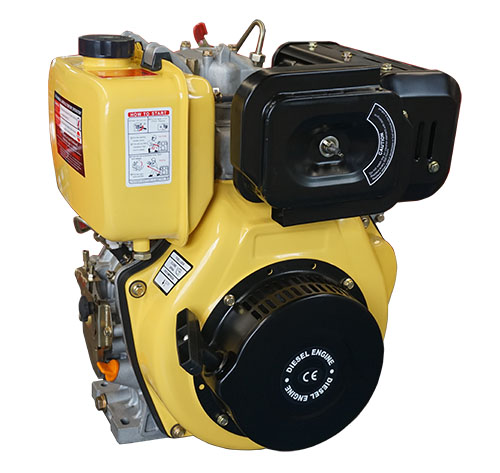

WD190FA(E) 190FA(E)

Product Description

1) Max.output: 13HP/3600rpm
2) efficient air cleaner system
3) different type of PTO shafts
4)The miniaturized fuel injection system
5) Low fuel consumption
6)Lightweight and compact design
7)Easy and fast starting
8) Stand up the hard work
9)Recoil or electric starting



  1. Features
  2. Specs

Unique Drive System
The drive gear design is incorporated into the latest WdPowers diesel engine which will greatly reduce vibration and noise. Fuel System Technology
Fuel systems assure high efficiency operation.
The precision machined and precisely timed injection pump and the direct-injection design leads to lower fuel consumption and reduced tailpipe emissions. The engine meets current and proposed EPA emission standards.
Advanced Noise-reduce Design
The high efficiency muffler system greatly lowers exhaust noise. With the addition of the advanced design air induction system, intake noise is reduced to a low level. The design or the cylinder block, engine cover, and valve train all combine to reduce engine noise levels


WdPowers
provides a full line of brand new and high quality products, each and every units are strictly factory tested before shipment, all the generators from WdPowers are CE approved, factory are already passed the ISO9001:2008 quality management system certification, relying on excellent product quality, thoughtful service, good reputation, creating a brilliant performance.
We only to produce diesel engine, diesel generator, diesel water pump and diesel tiller, because the focus, we are more professional.
In addition, we have a variety of factories working close with us and we are able to provide excellent price and quality for our customers, also the other similar products as customers' requirement.
Company promises: good quality products, reasonable prices, short production time and satisfactory after-sales service. OEM order is available and we are willing to work with importers, distributors, sales agents & retailers worldwide



ModelWD190FAE   190FE
TypeSingle-cylinder,vertical,air-cooled,4-stroke,direct injection
Bore×Stroke (mm)90×78
Displacement(cc)496
Compression ratio19:01
Rated power/ Rated speed (Hp/r/min)11.7/3600
Max power/ Max speed (Hp/r/min)12.2/3600
Lubricating systemPressure splashed
Starting systemElectric starter
Rotation direction(face to the output axle)Anticlockwise / Clockwise
Fuel type0#、-10#、-20# diesel
Fuel tank capacity (L)5.5L
Fuel consumption/related rotation speed (g/hp.h/r/min)280/3000         290/3600
Lube oil typeCD grade or SAE 10W-30, 15W-40
Lube oil capacity (L)1.65L
Starting motor capacity (V、kW)12V   0.8kW
Charging generator capacity (V、A)12V    3A
Battery capacity (V、Ah)Above 12V 20Ah
Package  dimension(L×W×H)mm520X480X555
Dry weight(kg)≤55(Recoil starter)≤57(Electric starter)
