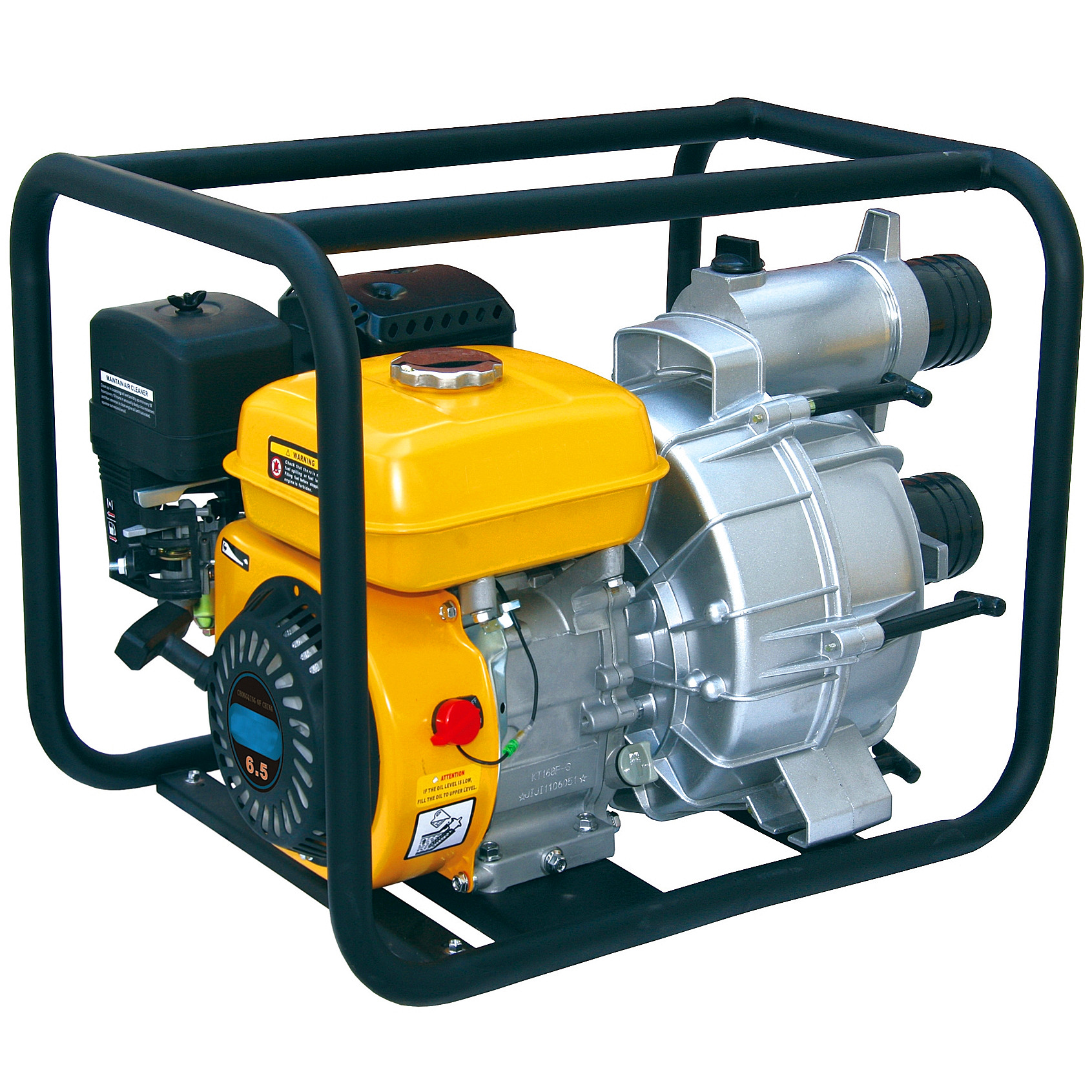

RussianSewerage pump GWP80 3 inch hot sale
 |
Product Description
|
- Features
- Specs
Gasoline Sewerage water pumps are single self-priming centrifugal pumps manufactured form high pressure aluminum alloy casings
Powered by air-cooled Gasoline engine 168F
Heavy-duty full frame protection
Maximum capacity of 164UK gallons per minute suction/discharge pore
36pis max,
3“suction/discharge ports
| Model | GWP80 |
| Suction Diameter | 3 inch (80mm) |
| Discharge Dimeter | 3 inch (80mm) |
| Max. Capacity(M3/h) | 75 |
| Max.Head (M) | 25m |
| Suction lift( M) | 7m |
| Self-priming time (S/4m) | 120 |
| Max Speed | 3600 rpm( adjustable) |
| Engine Model | Gasoline engine G168F |
| Type | Single-cylinder,250,oblique,4-strke air-cooled OHV |
| Bore x Stroke (mm) | 70X55 |
| Displacement (cc) | 212 |
| Compression ration | 8.5 : 1 |
| Rated Power/Rated Speed (Hp/r/min) | 5.4 HP/ 3600 r.p.m |
| Max power /Max speed (Hp/r/min) | 7.0 Hp /3600 r.p.m |
| Lubricating system | Splashed |
| Starting system | Recoil starter |
| Fuel type | Automatic unleaded gasoline |
| Fuel tank capacity (L) | 3.7L |
| Fuel consumption(g/hp.h/r/min) | ≤395g/kw.hour |
| Lube oil type | CD grade or SAE 10W-30, 15W-40 |
| Lube oil capacity (L) | 0.6L |
| Starting motor capacity (V、kW) | 12V 0.8KW (Optional) |
| Charging generator capacity (V、A) | 12V 3A |
| Battery capacity (V、Ah) | Above 12V 20Ah (Optional) |
| Overall dimension（L×W×H）mm | 575 x 430 x 455 |
| Net weight(kg) | 32 |
