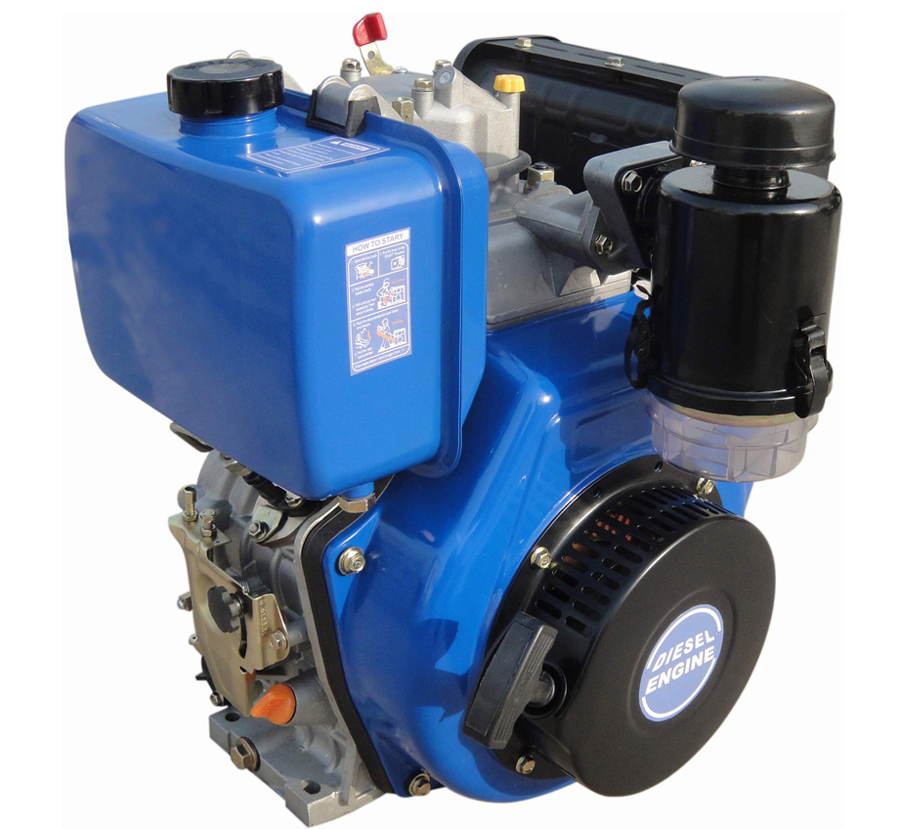

FS Series Diesel Engine (Camshaft PTO)
- Features
- Specs
FS Series Diesel Engines
Camshaft PTO
Unique Drive System
The drive gear design is incorporated into the latest WdPower diesel engine which will greatly reduce vibration and noise.
Fuel System Technology
Fuel systems assure high efficiency operation.
The precision machined and precisely timed injection pump and the direct-injection design leads to lower fuel consumption and reduced tailpipe emissions. The engine meets current and proposed EPA emission standards.
Advanced Noise-reduce Design
The high efficiency muffler system greatly lowers exhaust noise. With the addition of the advanced design air induction system, intake noise is reduced to a low level. The design or the cylinder block, engine cover, and valve train all combine to reduce engine noise levels
FS Series Diesel Engine Camshaft PTO | ||||||||
Camshaft PTO RPM is 1/2 of crankshaft | ||||||||
Model | 170FS | 178FS | 186FS | 188FS | ||||
Type | Single-cylinder,vertical,air-cooled,4-stroke,direct injection | |||||||
Bore×Stroke (mm) | 70×55 | 78×62 | 86X70 | 88X75 | ||||
Displacement(cc) | 211 | 296 | 406 | 456 | ||||
Compression ratio | 20:1 | 21:1 | 19:1 | 22:1 | ||||
Rated power | 3.8 | 4.2 | 5.0 | 5.5 | 7.7 | 8.7 | 9.2 | 10.5 |
Max power | 4.2 | 4.6 | 5.5 | 6.0 | 8.7 | 10.0 | 10.5 | 12.0 |
Speed (RPM) | 1500 | 1800 | 1500 | 1800 | 1500 | 1800 | 1500 | 1800 |
Lubricating system | Pressure splashed | |||||||
Starting system | Recoil starter/Electric starter | |||||||
Cooling system | Forced air(强制风冷) | |||||||
Power take off (PTO) | Crankshaft (曲轴) | |||||||
Rotation direction | Clockwise(顺时针方向)(Face to the power output axle) | |||||||
Fuel type | Diesel oil: 0#、-10#、-22# | |||||||
Fuel tank capacity | 2.5L/0.66Gas | 3.5L/0.92Gal | 5.5L/1.45Gal | |||||
Fule consumption | 209 | 218 | 206 | 215 | 206 | 215 | 272 | 280 |
Lube oil type | CD grade or SAE 10W-30, 15W-40 | |||||||
Lube oil capacity | 0.75L/0.20Gas | |||||||
Battery capacity (V、Ah) | 12V 0.8kW | |||||||
Charging genset apacity | 12V 3A | |||||||
Battery capacity | Above 12V 17Ah | Above 12V 20Ah | ||||||
Meas/Dim. | 430X370X465 | 480X450X525 | 525X470X565 | |||||
Net weight(kg) | 27 / 30.5 | 34/37.5 | 49/52.5 | 50/53.5 |
