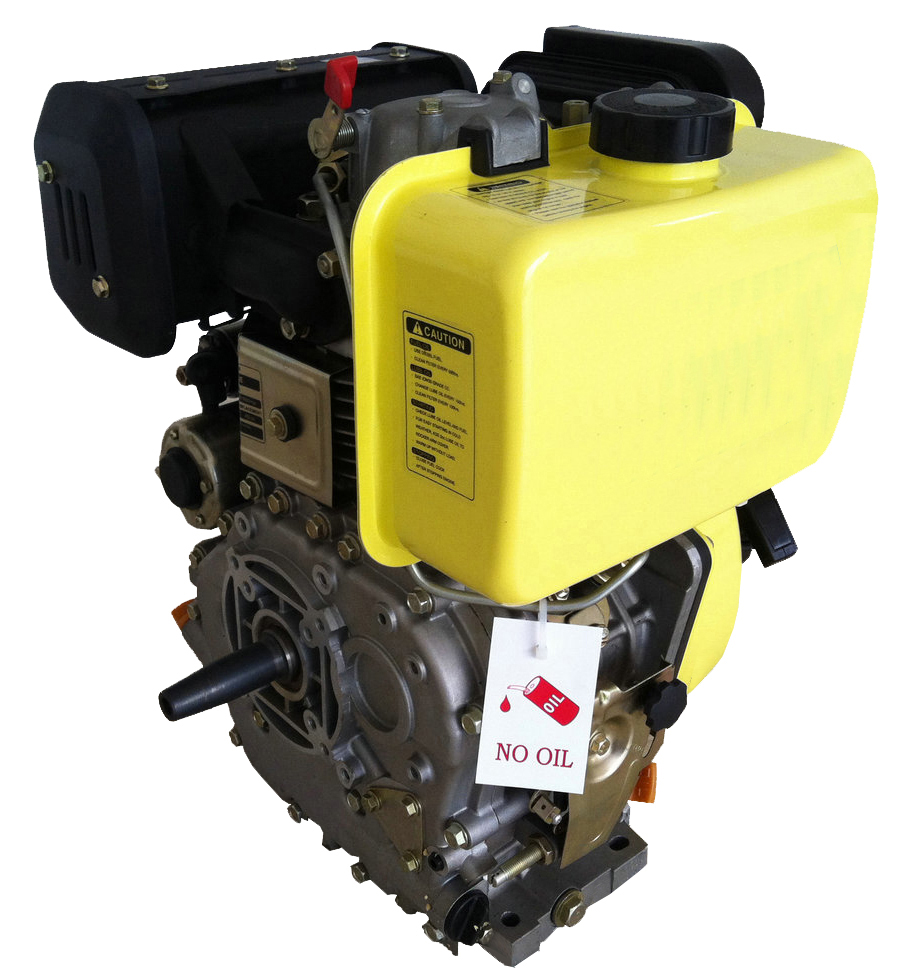

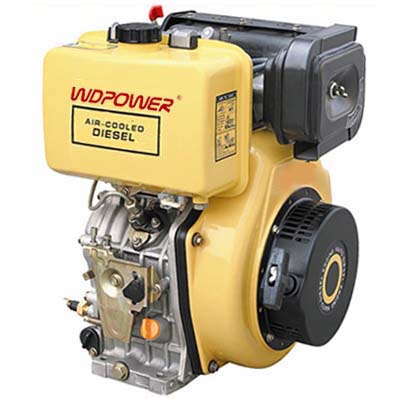

F Series Diesel Engines
- Features
- Specs
Unique Drive System
The drive gear design is incorporated into the latest WdPower diesel engine which will greatly reduce vibration and noise.
Fuel System Technology
Fuel systems assure high efficiency operation.
The precision machined and precisely timed injection pump and the direct-injection design leads to lower fuel consumption and reduced tailpipe emissions. The engine meets current and proposed EPA emission standards.
Advanced Noise-reduce Design
The high efficiency muffler system greatly lowers exhaust noise. With the addition of the advanced design air induction system, intake noise is reduced to a low level. The design or the cylinder block, engine cover, and valve train all combine to reduce engine noise levels
WDPOWERS DIESEL ENGINE can serve as a good power for industrial, agriculture and marine auxiliary machines. Widely used in irrigation, spray, transplanting rice seed, threshing, tillage, grass cutting, fettling soil sample, riled of vibration and shock, marine engine, light-type transport vehicle, movable compressor, light type transport vehicle, movable compressor, light type power generating etc.
Main Feature: Direct spraying combustion system. Recoil manual starter or electric starter for selection. Air Cooling by force system. Structure of crankshaft box with side cover fixed type. The fan cover made by low noise composite steel.
WDPOWERS series air cooling, direct spraying 4-cycle diesel engine is a type engine which saves on material and energy. The machine is compact in structure, small in size, light in weight, easy on start, safe in operating and simple in maintenance. It is proven to move conveniently, economically and reliably.
A little engine built to stand up to hard work. The design, structure and materials of the WDPOWERS combine to form a rugged, hard working machine. With tough but lightweight alloys used for main engine parts, an extra tough crankshaft and an overall simplified structure the WDPOWERS is a compact package of power.
Fast, effortless starts from a one-pull recoil starter A short and smooth pull of the toggle kicks off the engine, as simple as a gasoline model. It is made easy by a special auto-return decompressor and own efficient combustion system. Electric starting is also a used full option
F SERIES DIESEL ENGINE TECHNICAL FEATURES COMPARISON & AGGREGATION | ||||||||||||||||||
Model | 170F | 170F-2 | 170FB | 173 | 178F | 178F-2 | 186F | 186F-2 | 188F | |||||||||
Type | Single-cylinder,vertical,air-cooled,4-stroke,direct injection | |||||||||||||||||
Bore×Stroke (mm) | 70×55 | 70×57 | 70×59 | 73x59 | 78×62 | 78×64 | 86X70 | 86X72 | 88X75 | |||||||||
Displacement(cc) | 211 | 219 | 227 | 247 | 296 | 306 | 406 | 418 | 456 | |||||||||
Compression ratio | 22:01 | 21:01 | 21:01 | 22:01 | 21:01 | 21:01 | 19:01 | 19:01 | 22:01 | |||||||||
Rated power | 3.4 | 3.8 | 3.8 | 4.2 | 4.5 | 5 | 4.5 | 5 | 5 | 5.5 | 5.5 | 6 | 7.7 | 8.6 | 8.8 | 9.6 | 9.2 | 10.5 |
Max power | 3.8 | 4.2 | 4.2 | 4.6 | 5 | 5.5 | 5 | 5.5 | 5.5 | 6 | 6 | 7 | 8.6 | 10 | 9.6 | 10.5 | 10.5 | 12 |
Speed (RPM) | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 |
Lubricating system | Pressure splashed | |||||||||||||||||
Starting system | Recoil starter/Electric starter | |||||||||||||||||
Cooling system | Forced air(强制风冷) | |||||||||||||||||
Power take off (PTO) | Crankshaft (曲轴) | |||||||||||||||||
Rotation direction | Anticlockwise(逆时针方向)(Face to the Power Output Axle) | |||||||||||||||||
Fuel type | Diesel Oil:0# 10# 22# | |||||||||||||||||
Fuel tank capacity | 2.5L/0.66Gas | 3.5L/0.92Gal | 5.5L/1.45Gal | |||||||||||||||
Fule consumption | 209 | 218 | 207 | 216 | 207 | 216 | 207 | 216 | 206 | 215 | 205 | 213 | 206 | 215 | 200 | 208 | 272 | 280 |
Lube oil type | CD grade or SAE 10W-30, 15W-40 | |||||||||||||||||
Lube oil capacity | 0.75L/0.20Gas | 1.1L/0.29Gal | 1.65L/0.44Gal | |||||||||||||||
Battery capacity (VAh) | 12V 0.8kW | |||||||||||||||||
Charging genset apacity | 12V 3A | |||||||||||||||||
Battery capacity | Above 12V 17Ah | Above 12V 20Ah | ||||||||||||||||
Meas/Dim. | 430X370X465 (L×WxH) mm | 480X450X525 | 525X470X565 (L×W×H)mm | |||||||||||||||
Net weight(kg) | 27 / 30.5 | 27 / 30.5 | 28 / 31.5 | 28 / 31.5 | 33/36.5 | 33/36.5 | 48/51.5 | 48/51.5 | 48/51.5 |
