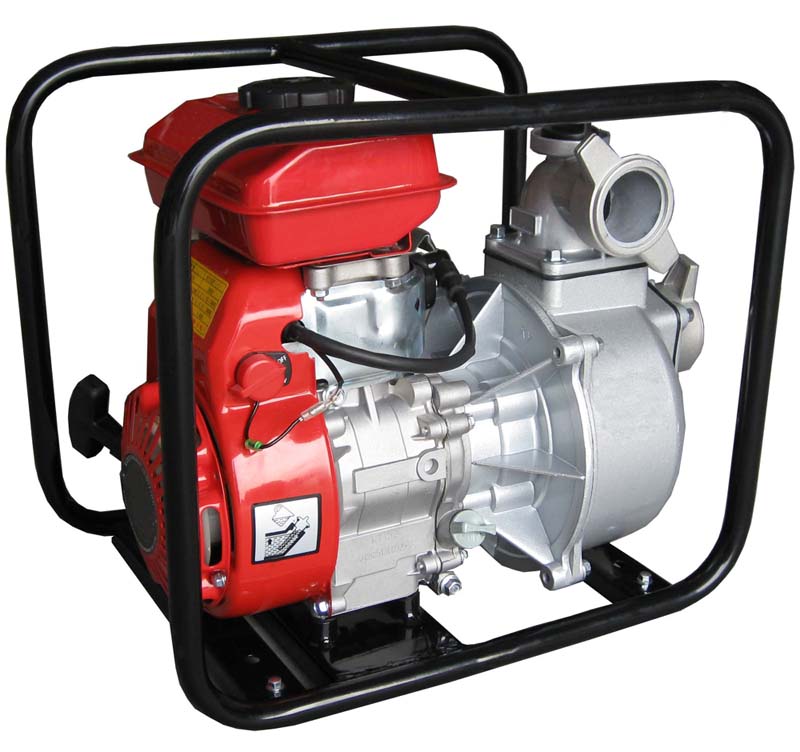

Kerosene Engine 152F with 2 inch pump

Product Description

1) Powered by  strong four-stroke kerosene engines
2) Mechanical sealed equipment, safe running
3) Easy maintenance and wide application
4) Full fram protection greatly reduces vibration
5) Featured by easy starting, simple operation
6) One year warranty with spare parts





  1. Features
  2. Specs

 A centrifugal pump is a rotodynamic pump that uses a rotating impeller to increase the pressure and flow rate of a fluid. Centrifugal pumps are the most common type of pump used to move liquids through a piping system. The fluid enters the pump impeller along or near to the rotating axis and is accelerated by the impeller, flowing radically outward or axially into a diffuser or volute chamber, from where it exits into the downstream piping system. Centrifugal pumps are typically used for large discharge through smaller heads.
 1) Compact structure, easy to transport;
 2) fuel-efficiency, low-noise, structural durability;
 3) high power, easy to operate;

Engine Modelkerosene engine 152F
Engine TypeSingle-cylinder, four-stroke, air-cooled
Bore X Stroke (mm) 52x46
Ignition systemNon-contract Transistorized Ignition
Starting systemRecoil starter
Displacement97.7
Suction Port Diameter (mm/inch)50/2
Discharge Port Diameter (mm/inch)50/2
Suction Head (m)8
Lift Head (m)30
Maximum Capacity (M3/h)36
Pump StyleSelf-absorbing
Fuel Tank Capacity/oil Capacity (L)1.4/0.4
Rated Output HP (KW)2.2(1.15)
Max Output Hp (KW)3(2.0)
Max Torque (N.m/rpm)3.8/3000
Engine Speed Rpm3600
N.W/G.W(KG)26/27
