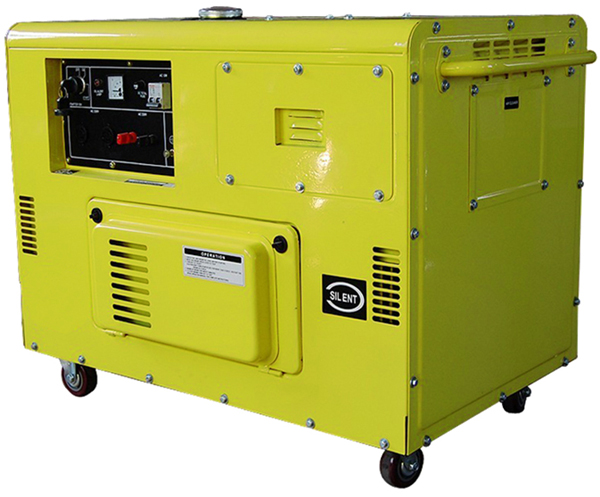

RussianWD-12000SL （new ）
 |
Product Description
|
- Features
- Specs
Lightweight Portable Generator Power
The alternator is connected directly to the engine, eliminating the flywheel as in traditional sets.
This design results in a 50% reduction in weight and overall dimensions. Electric power is made
available to a wide range of applications
Certification
WDPOWER gensets have received CE、UL、CETL、 certifications
A Wide Range of Benefits
In addition to clean, quiet, and efficient power, WDPOWER offers superior overload and low oil level protection.
The unique Smart Throttle automatically varies the engine speed according to the load, resulting in lower
fuel consumption and less engine noise. Using 20 to 40% less fuel than a conventional set results in a
longer running time.
Great Model Lineu
WDPOWER offers a number of generators with output to match your particular application
| Generator Model | WD-12000SL WD-12000SL-3 |
| Rated frequency (Hz) | 50 60 50 60 |
| Rated output(KW) | 10 11 10 11 |
| Max. ouput (KW) | 11 12 11 12 |
| Rated voltage (V) | 230/240V, 400/416 (For option) |
| Rated current (A) | 36.9A 39.6A 13.7A 14.6A |
| Rated speed (r/min ) | 3000 3600 3000 3600 |
| Phase NO. | Single phase Three phase |
| Power factor （cosφ） | 1 1 |
| Insulation grade | B B |
| Pole number | 2 (According requirement ) |
| Excitation mode | Self-Excitation and constant voltage(AVR) |
| panel type | General Panel |
| Volage (V) | 220V,230V,240V,220/110V,240/120V (For option) |
| Receptacle (mm) | Two receptacles (option) |
| Connection pole | Without |
| DC12V output | Connection pole output |
| Overall dimension:L×W×H(mm) | 1180*720*820 1180*720*820 |
| Net weight (Kg) | 245kgs 245kgs |
| Gross weight(Kg) | 255kgs 255kgs |
| Noise Level(7M) db(A) | 72dB(A) 72dB(A) |
| Structure type | Silent type with soundproofing canopy |
| Engine Model | 292F |
| Engine type | two-cylinder,Vertical,four-storke,direct injection |
| Bore×stroke(mm) | 92*75 92*75 |
| Displacement | 997 997 |
| Rated power(hp/r/min) | 163./3000 17.6/3600 16.3hp 17.6hp |
| Compression ratio | 20.5:1 20.5:1 |
| Rated rotation speed | 3000 3600 3000 3600 |
| lgnition system | - |
| Cooling system | Air cooled |
| Lubrication system | pressure splashed |
| Starting system | Electric Starter |
| Fuel type | 0#(summer)-10#(winter)-20#(chillness)disel |
| Lube oil Brand | CDgrade or SAE10W-30,15W-40 40CC |
| Capacity of cooling Water(L) | Without |
| Lube capacity (L) | 2.75L 2.75L |
| Starting motor capacity (V-kW) | 12V 2.0kW 12V 2.0KW |
| Charging generator capacity (V-A) | 14V 23A 14V 23A |
| Battery capacity(V-Ah) | 12V 36Ah 12v 36ah |
| Fuel consumption (g/kW·h) | 270 290 270 290 |
| Fuel tank capacity (L) | 50L 50L |
