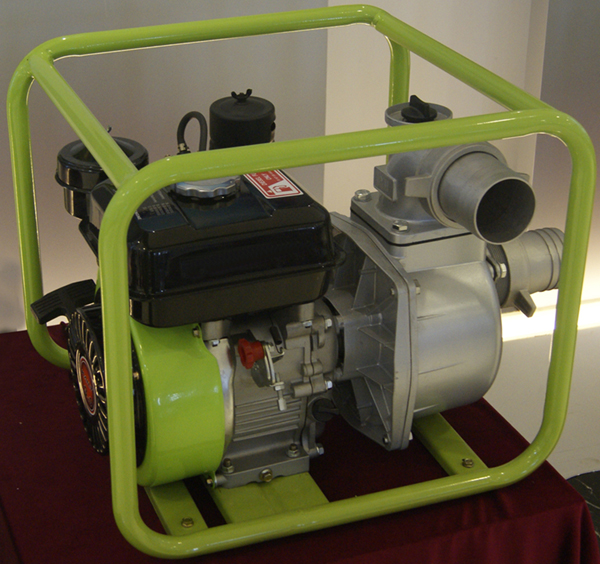

RussianDiesel Water Pump 3 inch with 168F hot sale
 |
Product Description
|
- Features
- Specs
* WdPower Series diesel water pumps are new single self-suction centrifugal pumps
* which are designed and manufactured by its technology imported from foreign.
* The pump body is assembled with aluminium alloy high pressure casting.
* They can serve as hydraulic pump, bilge pump, irrigation pump, water well pump,sprinkler pump and infusion pump etc
| Model | DWP80-30 |
| Suction Diameter | 3 inch (80mm) |
| Discharge Diameter | 3 inch (80mm) |
| Max.Capacity (m3/hr.) | 30 |
| Max.Head: | 20m |
| Suction Lift: | 7m |
| Self-Priming time: | 120S |
| Max Speed: | 3600rpm (adjustable) |
| Engine Model | 168F |
| Type | OHV Single-cylinder、vertical、air-cooled、4-stroke、direct injection |
| Bore×Stroke (mm) | 68*54 |
| Displacement(cc) | 196 |
| Compression ratio | 22:01 |
| Rated power/ Rated speed (Hp/r/min) | 3.0/3000 3.3/3600 |
| Max power/ Max speed (Hp/r/min) | 3.3/3000 3.6/3600 |
| Lubricating system | Pressure splashed |
| Starting system | Recoil starter/Electric starter |
| Fuel type | 0#、-10#、-20# diesel |
| Fuel tank capacity (L)/(Gal) | 2.5L / 0.66Gal |
| Fuel consumption (g/hp.h/r/min) | 315/3000 320/3600 |
| Lube oil type | CD grade or SAE 10W-30, 15W-40 |
| Lube oil capacity (L) | 0.7L / 0.184Gal |
| Starting motor capacity (V、kW) | 12V 0.8kW |
| Charging generator capacity (V、A) | 12V 3A |
| Battery capacity (V、Ah) | Above 12V 20Ah |
| Overall dimension（L×W×H）mm | 495*405*415 |
| N.W / G.W(kg) | ≤33kgs / 35kgs |
