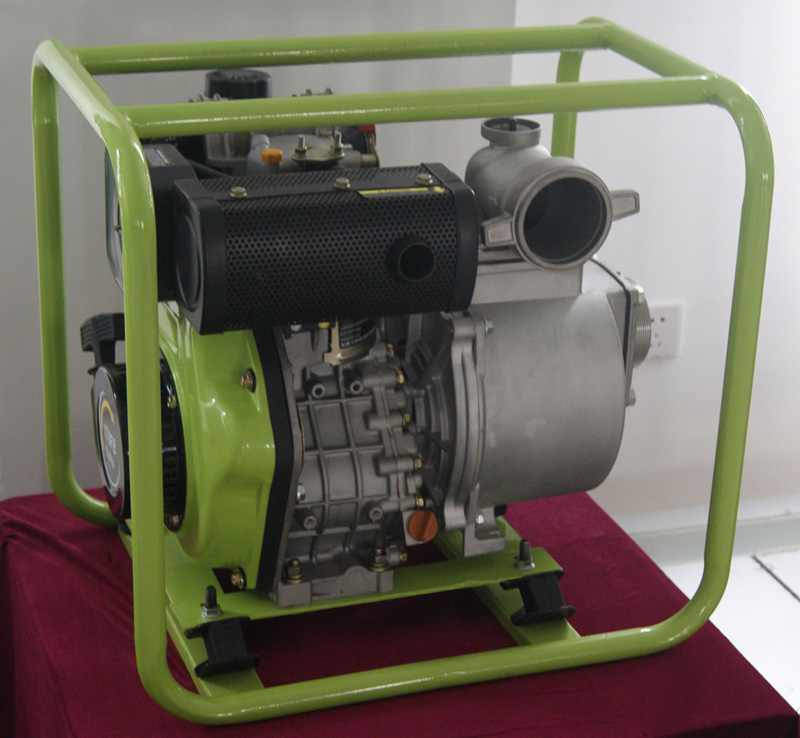

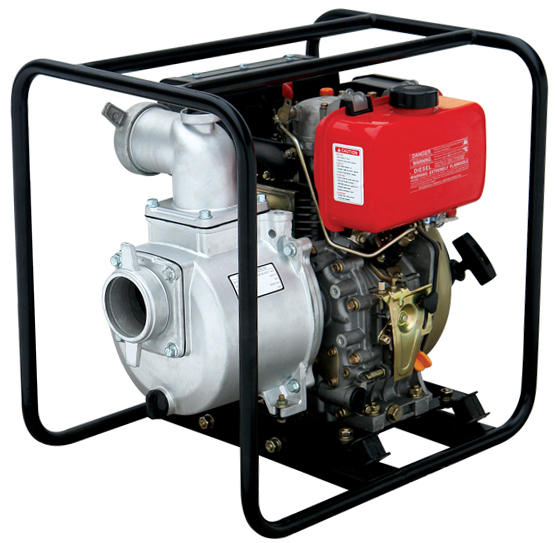

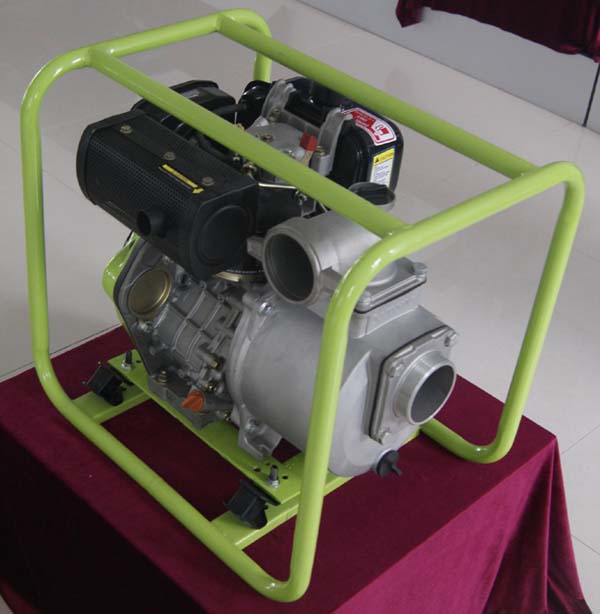

RussianDiesel Water Pump, 3 inch DWP80BC hot sale
 |
Product Description
|
- Features
- Specs
* WdPower Series diesel water pumps are new single self-suction centrifugal pumps
* which are designed and manufactured by its technology imported from foreign.
* The pump body is assembled with aluminium alloy high pressure casting.
* They can serve as hydraulic pump, bilge pump, irrigation pump, water well pump,sprinkler pump and infusion pump etc
..
同泰am
| Model | DWP80BC |
| Suction Diameter | 3 inch (80mm) |
| Discharge Diameter | 3 inch (80mm) |
| Max.Capacity (m3/hr.) | 60 |
| Max.Head: | 25m |
| Suction Lift: | 8m |
| Self-Priming time: | 120S |
| Max Speed: | 3600rpm (adjustable) |
| Engine Model | 170FB |
| Type | OHV Single-cylinder、vertical、air-cooled、4-stroke、direct injection |
| Bore×Stroke (mm) | 70X59 |
| Displacement(cc) | 227 |
| Compression ratio | 22:01 |
| Rated power/ Rated speed (Hp/r/min) | 4.5/3000 5.0/3600 |
| Max power/ Max speed (Hp/r/min) | 5.0/3000 5.5/3600 |
| Lubricating system | Pressure splashed |
| Starting system | Recoil starter/Electric starter |
| Fuel type | 0#、-10#、-20# diesel |
| Fuel tank capacity (L)/(Gal) | 2.5L/0.66Gal |
| Fuel consumption (g/hp.h/r/min) | 206/3000 215/3600 |
| Lube oil type | CD grade or SAE 10W-30, 15W-40 |
| Lube oil capacity (L) | 0.75L/0.198Gal |
| Starting motor capacity (V、kW) | 12V 0.8kW |
| Charging generator capacity (V、A) | 12V 3A |
| Battery capacity (V、Ah) | Above 12V 20Ah |
| Overall dimension（L×W×H）mm | 565X455X540 |
| Dry weight(kg) | ≤43（Recoil starter） ≤45.5（Electric starter） |
