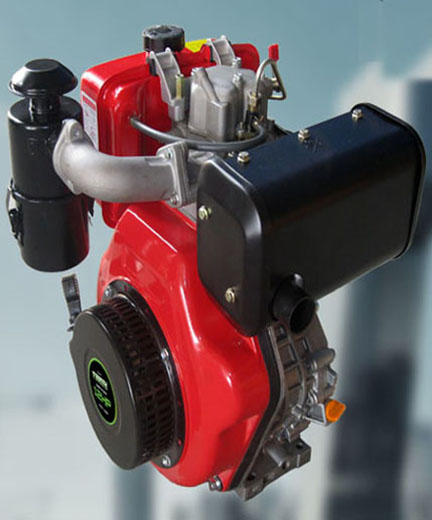

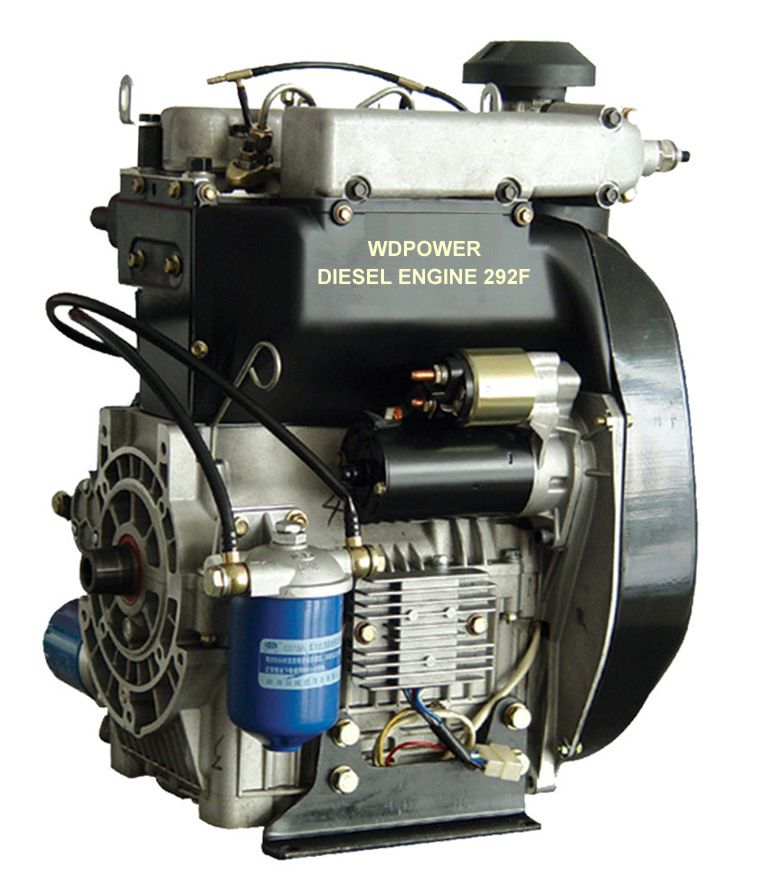

WD292F ( 292F )(New)

Product Description

* External independent push rod mechanism
* Expanded cylinder bore and stroke
* A minimized fuel injection system&low fuel consumption
* A new air filter mechanism and manual start mechanism
* the miniaturized fuel injection system
* Low fuel consumption
* Lightweight and compact design
* Easy and fast starting
* Stand up the hard work
* Recoil or electric starting

  1. Features
  2. Specs

Air-cooled,2-cylinder, Four-stroke,direct injetion

Straight-line cylinder body
Simple and compact structure of cylinder body, cylinder head, and crankshaft
Excellent characteristics at low speed torque
Low fuel consumption
Environment-Friendly
Direct injection combustion chamber with P series nozzles not only boosts power but also reduces emissions and smoke.
Low exhaust emissions meet EPA II standard.
Low Vibration and Low Noise
WDPOWER’s constant technical innovation achieves the target of superior vibration and noise reduction
Low vibration and noise makes operators feel comfortable even after long hours of operation.
Easy Start, Light Weight, and Small Size Dimension
Two kinds of easy starting system: recoil and electric
Lightweight alloys used for main engine parts
A small-sized engine body built for application in a strict environment
Wide Application Range
For gensets
For pump groups
For agricultural machinery
Improvements
Useful option: application of recoil starter or electric starter depending on customer requirements
Impressive achievement: a combination mode of pressure and splash lubrication

ModelWD292F  ( 292F )
TypeAir-cooled,Two-cylinder,vertical,4-stroke,direct injection
Bore×Stroke (mm)92X75
Displacement(cc)997
Compression ratio20.5:01
Rated power/ Rated speed (Hp/r/min)16.3/3000          17.6/3600
Rated power/Rated speed (Hp/r/min)20.5/3000          22.5/3600
Lubricating systemPressure splashed
Starting systemElectric starter
Rotation direction(face to the output axle)Clockwise
Fuel type0#、-10#、-20# diesel
Fuel tank capacity (L)7.0/1.85
Fuel consumption/related rotation speed (g/hp.h/r/min)270/3000           290/3600
Lube oil typeCD grade or SAE 10W-30, 15W-40,40CC
Lube oil capacity (L)2.75L
Starting motor capacity (V、kW)12V       2.0kW
Charging generator capacity (V、A)14V       23A
Battery capacity (V、Ah)Above 12V/45  88Ah
Overall dimension(L×W×H)mm582x462x582
Dry weight(kg)  80.0KGS
