RussianTiller Cultivation Model: WD-1WG3.8-100
 |
Product Description
|
- Features
- Specs

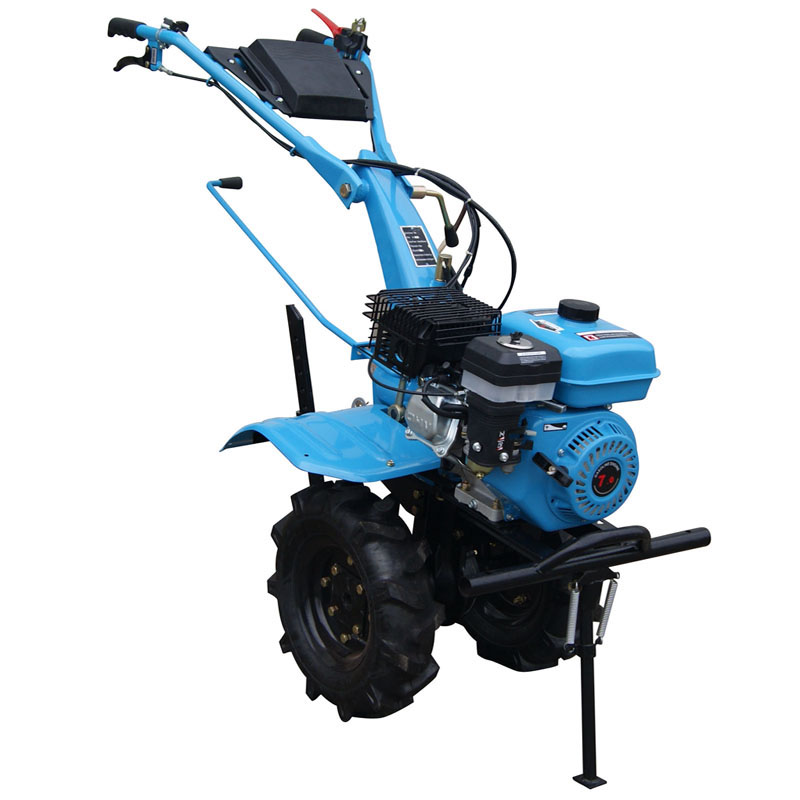

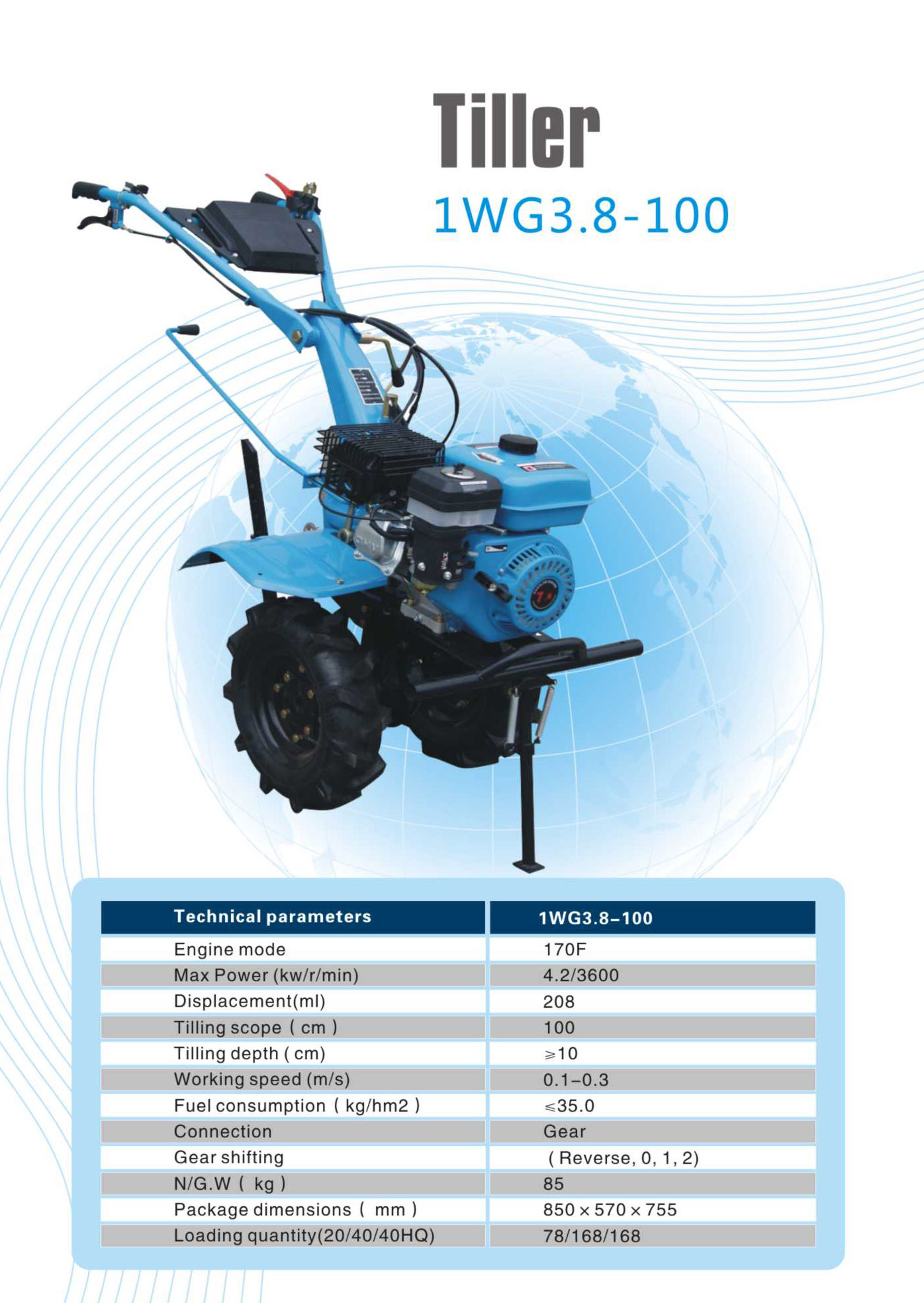

Gasoline Tiller Cultivation : WD-1WG3.8-100
Equipped with 168F Gasoline Engine
Low fuel consumption
Easy carry and wheel
Easy Operation
Furrow width (circle tillage)：1000mm
Furrow Depth(circle tillage): ≥100mm
Work efficiency (hm2/h.m) : ≥0.04 .
Optional:
1).Plastic or Iron Engine Hood
2).400-10,500-10,500-12 Tires
3).Power Tiller with Sprayer pump
4).Power Tiller with Water pump
5).One or two lights

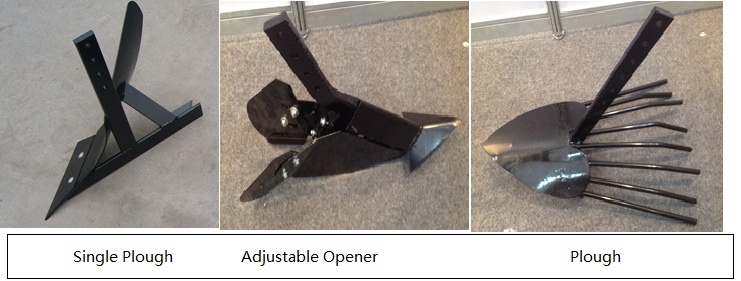

6).All kinds of Power Tiller blades
| Model | WD-1WG3.8-100 | |
| Tiller Width | 100 cm | |
| Tiller Depth | Over 10 cm | |
| Reverse Speed | 3.7 km/h | |
| Driving Speed | Slow:5.5km/h Fast: 8.5km/h | |
| Tiller | Working Speed | 0.1-0.3 m/s |
| Efficiency | Efficiency Per Hour | Over 400 m2/h |
| Fuel Consumption | Less 1.9 kg/h | |
| Blade Revolutions | Fast :137 r/min Slow : 115r/min | |
| Blade Gyration Radius | Less 180mm | |
| Engine | Engine Model | Gasoline Engine 170F |
| Engine Type | Single Cylinder 4-stroke air-cooled OHV overhead valve 250 | |
| Max Power | 3.8KW | |
| Fuel Tank Capacity | 3.6L | |
| Bore X Stroke | 68mmX54mm | |
| Displacement | 196CC | |
| Starting System | Recoil or Electric Start need a battery Extra | |
| Transmission | Material of Gearbox and Transmission | Die Casting Aluminum Alloy and Iron |
| System | Gearbox Transmission type | Gear |
| Engine driving type | Direct Gear Connecting | |
| Handle | Direction Adjust (U,D,L,R) | Grinding Gear Teeth : Up, Down, Left, Right |
| Emergency Stop System (ESS) | With ESS Function | |
| Shift | Clutch Type | Friction Plate Clutch |
| System | Shift Type | Direct Gear Shifting |
| Gear Shifting (Optional) | 2 Forward ,fast slow ,1 Neutral ,1 Reverse | |
| Blade | Blade Type (Standard Configuration) | Dry land Blades |
| And | Blade Quantity (pcs) | 3 group of 4 blades,24PCS |
| Wheel | Wheel Model ( optional ) | 4.00-8 , ,5.00-10, 5.00-12 |
| Packing | N.w / G.w | 85kgs/88kgs |
| and | Dimensions(мм) | 850x570x755 |
| Dimension | Packing and Container q'ty | 20Fcl/78pcs 40FCL/168pcs |
