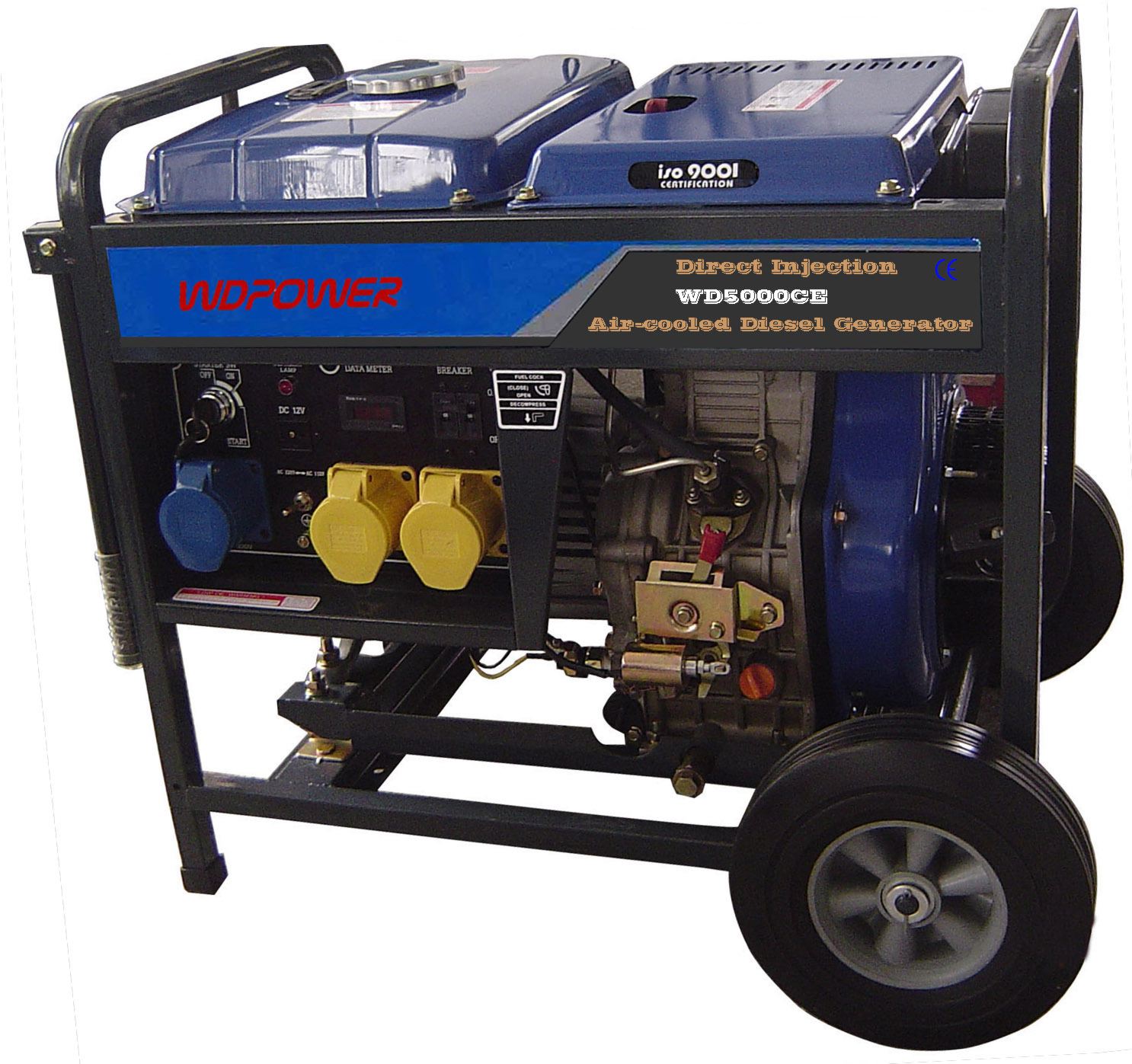

RussianWD-5000CLE3
 |
Product Description
|
- Features
- Specs
Lightweight Portable Generator Power
The alternator is connected directly to the engine, eliminating the flywheel as in traditional sets.
This design results in a 50% reduction in weight and overall dimensions. Electric power is made
available to a wide range of applications
Certification
WDPOWER gensets have received CE、UL、CETL、 certifications
A Wide Range of Benefits
In addition to clean, quiet, and efficient power, WDPOWER offers superior overload and low oil level protection.
The unique Smart Throttle automatically varies the engine speed according to the load, resulting in lower
fuel consumption and less engine noise. Using 20 to 40% less fuel than a conventional set results in a
longer running time.
Great Model Lineup
WDPOWER offers a number of generators with output to match your particular application
| Generator Model | WD-5000CLE3 |
| Rated frequency (Hz) | 50 60 |
| Rated output(kVA) | 4.8 5.5 |
| Max. ouput (kVA) | 5.5 6.0 |
| Rated voltage (V) | 230/400 240/416 |
| Rated current (A) | 6.9 7.9 |
| Rated speed (r/min ) | 3000 3600 |
| Phase NO. | Three phase |
| Power factor （cosφ） | 0.8(lag) |
| Insulation grade | B |
| Pole number | 2 |
| Excitation mode | Self-Excitation and constant voltage(AVR) |
| panel type | General Panel |
| Volage (V) | 230/400 240/416 |
| Receptacle (mm) | Two receptacles |
| Connection pole | Without |
| DC12V output | Connection pole output |
| Overall dimension:L×W×H(mm) | 720×492×655 |
| Dry weight (Kg) | C:95 E:100 |
| Working assorting weight(Kg) | C:110 E:115 |
| Noise Level(7M) db(A) | 77 |
| Structure type | Open frame |
| Engine Model | 186F |
| Engine type | single-cylinder,Vertical,four-storke,direct injection |
| Cylinder NO,-bore×stroke(mm) | 1-86×70 |
| Displacement | 406 |
| Rated power[kW(Hp)/(r/min)] | 5.6/3000 6.6/3600 |
| Compression ratio | 19:01 |
| Rated rotation speed | 3000 3600 |
| lgnition system | - |
| Cooling system | Air cooled |
| Lubrication system | pressure splashed |
| Starting system | C:Recoil E:Electric Starter |
| Fuel type | 0#(summer)-10#(winter)-20#(chillness)disel |
| Lube oil Brand | CDgrade or SAE10W-30,15W-40 |
| Capacity of cooling Water(L) | Without |
| Lube capacity (L) | 1.1 |
| Starting motor capacity (V-kW) | 12V 0.8kW |
| Charging generator capacity (V-A) | 12V 3A |
| Battery capacity(V-Ah) | 12V 36Ah |
| Fuel consumption (g/Hp·h) | ≤201 ≤210 |
| Fuel tank capacity (L) | 13.5 |
| Continuous running time (hr) | 11 |
