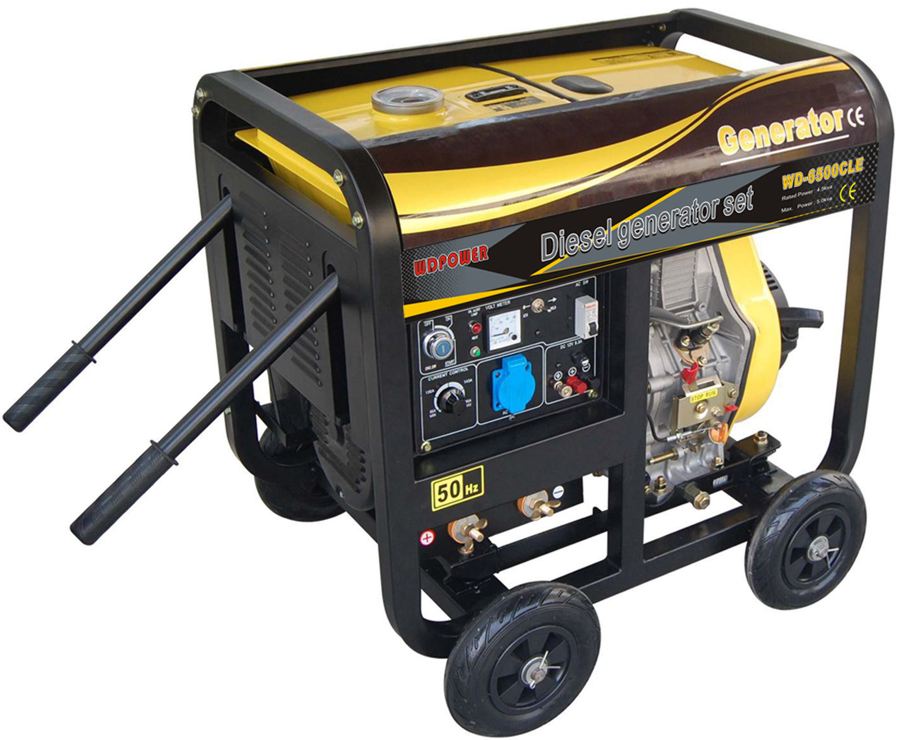

WD-6000CLE3 hot sale
- Features
- Specs
Strong Power
All generator sets are equipped with WDPOWER four-stroke engines
Low Noise Running
High effective combustion system ensures complete combustion, Besides, a large silencer dampens exhaust noise and engine sounds which are contained by a double-wall structure and absorbed by a liner.
Digital Control Panel
All the control units of the generator sets are on one panel, a monitor of the panel will display the real-time working data of the generator set such as its output voltage and current etc. Besides, the running trouble of the generator will also be displayed on the panel
Low Oil Alarm System
Before the oil level drops to the limited level, the generator set will stop automatically. The whole set can be restarted only if the oil is refilled.
Application of New AVR
The AVR (Automatic Voltage Regulator) not only can smooth the output but also can provide reasonable protection against the overload of the whole set, thus avoid damage to the set.
Advanced Alternator Winding
Waveform distortion is kept at a minimum level and the output is stable. The winding design
protects the generator from short circuits and provides a stable output while running inductive loads.
Certification
WDPOWER gensets have received CE、UL、CETL、 certifications
A Wide Range of Benefits
In addition to clean, quiet, and efficient power, WDPOWER offers superior overload and low oil level protection.
The unique Smart Throttle automatically varies the engine speed according to the load, resulting in lower fuel consumption and less engine noise. Using 20 to 40% less fuel than a conventional set results in a longer running time
Great Model Lineup
WDPOWER offers a number of generators with output to match your particular application
ATS (Automatic Transfer Switch)
On the inheriting of the original general-purpose generator set, WDPOWERS diesel generator sets with digital control panel can be equipped with a made ATS(automatic transfer switch). ATS, in its preset intervals, can automatically check and monitor the running of the genset to ensure the genset in good working condition. Meanwhile, ATS will monitor the utility power, if utility power fails or the voltage and frequency
of the utility power become abnormal, ATS will give commands to start the genset automatically
Model | WD-6000CLE3 |
Rated frequency (Hz) | 50 60 |
Rated output (kVA) | 5.5 6.3 |
Max. output (kVA) | 6.0 7.0 |
Rated Voltage (V) | 230/400 240/416 |
Rated current (A) | 7.9 8.7 |
Rated rotation speed (r/min) | 3000 3600 |
Phase NO. | Three-phase |
Power factor (Cos Φ) | 0.8(lag) |
Insulation Grade | B |
Pole number | 2 |
Excitation mode | Self-excitation & constant voltage (AVR) |
Panel Type | General Panel |
Voltage (V) | 230/400 240/416 |
Receptacle | One single-phase and one three-phase receptacles |
Connection pole | Without |
DC12V output | Without |
Overall dimension(L×W×H)(mm) | 720X492X655 |
Dry weight(kg) | 100 |
Working assorting weight (Kg) | 115 |
Noise level(7m)dB(A) | 79 |
Structure type | Open frame |
Engine Model | 186FA |
Engine Type | Single cylinder, vertical, four-stroke, direct injection |
Cylinder NO.-bore×stroke (mm) | 1-86×72 |
Displacement (ml) | 418 |
Rated power [KW/(r/min)] | 5.7/3000 6.3/3600 |
Compression ratio | 19:01 |
Rated rotation speed (r/min) | 3000 3600 |
Combustion system | — |
Cooling system | Air cooled |
Lubrication system | Pressure splashed |
Starting system | Electric starter |
Fuel type | 0#(summer)-10#(winter)-35#(chillness)diesel |
Lube oil brand | CD grade or SAE10W-30,15W-40 |
Capacity of cooling water (L) | Without |
Lube capacity (L) | 1.65 |
Starting motor capacity (V-kW) | 12V 0.8kW |
Charging generator capacity (V-A) | 12V 3A |
Battery capacity (V-Ah) | 12V 36Ah |
Fuel consumption (g/kW.h) | ≤360 |
Fuel tank capacity (L) | 13.5 |
Continuous running time (hr) | 6 |
