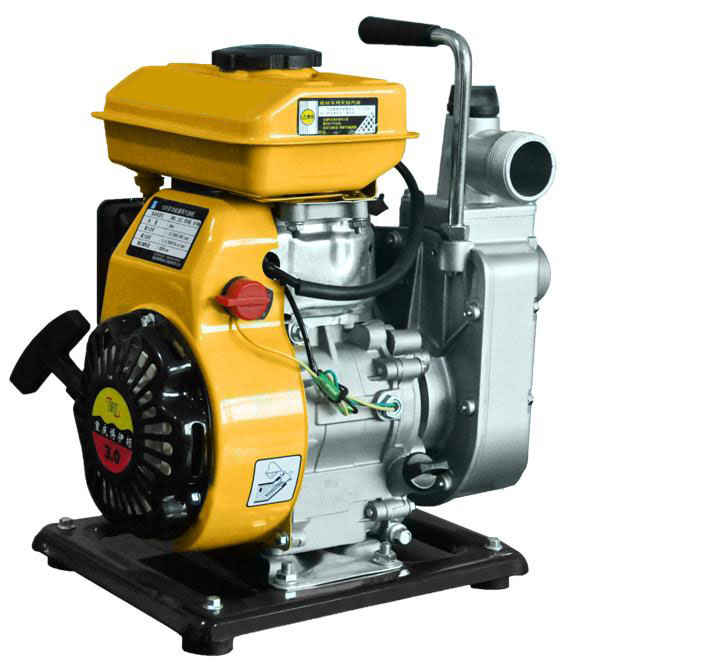

152F Gasoline Water Pump 1.5inch hot sale
- Features
- Specs
A centrifugal pump is a rotodynamic pump that uses a rotating impeller to increase the pressure and flow rate of a fluid. Centrifugal pumps are the most common type of pump used to move liquids through a piping system. The fluid enters the pump impeller along or near to the rotating axis and is accelerated by the impeller, flowing radially outward or axially into a diffuser or volute chamber, from where it exits into the downstream piping system. Centrifugal pumps are typically used for large discharge through smaller heads.
1) compact structure,easy to transport;
2) fuel-efficiency,low-noise,structural durabilities;
3) high power,easy to operate;
机型Model | WP40-25 |
发动机型号Enginge model | 152F |
进水口直径In-pipe diameter | 40mm /1.5” |
出水口直径Out-pipe diameter | 40 mm /1.5” |
扬程Lifting | 25 m |
吸程Scanting | 7 m |
流量Max fiux | 21 m³/h |
额定转速Rated speed | 3600 r/m |
净重/毛重N.W/G.W【kg】 | 12/13 |
包装尺寸Dimension【L×W×H】 | 380X350X330 |
![]() |
