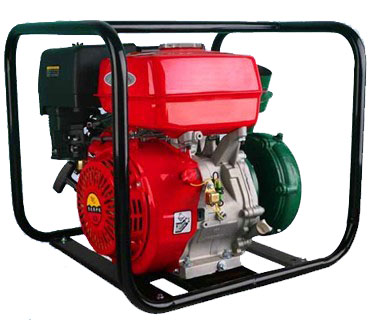

188F-3"Centrifugal High Lifting Water Pump

Product Description

1) Powered by  strong four-stroke gasoline engines
2) Mechanical sealed equipment, safe running
3) Easy maintenance and wide application
4) Full fram protection greatly reduces vibration
5) Featured by easy starting, simple operation
6) One year warranty with spare parts
7) Recoil or electric starting. (Optional )
8) "E” indicate electric starter

  1. Features
  2. Specs

A centrifugal pump is a rotodynamic pump that uses a rotating impeller to increase the pressure and flow rate of a fluid. Centrifugal pumps are the most common type of pump used to move liquids through a piping system. The fluid enters the pump impeller along or near to the rotating axis and is accelerated by the impeller, flowing radially outward or axially into a diffuser or volute chamber, from where it exits into the downstream piping system. Centrifugal pumps are typically used for large discharge through smaller heads.

1) compact structure,easy to transport;
2) fuel-efficiency,low-noise,structural durabilities;
3) high power,easy to operate;

机型ModelWP80-75
发动机型号Enginge model188F
进水口直径In-pipe diameter80 mm /3”
出水口直径Out-pipe diameter80 mm /2.5”
扬程Lifting75 m
吸程Scanting7 m
流量Max fiux40 m³/h
额定转速Rated speed3600 r/m
净重/毛重N.W/G.W【kg】41/43
包装尺寸Dimension【L×W×H】575×530×530
