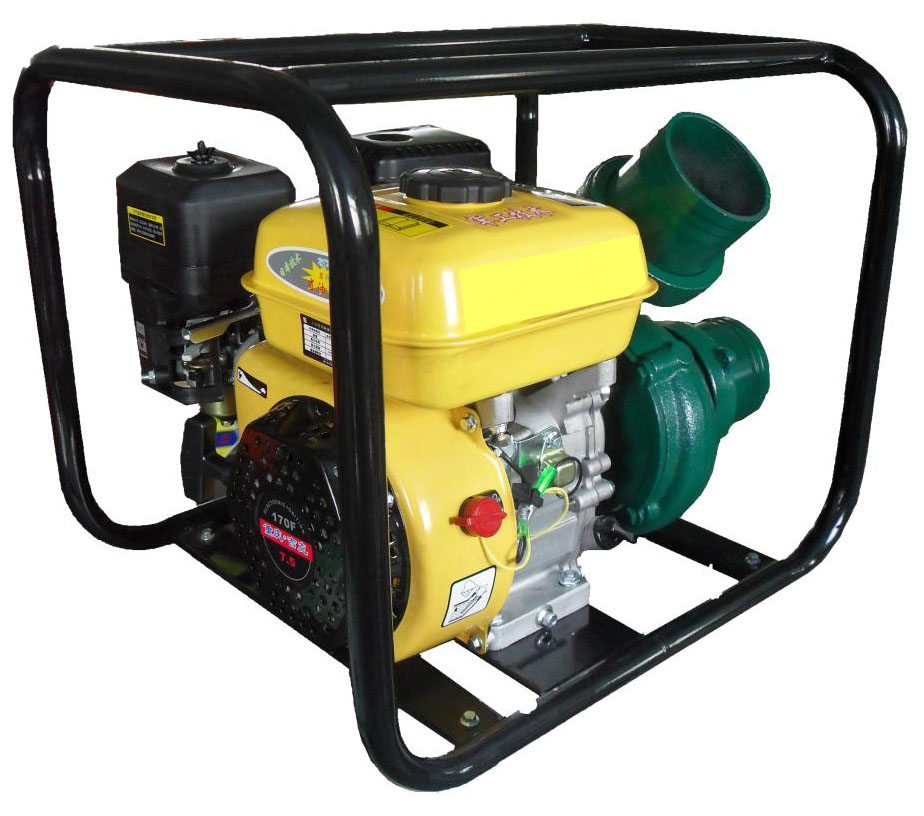

170F-4"Centrifugal Water Pump
- Features
- Specs
A centrifugal pump is a rotodynamic pump that uses a rotating impeller to increase the pressure and flow rate of a fluid. Centrifugal pumps are the most common type of pump used to move liquids through a piping system. The fluid enters the pump impeller along or near to the rotating axis and is accelerated by the impeller, flowing radially outward or axially into a diffuser or volute chamber, from where it exits into the downstream piping system. Centrifugal pumps are typically used for large discharge through smaller heads.
1) compact structure,easy to transport;
2) fuel-efficiency,low-noise,structural durabilities;
3) high power,easy to operate;
机型Model | 100-35 |
发动机型号Enginge model | 170F |
进水口直径In-pipe diameter | 100 mm /4” |
出水口直径Out-pipe diameter | 100 mm /4” |
扬 程Lifting | 35 m |
吸程Scanting | 7 m |
流量Max fiux | 60 m³/h |
额定转速Rated speed | 3600 r/m |
净重/毛重N.W/G.W【kg】 | 41/43 |
包装尺寸Dimension【L×W×H】 | 495×395×420 |
![]() |
