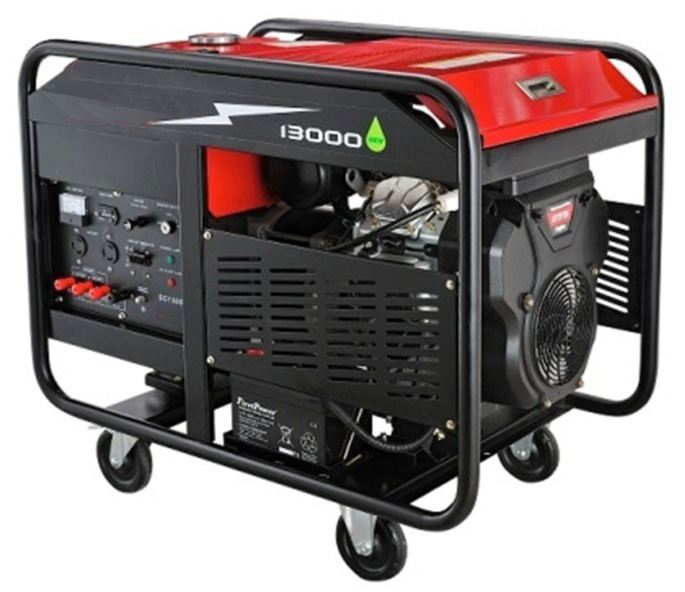

Gasoline Generator 10kw-20kw

Product Description

● Power output form 10kw to 20 kw.
● Easy start. Protable light weight & compact design
● High fuel efficiency & stable output;
● Fuel tank capacity 30L
● Low noise less 78dB
● Easy maintenance.
● CE,CSA,Certificates approved
● Good performance and durability.

Features
Specs

* Coupled with wdpowers superior quality alternator
* Powered by easy-to-start single cylinder gasoline engine ( Briggs&Stratton engine optional)
* Low oil alert protects the generator,shuts down engine auto when low oil is detected.
* Circuit breaker,cuts off electricity system when overloaded .
* New air cleaner,small unique desing,exhausted oil gas combusted in carburetor for the second time
throught a special-designed pipe,free form oozing
* Muffler with spark arrestor,lower noise and more environment-friendly
* AVR (Autoatic voltage regulator) stabilizes the output power
* 4-way wheeled,convinient to carry and move
* Pefect performance with stable running up to 13 hours @50% load, for home or commercial use
* EPA,CARB,CE,ect certificates approved
* Control panel inc. On/off switch,Auto tht\rottle,Choke knob,LED indicator,2 sockets,Ground Terminal
* Capacious fuel tank,supply sufficient fuel for long-time running.
* Electric starter

Generator Model	WD13000		WD18000		WD20000
Frequency (Hz)	50hz	60HZ	50hz	60HZ	50hz	60HZ
Cont.A.C output (Kw)	10kw	11kw	13kw	15kw	15kw	18kw
Max.ont.A.C output (Kw)	12kw	13kw	15kw	18kw	18kw	20kw
Speed (rpm)	3000	3600	3000	3600	3000	3600
Voltage (v)	230	120/240	230	120/240	230	120/240
D.C output (v)	12V 8.3A		12V 8.3A		12V 8.3A
Engine Model	2V78F(22HP)		B&S(31HP)		B&S(35HP)
Displacement(cc)	688CC		896CC		993CC
Type	TWIN-	rcylinde	T.C.I,	4-stroke	OHV,.	air-cooler,
Engine Speed (rpm)	3000	3600	3000	3600	3000	3600
Combustion system	Forced Air
Compression ratio	8.0:1		8.0:1		8.0:1
Starting system	Electric start
Lube oil capacity (L)	1.1L		1.1L		1.1L
Fuel tank capacity(L)	30L		30L		30L
1/2 load continuous running time	13h		13.5h		13.0h
Fullload continuous running time	11h		8.5h		8.5h
Noise lvevk(db)(Zero Loading)	78dB(A		78dB(A)		80dB(A)
Packing and Weight
Dimensions LXWXH (mm)	1010x670x950		1015x670x950		1015x670x950
Net weight (kg)	195kgs		235kgs		255kgs
Loading Q'ty(20GP/40GP/40HQ)	42/86/129		34/70/70		34/70/70
