RussianMini Tiller. Model: WD-1WG3.8-75
 |
Product Description
|
- Features
- Specs

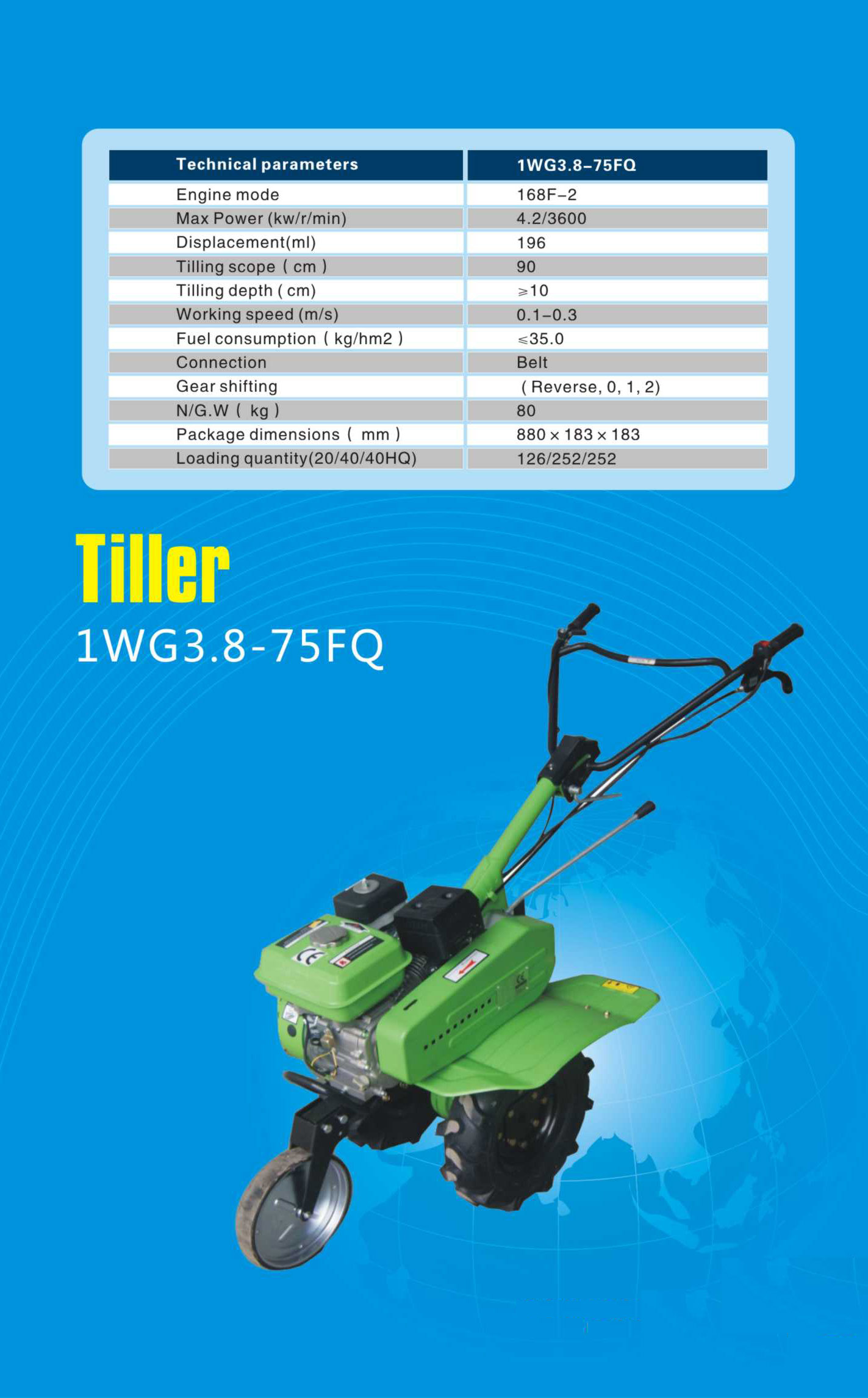

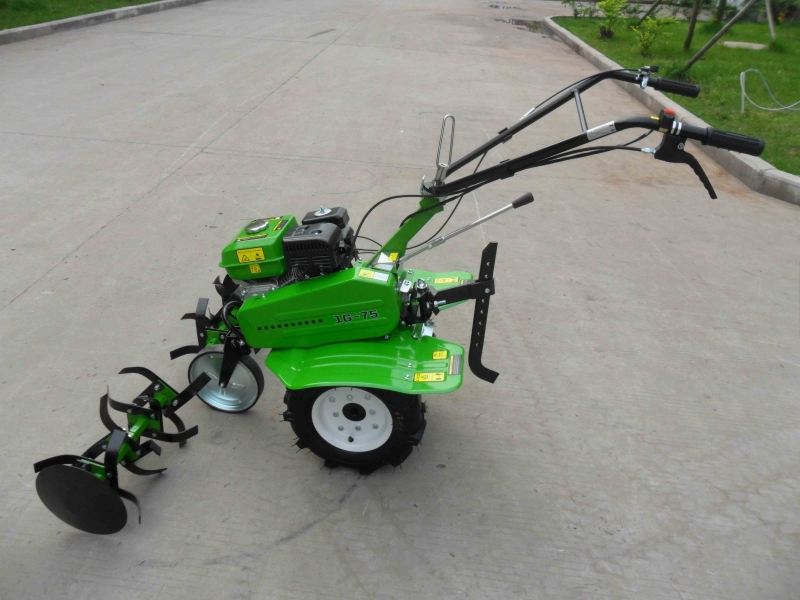

Gasoline engine Mini tiller : WD-1WG3.8-75
Equipped with 168F Gasoline Engine
Low fuel consumption
Easy carry and wheel
Easy Operation
Furrow width (circle tillage)：750mm
Furrow Depth(circle tillage): ≥100mm
Work efficiency (hm2/h.m) : ≥0.04 .
| Model | 1WG3.8-75 | |
| Tiller Width | 75cm | |
| Tiller Depth | Over 10 cm | |
| Reverse Speed | 3.5km/h | |
| Driving Speed | Slow:5.5km/h Fast: 8.5km/h | |
| Tiller | Working Speed | 0.1-0.3 m/s |
| Efficiency | Efficiency Per Hour | Over 300 m2/h |
| Fuel Consumption | Less 35 kg/kw.h | |
| Blade Revolutions | Fast :137 r/min Slow : 115r/min | |
| Blade Gyration Radius | Less 180mm | |
| Engine | Engine Model | Gasoline Engine 6.5HP 196CC or 7HP 212CC |
| Engine Type | Single Cylinder 4-stroke air-cooled OHV overhead valve 250 | |
| Max Power | 4.7 KW or 5.1Kw | |
| Fuel Tank Capacity | 3.6L | |
| Bore X Stroke | 68mmX54mm or 70mmx55mm | |
| Displacement | 196CC or 212CC | |
| Starting System | Recoil or Electric Start need a battery Extra | |
| Transmission | Material of Gearbox and Transmission | Die Casting Aluminum Alloy and Iron |
| System | Gearbox Transmission type | Flexiice belt drive |
| Engine driving type | Belt Pulley | |
| Handle | Direction Adjust (U,D,L,R) | Grinding Gear Teeth : Up, Down, Left, Right |
| Emergency Stop System (ESS) | With ESS Function | |
| Shift | Clutch Type | Friction Plate Clutch |
| System | Shift Type | Direct Gear Shifting |
| Gear Shifting (Optional) | 2 Forward ,fast slow ,1 Neutral ,1 Reverse | |

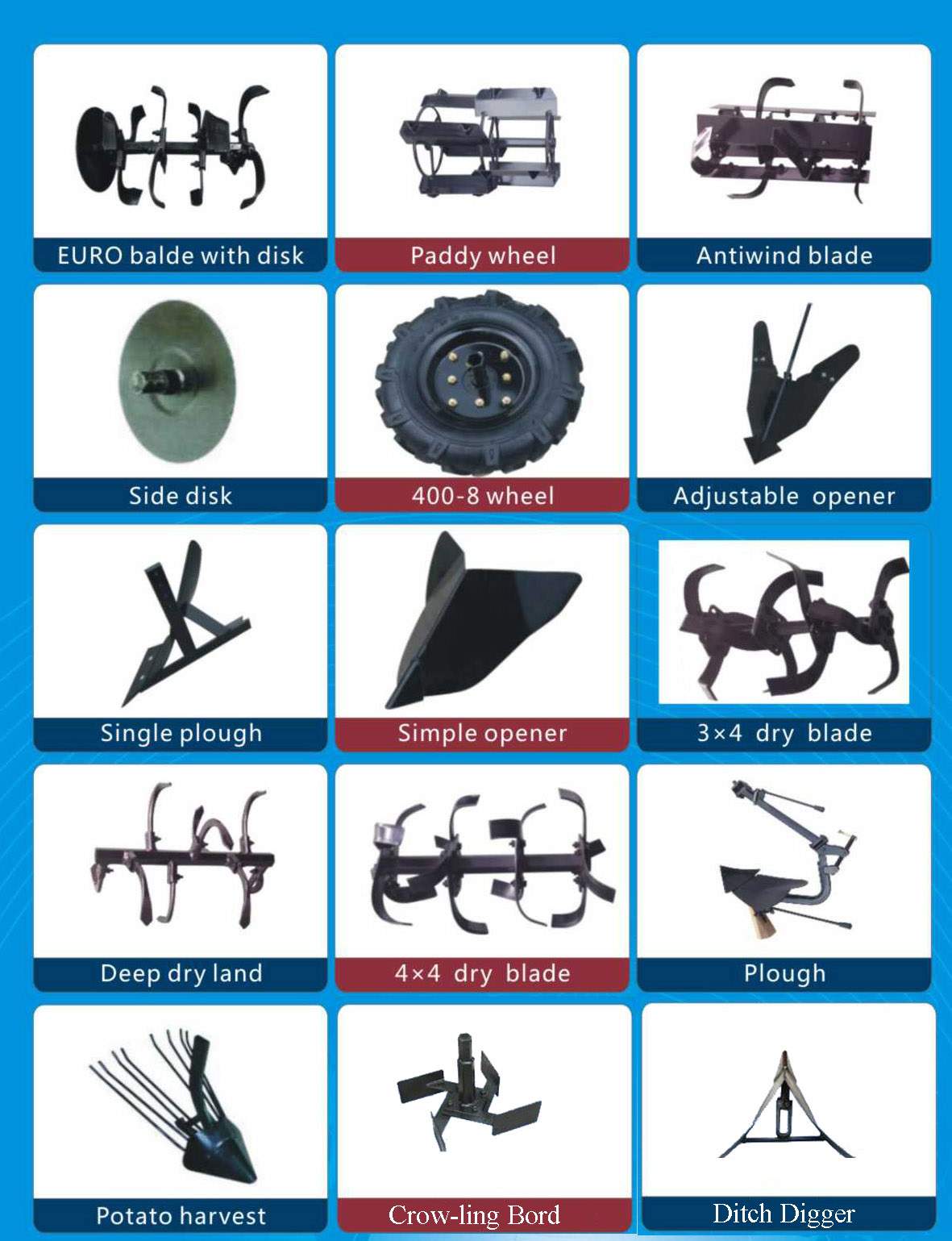

| Blade | Blade Type (Standard Configuration) | Dry land Blades |
| And | Blade Quantity (pcs) | 3 group of 4 blades,24PCS |
| Wheel | Wheel Model ( optional ) | 4.00-8 , |
| Packing | N.w / G.w | 55kgs/58kgs |
| and | Dimensions(mm) | 900mm x 470mm x780mm |
| Dimension | Packing and Container q'ty | 20Fcl/95pcs 40FCL/19pcs |
