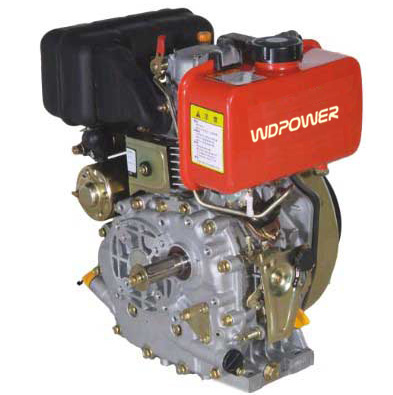

WD170FS ( 170FS)
 |
Product Description
|
- Features
- Specs
Unique Drive System
The drive gear design is incorporated into the latest WdPower diesel engine which will greatly reduce vibration and noise.
Fuel System Technology
Fuel systems assure high efficiency operation.
The precision machined and precisely timed injection pump and the direct-injection design leads to lower fuel consumption and reduced tailpipe emissions. The engine meets current and proposed EPA emission standards.
Advanced Noise-reduce Design
The high efficiency muffler system greatly lowers exhaust noise. With the addition of the advanced design air induction system, intake noise is reduced to a low level. The design or the cylinder block, engine cover, and valve train all combine to reduce engine noise levels
| Model | WD170FS ( 170FS ) |
| Type | Single-cylinder,vertical,air-cooled,4-stroke,direct injection |
| Bore×Stroke (mm) | 70X55 |
| Displacement(cc) | 211 |
| Compression ratio | 20:01 |
| Rated power/ Rated speed (Hp/r/min) | 3.4/1500 3.8/1800 |
| Max power/ Max speed (Hp/r/min) | 3.8/1500 4.2/1800 |
| Lubricating system | Pressure splashed |
| Starting system | Recoil starter/Electric starter |
| Rotation direction(face to the output axle) | Anticlockwise / Clockwise |
| Fuel type | 0#、-10#、-20# diesel |
| Fuel tank capacity (L)/(us.gal) | 3.5/0.92 |
| Fuel consumption/related rotation speed (g/hp.h/r/min) | 209/1500 218/1800 |
| Lube oil type | CD grade or SAE 10W-30, 15W-40, 40CC |
| Lube oil capacity (L)/(us.gal) | 0.75/0.20 |
| Starting motor capacity (V、kW) | 12V 0.8kW |
| Charging generator capacity (V、A) | 12V 3A |
| Battery capacity (V、Ah) | Above 12V 20Ah |
| Overall dimension（L×W×H）mm | 430X370X465 325PCS/20' 650PCS/40' |
| Dry weight(kg) | ≤24.5（Recoil starter）≤27.5（Electric starter） |
