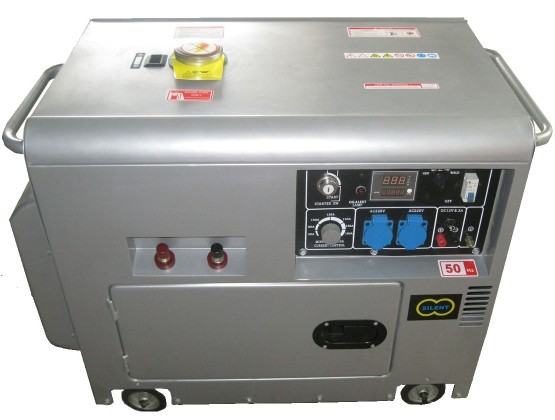

Welding &Genset : WD6500S
- Features
- Specs
Lightweight Portable Generator Power
The alternator is connected directly to the engine, eliminating the flywheel as in traditional sets.
This design results in a 50% reduction in weight and overall dimensions. Electric power is made
available to a wide range of applications
Certification
WDPOWER gensets have received CE、UL、CETL、 certifications
A Wide Range of Benefits
In addition to clean, quiet, and efficient power, WDPOWER offers superior overload and low oil level protection.
The unique Smart Throttle automatically varies the engine speed according to the load, resulting in lower
fuel consumption and less engine noise. Using 20 to 40% less fuel than a conventional set results in a
longer running time.
Great Model Lineup
WDPOWER offers a number of generators with output to match your particular application
Model | WD6500S |
Rated Current (A) | 160 |
Rated Voltage (V) | 25-32 |
Wedling Current Range (A) | 80-180 |
Continous working | S1 |
Applicable electrode (φ ) | 2.0-3.2 |
Phase | Single/Three phases |
Frequency HZ | 50/60 |
Rated output kw | 4.5/5.0 |
Rated Voltage (v) | 110,120,220,230,240/380,400 |
Powerfactor | 1.0/0.8 |
Engine model | 186FA |
Max Output (hp) | 418 |
Starting System | Electric starter |
Lube oil capacity (L) | 1.65/0.44 |
Starting motor capacity (V、kW) | 12V 0.8kW |
Charging generator capacity (V、A) | 12V 3A |
Battery capacity (V、Ah) | Above 12V 20Ah |
Overall dimension(L×W×H)mm | 940x535x760 |
Dry weight(kg) | 175 |
