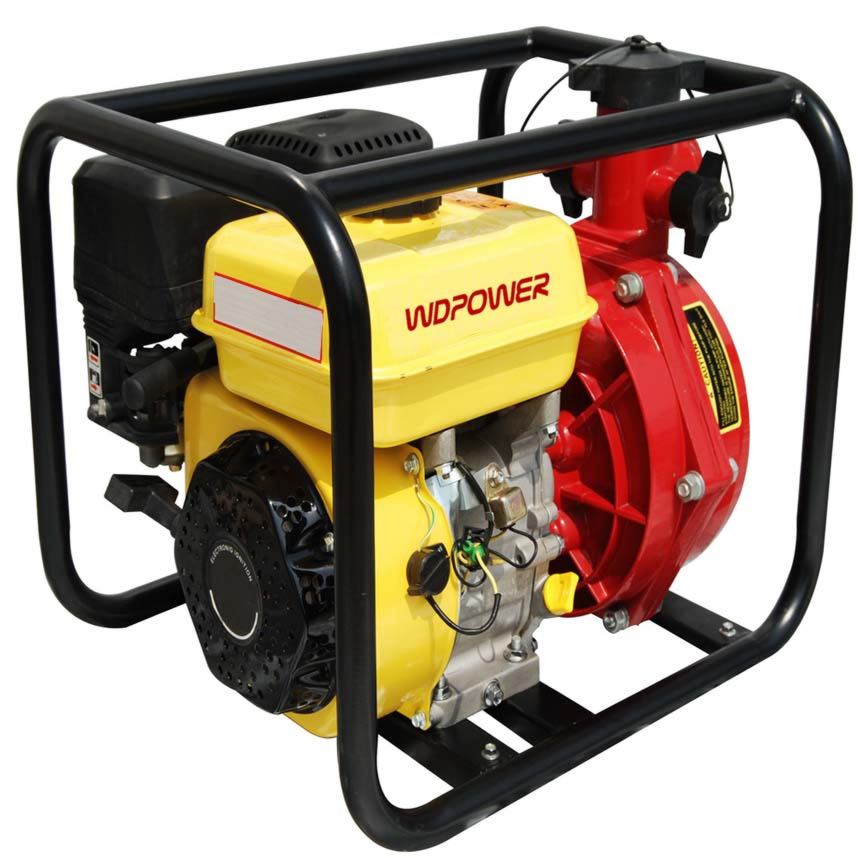

RussianFire Pump: WD-GHP50-2
 |
Product Description
|
- Features
- Specs
Economical Running
Equipped with WDPOWER G series gasoline engines, WDPOWER pumps assure superior combustions efficiency and minimized fuel consumption.
Portability
Adopted special alloy frame, largely reduced the weight and assures simple use.
A Wide Range
Excellent and advanced impeller ensures water supply in a wide range
Durable Construction
The principal parts of each pump are reinforced for superior wear resistance and corrosion resistance.
Easy Maintenance
Cleaning the inside casing can be done simply by just removing a few bolts
| Model | WD-GHP50-2 |
| Suction Diameter | 2 inch (50mm) |
| Discharge Dimeter | 2 inch (50mm) |
| Max. Capacity(M3/h) | 30 |
| Max.Head (M) | 65m |
| Suction lift( M) | 5m |
| Self-priming time (S/4m) | 180 |
| Max Speed | 3600 rpm( adjustable) |
| Engine Model | Gasoline engine WD-G170F |
| Type | Single-cylinder,250,oblique,4-strke air-cooled OHV |
| Bore x Stroke (mm) | 70X54 |
| Displacement (cc) | 208 |
| Compression ration | 8.5 : 1 |
| Rated Power/Rated Speed (Hp/r/min) | 7.5 HP/ 3600 r.p.m |
| Max power /Max speed (Hp/r/min) | 7.0 Hp /3600 r.p.m |
| Lubricating system | Splashed |
| Starting system | Recoil starter/Electric starter (Optional) |
| Fuel type | Automatic unleaded gasoline |
| Fuel tank capacity (L) | 3.7L |
| Fuel consumption(g/hp.h/r/min) | ≤395g/kw.hour |
| Lube oil type | CD grade or SAE 10W-30, 15W-40 |
| Lube oil capacity (L) | 0.6L |
| Starting motor capacity (V、kW) | 12V 0.8KW (Optional) |
| Charging generator capacity (V、A) | 12V 3A |
| Battery capacity (V、Ah) | Above 12V 20Ah (Optional) |
| Overall dimension（L×W×H）mm | 510x 432 x 415 |
| Dry weight(kg) | 29kgs (N.W.) 31kgs (G.W.) |
