RussianFire pump , DHP40
 |
Product Description
|
- Features
- Specs

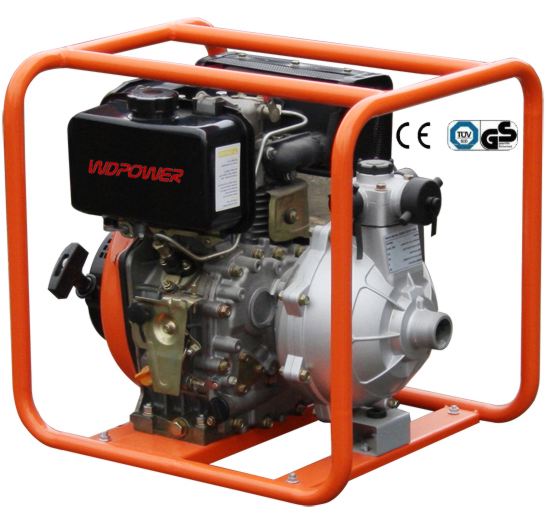

Ø Look no further, WDPOWERS has you covered this fire season with their new Model Diesel Pump. Which include a massive 6hp Direct Injected single cylinder Diesel engine, equipped with electric start and recoil start, decompression valve for easy starting, 2 x 1" outlets for high pressure plus 1 x 1.5" outlet to allow you to transfer water when needed from a dam or water hole, with a Max 80M lift you can access those long distance dams or creeks and be rest assured the WDPOWERS Diesel pump with get it where you need it.
Ø It is easy to see why a Diesel Pump is the obvious choice over a standard 4 stroke unleaded pump when being used in all The Word country Conditions! For one, Diesel has a high ignition point making it a much safer fuel in fire condition, that's why you will not see a fire truck running on a unleaded engine, in hot conditions standard petrol only needs a passing spark and it will ignite even fumes and blow up leaving you without a pump when you need it most.
Ø We have even thrown in a free battery to ensure you get your pump started first time every time, not only that this top of the range pump will even run on BIO DIESEL making it environmentally friendly.
Ø If you are building a new home and require a fire pump? These pumps comply with specifications that are required by councils in size and output and have been given the thumbs up by several RFS outlets.
C High head capacity
C High quality mechanical sea
C Reliable long run quality
C Full frame type
C Easy and fast starting
C Stand up the hard work
C Recoil or electric starting
C The miniaturized fuel injection system
C Low fuel consumption
C Lightweight and compact design
| Model | DHP40 |
| Suction Diameter | 1.5inch (40mm) |
| Discharge Diameter | 1.5inch (40mm) |
| Max.Capacity (m3/hr.) | 20 |
| Max.Head: | 55m |
| Suction Lift: | 6m |
| Self-Priming time(s/4m): | 70s |
| Max Speed: | 3600rpm (adjustable) |
| Engine Model | 178F |
| Type | OHV Single-cylinder、vertical、air-cooled、4-stroke、direct injection |
| Bore×Stroke (mm) | 78x64 |
| Displacement(cc) | 306 |
| Compression ratio | 21:01 |
| Rated power/ Rated speed (Hp/r/min) | 5.8/3000 6.5/3600 |
| Max power/ Max speed (Hp/r/min) | 6.5/3000 7.2/3600 |
| Lubricating system | Pressure splashed |
| Starting system | Recoil starter/Electric starter |
| Fuel type | 0#、-10#、-20# diesel |
| Fuel tank capacity (L)/(US.Gal) | 3.5L/ 0.92Gal |
| Fuel consumption (g/hp.h/r/min) | 206/3000 215/3600 |
| Lube oil type | CD grade or SAE 10W-30, 15W-40 |
| Lube oil capacity (L) | 1.1L/0.29Gal |
| Starting motor capacity (V、kW) | 12V 0.8kW |
| Charging generator capacity (V、A) | 12V 3A |
| Battery capacity (V、Ah) | Above 12V 20Ah |
| Overall dimension（L×W×H）mm | C=570*505*555 L=575*505*655 |
| Dry weight(kg) | ≤44（Recoil starter） ≤46（Electric starter） |
