Main Features

1).True RMS measuring

2).Configuration of parameters by front panel push buttons or communication software

3).RS485，RS232，or USB port for remote communication

4).Configurable fuel output energise to stop or energise to run

5).5 Configurable inputs

6).4 Configurable outputs，2 used for ATS control

7).2 Analogue inputs configurable for different senders for Oil

8).pressure and Engine temperature

9).Push Buttons for manual control of GCR/MCR

for more pls visit: http://www.harseninternational.com/index.asp

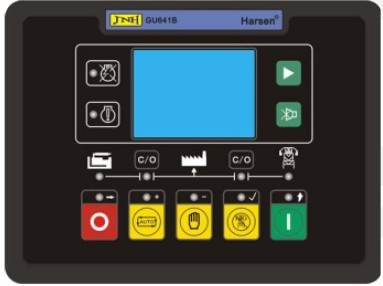

GU641B is a new generation Automatic Mains (Utility) Failure module for single Genset, which adopts bran-new outline configuration, focus on the requirements of customers, and perfectly improves the performance of controller. It fully meets the auto control requirements of different kinds of Genset for user or special assembly factory. The module also monitors and protects the engine, indicating operational status, fault conditions and metering on the front panel LCD and LED.
1. True RMS measure of voltage and current.
2. 2 analog inputs for kinds of optional built-in sensors, parameters also can be configured by user.
3. More outputs of configurable auxiliary control relays.
4. More configurable isolated digital inputs.
5. Buttons on control panel are used for selecting control modes, starting and stopping the operating procedure, displaying data and modifying the parameters. LED indicators are used for indicating the operation mode of controller and the running status of Genset, and LCD displays each measuring parameter and status.
6. Flexible equipped with RS485, RS232 and USB, realizing remote monitor; or communicated with PC, fully realizing functions of remote signaling, telemetering and remote control, can read and set the running parameters of controller.
7. All connections of the controller are by secure plug and socket, for ease and convenience to connect, move, maintain and replace the device.
