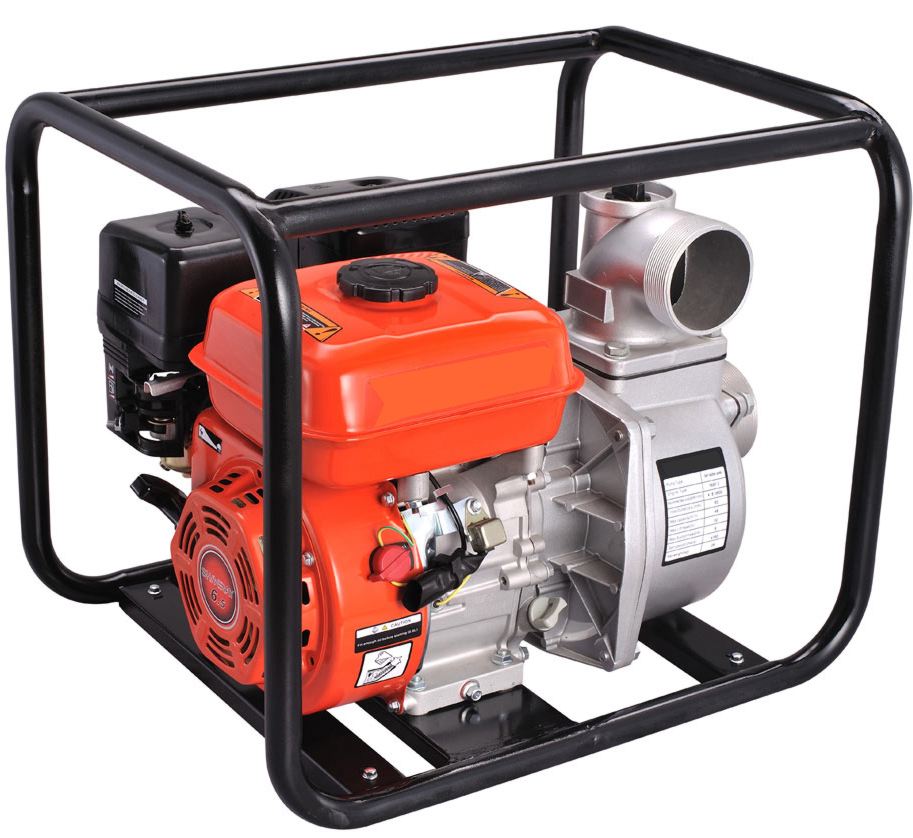

Water Pump,Field Irrigation Expert

Product Description

* Powered by WDPOWER’s strong four-stroke gasoline engines
* Mechanical sealed equipment, safe running
* Easy maintenance and wide application
* Full fram protection greatly reduces vibration
* Famous for sophisticated design and
excellent performance
* Featured by easy starting, simple operation,
low fuel consumption, a longer service life,
low pollution, etc
*One year warranty with spare parts
* Recoil or electric starting. (Optional )
* "E” indicate electric starter

Features
Specs

性能特点：通用型水泵，压铸铝泵体，手抬式框架结构，重量轻，转移方便。
使用于农业地灌溉，池塘给排水，水库输水、城市地下管网疏通等常合，应用广泛。
Specifications:
Economical Running
Equipped with WDPOWER G series gasoline engines, WDPOWER pumps assure superior combustions efficiency and minimized fuel consumption.
Portability
Adopted special alloy frame, largely reduced the weight and assures simple use.
A Wide Range
Excellent and advanced impeller ensures water supply in a wide range.
Durable Construction
The principal parts of each pump are reinforced for superior wear resistance and corrosion resistance.
Easy Maintenance
Cleaning the inside casing can be done simply by just removing a few bolts

chongqing zongshen

机型Model	GP50-32	GP80-30	GP100-30
出水管直径outlet Diameter	50	80	100
进水管直径inlet Dimeter	50	80	100
额定转速 Rated speed r/min	3600	3600	3600
额定流量 Rated flow m³/H	25	38	40
额定扬程Rated lift m	17.5	15	15
最大流量Max.flow m³/H	30	52	60
最大扬程Max.flow m	26	25	25
吸程 Suction m	5	5	5
连续工作时间 continuous workingtime h	2	2	2.2
发动机型号 engine model	168FB	168FA	177F
缸径X行程 Bore X Stroke mm	68X54	68X45	77X58
排量 displacement cc	196	163	270
压缩比 compression ratio	8.5:1	8.5:1	8.2:1
最大输出功率Rated power hp(kw)/(r/min)	5.2(3.8)3600	5.2(3.8)3600	7.9(5.8)3600
最大扭矩 max.torque N.m/(r/min)	8.8/2600	8.8/2600	13.9/2700
燃油容积 fuel volume L	3.6	3.6	6
机油容积 oil volume L	0.6	0.6	1.1
耗油量 fuel consumption g/kw.h	395	395	374
空滤器型式air cleaner type	半干式、油浴、泡沫滤	芯 Semi-dry、oil bath,	foam filer
点火方式Ignition type	晶体管点火	transistor magneto
启动方式start type	手拉绳反冲	启动recoil
发动机型式 engine type	OHV250、单缸、风冷四	冲程 OHV250、single	cylinder aircooling four stoke
外型尺寸Packe dietion mm	505x415x425	525X415X470	635X485X590
净重/毛重 N.W /G.W kg	24.5/26	27/29	45/47
20英尺集装箱数量20ft container load	280	280	180
