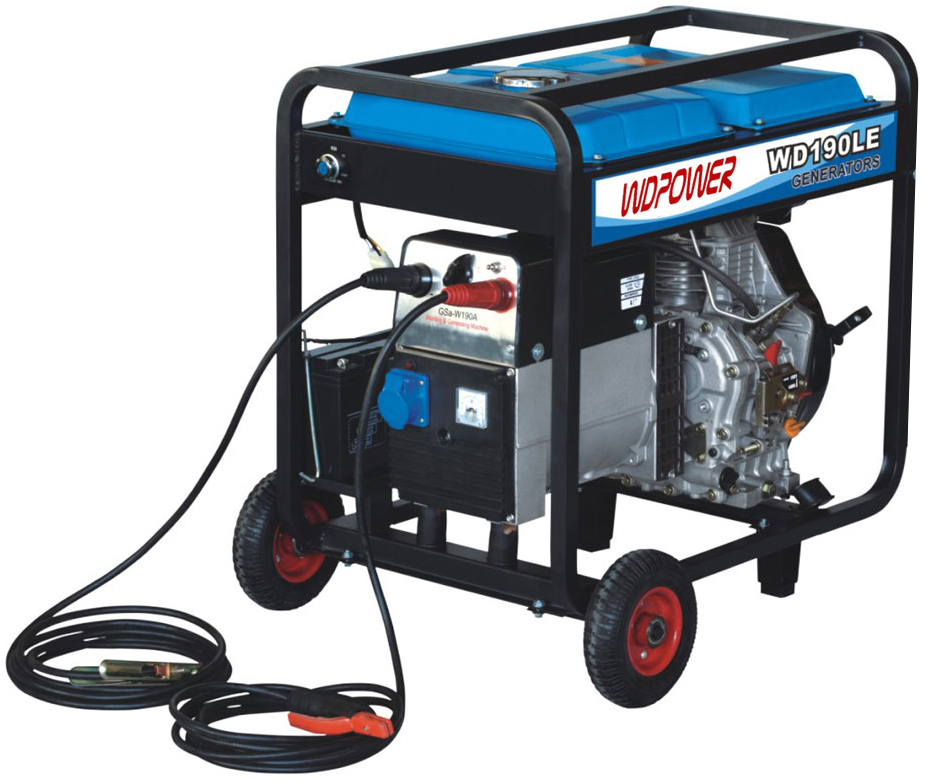

WG-190LE
- Features
- Specs
OneUnit, Dual Function
wdpower originaltechnology gives birth to such an advanced product with dual functions-welding& generating, which brings more economical products for the consumer.
Simultaneous Use
Generating andwelding can be operated simultaneously, while welding operation won't impact onthe waveform and voltage of the generating operation.
PerfectWelding
The unit can achieve perfectwaveform of the welding voltage by utilizing IGBT and PWM technology.Non-fluctuating welding current realizes high quality welding operation.
Excellent Electricity
New Automatic VoltageRegulator (AVR) and damper winding further enhance the electricity performancewith extremely low voltage regulation and minimum waveform distortion
Easy Maneuver Ability
Lightweight andcompact design improves on-site maneuverability and save a lot of storagespace. And its four durable castors are helpful to its easy transportation
Wide Application
The welding arc issuper smooth to get the perfect welding quality in all kinds of theapplications. Furthermore, its welding current regulation is wide enough tosuit most of welding rods
Generator Model | WG190LE | |
Type | Single-phase, synchronous alternator; | |
Frequency (Hz) | 50 | 60 |
Speed (rpm) | 3000 | 3600 |
Max.ont.A.C output (Kw) | 3.5 | 3.8 |
Cont.A.C output (Kw) | 3.2 | 3.5 |
Voltage (v) | 110; 120; 220; 230; 240; 220/110; 240/120. | |
D.C output (v) | 12V/ 8.3A | |
Power factor (%) | 100 | |
Excitation system | self-excitation | |
Constant Voltage | (Automatic Voltage Regulation)AVR | |
Welder | ||
Applicably electrode dia(mm) | 1.2-4.0 | 1.2-4.0 |
No-load welder voltage(V) | 88 | 88 |
Max.Welding Current (A) | 190 | 190 |
Welding operation Voltage(V) | 22-31 | 22-31 |
Welding Current adjustment (A) | 45-150 | 45-160 |
Engine model | WD-G188F,188F | |
Type | Single-cylinder,250, oblique,air-cooled,4-stroke,OHV | |
Displacement(cc) | 389 | 389 |
BoreXstroke (mm) | 88X64 | 88x64 |
Engine Speed (rpm) | 3000 | 3600 |
Max.output (hp/kw) | 10.5hp | 12hp |
Cont.output (hp/Kw) | 10hp | 10.5hp |
Combustion system | Forced Air | |
Lgnition System | Non-contact Transistorized magneto ignition system | |
Starting system | Recoil starter or Electric Starter | |
Lube oil capacity (L) | 1.4 | 1.4 |
Fuel tank capacity(L) | 13.5 | 13.5 |
Cont.working time(h) | 8 | 8 |
low Oil Alert | yes | yes |
Fuel Gauge | yes | yes |
Hour/Ampere/Voltage Meter | yes | yes |
Transfer Switch | yes | yes |
optional configuration | Wheels, Handles and Supporting Legs; (Optional) | |
Noise lvevk (db) | 78dB(A)at 7 mts | 78dB(A)at 7 mts |
Package Dimension and Weight | ||
Dimensions LXWXH (mm) | 840*535*650 | 840*535*650 |
Net/Dry weight (kgs) | 70/73 | 70/73 |
