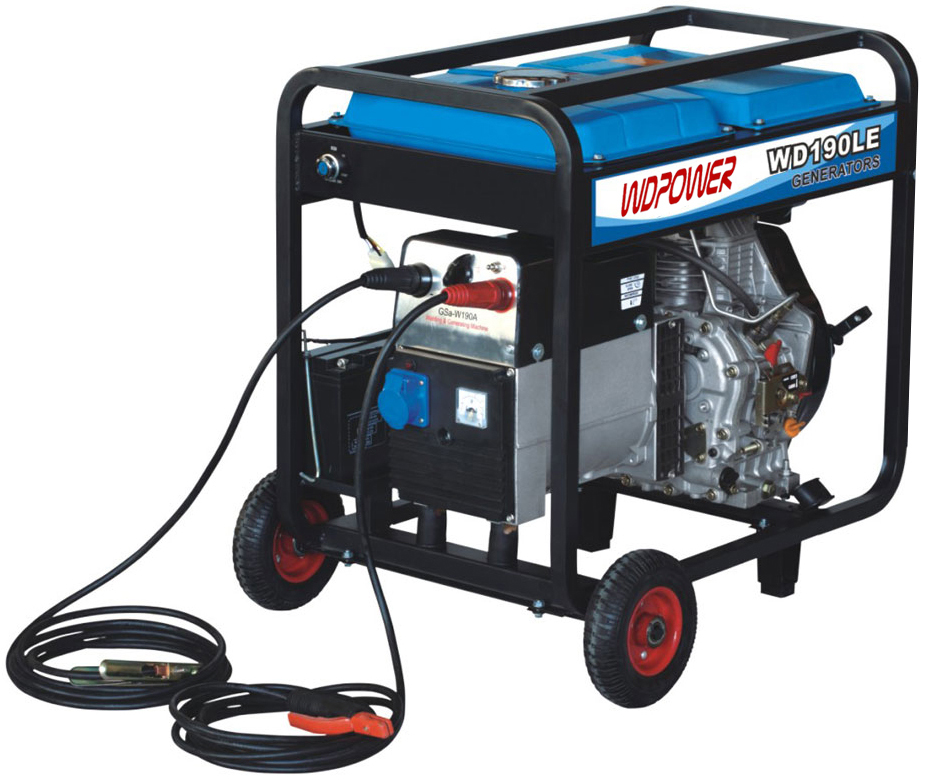

WD190LE

Product Description

* One unit, dual function
* Simultaneoususe
* Perfectwelding
* Excellentelectricity
* Easy maneuverability
* Wideapplicationily


  1. Features
  2. Specs

OneUnit, Dual Function
wdpower originaltechnology gives birth to such an advanced product with dual functions-welding& generating, which brings more economical products for the consumer.
Simultaneous Use
Generating andwelding can be operated simultaneously, while welding operation won't impact onthe waveform and voltage of the generating operation.
 PerfectWelding
The unit can achieve perfectwaveform of the welding voltage by utilizing IGBT and PWM technology.Non-fluctuating welding current realizes high quality welding operation.
Excellent Electricity
New Automatic VoltageRegulator (AVR) and damper winding further enhance the electricity performancewith extremely low voltage regulation and minimum waveform distortion
Easy Maneuver Ability
Lightweight andcompact design improves on-site maneuverability and save a lot of storagespace. And its four durable castors are helpful to its easy transportation
Wide Application
The welding arc issuper smooth to get the perfect welding quality in all kinds of theapplications. Furthermore, its welding current regulation is wide enough tosuit most of welding rods

Generator ModelWD190LE
TypeSingle-phase, three-phase, synchronous alternator;
Frequency (Hz)5060
Speed (rpm)30003600
Max.ont.A.C output (Kw)3.53.8
Cont.A.C output (Kw)3.23.5
Voltage (v)110; 120; 220; 230; 240; 220/110; 240/120.
D.C output (v)12V/  8.3A
Power factor (%)100
Excitation systemself-excitation
Constant Voltage(Automatic Voltage Regulation)AVR
Welder
Applicably electrode dia(mm)1.2-4.01.2-4.0
No-load welder voltage(V)8888
Max.Welding Current (A)190190
Welding operation Voltage(V)22-3122-31
Welding Current adjustment (A)45-15045-160
Engine modelWD186FA,186FA
TypeSingle-cylinder,vertical,4-strokeair-cooler,direct-infection diesel.
Displacement(cc)418418
BoreXstroke (mm)86X7286x72
Engine Speed (rpm)30003600
Max.output (hp/kw)8.5hp10hp
Cont.output (hp/Kw)7.7hp8.5hp
Combustion systemForced Air
Governor systemCentrifugal weight system
Starting systemRecoil starter or Electric Starter
Lube oil capacity (L)1.651.65
Fuel tank capacity(L)13.513.5
Cont.working time(h)88
low Oil Alertyesyes
Fuel Gaugeyesyes
Hour/Ampere/Voltage Meteryesyes
Transfer Switchyesyes
optional configurationWheels, Handles and Supporting Legs; (Optional)
Noise lvevk (db)78dB(A)at 7 mts78dB(A)at 7 mts
Package Dimension and Weight
Dimensions LXWXH (mm)840*535*650840*535*650
Net/Dry weight (kgs)128/131128/131
