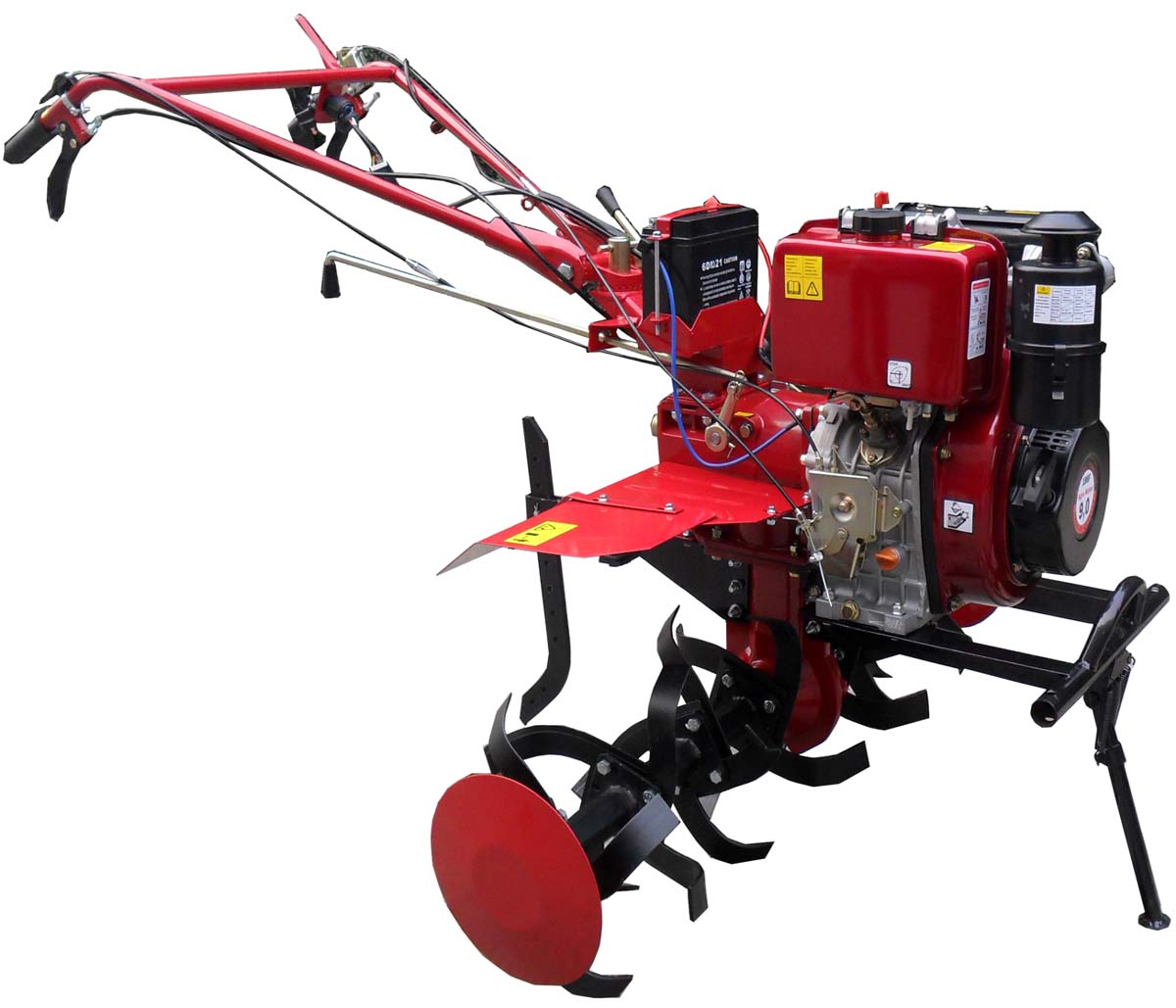

Power Tiller: 1WG6.5-135FC

Product Description

Mini tiller: 1WG6.3-135
Equipped with 186FA Diesel Engine
Low fuel consumption
Easy carry and handy
Easy Operation
Furrow width (circle tillage:1350mm
Furrow Depth(circle tillage):  100mm~300mm
Work efficiency (m2/h) : :≥800



  1. Features
  2. Specs

 *Agricultural Diesel Power Tiller Cultivation
 *Model: 1WG6.3-135
 *Equipped With 186FA Diesel engine
 *Furrow Width: 1350mm
 *Furrow Depth: ≥100mm
 *Working Speed:0.1-~0.3m/s
 *Work Efficiency:  ≥800 m2/h
 *Gear Shifting: Reverse, 0, 1, 2.
 *Connection: Gear Driving Mini Power Tiller
 *Low Fuel Consumption
 *Easy Carry and Hand
 *Packing: Standard Export Carton or Plywood Case or Steel +Carton

1. Original    The best diesel engine made in China. Reliable and powerful.
2. Highly efficient: 800 square meters tillage per hour.
3.Specially design mud fenders (with patent): Avoid splash soil and flying stones hurt to operator and machine. Safe to operate.
4.Handle bar Up-down adjustable: Different height of people in your family can use it easily. (Children is not allowed to use the machine).
5.Handle bar left-right adjustable: standing aside when accessories is attached at the rear of gearbox. More flexible and convenient when working with multifunctional tools,such as ridger, mulching machine, pump sprayer, pump, etc.
6.Emergency stop switch: loosen the grasped switch to avoid urgent dangers by stopping the operating engine,very safe for tilling practice.
.

Optional:
 1).
Plastic or Iron Engine Hood
 2).
500-12 Tires
 3).
Power Tiller with Sprayer pump
 4).
Power Tiller with Water pump
 5).
One or two lights
 6).
All kinds of Power Tiller blades










Model 1WG6.3-135FC
 Tiller Width 135 cm
 Tiller DepthOver 10 cm
 Reverse Speed 4.0 km/h
 Driving Speed Slow:5.0km/h         Fast: 8.0km/h
TillerWorking Speed 0.1-0.3 m/s
 Efficiency Efficiency Per Hour Over 400 m2/h
 Fuel Consumption Less 2.5 kg/h
 Blade RevolutionsFast :137 r/min     Slow : 115r/min
 Blade Gyration Radius Less 190mm
Engine Engine Model Diesle  Engine 186FA
Engine Type Single Cylinder Vertical  4-stroke Direct injecction air-cooled
Max Power 6.5kw
Fuel Tank Capacity 5.5L
Bore X Stroke 86mm  X 72mm
Displacement 418CC
Starting System Recoil or Electric Start need a battery Extra
TransmissionMaterial of Gearbox and Transmission Die Casting Aluminum Alloy + Iron
 System Gearbox Transmission type Gear
 Engine driving type Direct Gear Connecting
Handle Direction Adjust (U,D,L,R)Grinding Gear Teeth : Up, Down, Left, Right
Emergency Stop System (ESS)With ESS Function
Shift Clutch Type Friction Plate Clutch
 SystemShift Type Direct Gear Shifting
 Gear Shifting (Optional)2 Forward ,fast slow ,1 Neutral ,1 Reverse
Blade  Blade Type (Standard Configuration)Dry land Blades
And Blade Quantity (pcs)30PCS
WheelWheel Model ( optional )400-8 , 500-10,   500-12
Packing N.w / G.w156kgs / 167kgs
and Dimensions(мм)1750x1350x1100
DimensionPacking and Container q'ty   20Fcl/78pcs    40FCL/168pcs
