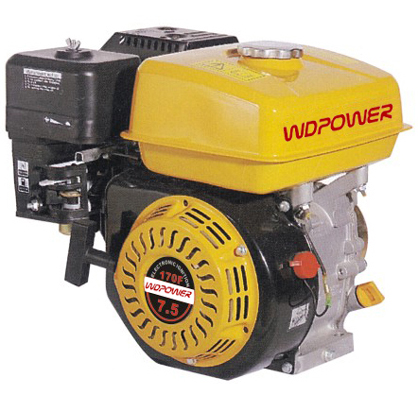

Gasoline Engine 170F Series

Product Description

* Max power/Max speed:          7.0Hp / 5.2Kw/3600r.p.m
* Rated power/Rated speed:     5.44Hp / 4.0Kw/3600r.p.m
* Max. Torque N.m/(r/min):        11.2N.M/2500r.p.m
* Advanced OHV
* Low fuel consumption
* Lightweight and compact design
* Easy and fast starting
*Stand up the hard work
* Recoil starter or Electric Starter

  1. Features
  2. Specs

Small Size, Wide Application
WDPOWER Gasolineengine series has an inclination of 15°, which makes its dimension more compactthan the standard vertical engine and easy for mounting on any power device.
ExcellentPerformance
Each engine of Wdpowersgasoline engine can deliver non-fluctuating power for a long time. It featureseasy starter, low noise and small vibration.
Advanced OHV:
OHV type improvesthe output, reduces the consumption and prolongs the service lift of engines.In addition, advanced combustion chamber and automatic lubrication systemguarantee the high reliability of engines. It has reached USA EPA2008 standardrefer to the low noise and exhausts.
ConvenientStarting System
Applying anauto-depression unit and recoil starter for a quick and easy starting.
Satisfying TheNeeds of Customers
Various PTO andspeed ratios satisfy the different meets of applications, such as applicationsfor mowers, water pumps, generators etc. Great quantities of accessories areoptional.



庆                                                                   泰                                                                耀

ModelGasoline Engine 170F Series
G180F(D)G210F(D)
Type Single Cylinder,4-Stroke,Forced Air cooling, OHV
Rated Power Hp/kw/3600rpm4.4/3.25.44/4.0
Max.Power Hp/kw/3600rpm5.7/4.27.0/5.2
Max .torque (N.m./rpm)11/300013/3000
Fuel Consumption(g/kw.h)≤395≤395
Idle Speed 1400 ±150
Speed Fluctuating Ratio ≤10%
Transmission Mode
Reduction Ratio
Noise ≤ 70db(A)
Bore ×Stroke (mm)70×4670×55
Displacement(cc)177212
Compression Ratio8.2:1
Lubricating ModeSplash
Starting ModeRecoil starter/Electric starter
RotationAnti-clockwise(From P.T.O. Side)
Valve ClearanceInput Valve:0.10mm∽0.15mm,Input Valve:0.15mm∽0.20mm
Spark Plug Clearance0.7mm ∽ 0.8mm
Igniting ModelTransistorized magneto Ignition
Air CleanerSemi-dry, Oil bath, Foam filter (Optional)
Dimension(Length)342342
Dimension(Width)376376
Dimension(High)335335
Net Weight(kg)16/1917/20
