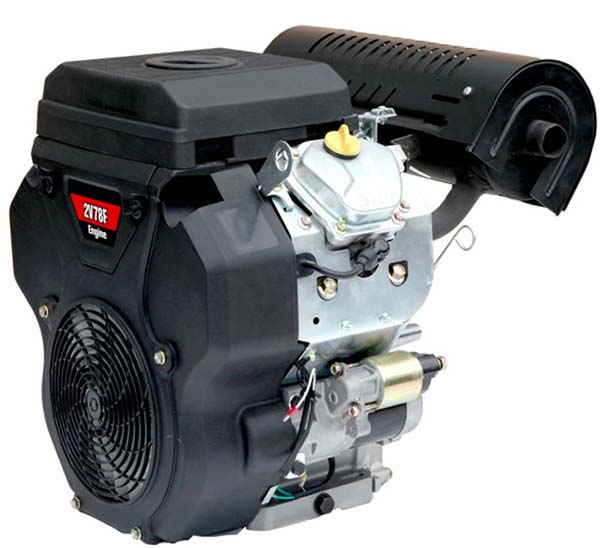

Gasoline Engine 2V78F (New)
 |
Product Description
|
- Features
- Specs
• The V-type twin cylinder air-cooling gasoline engine is compact and lightweight, whose rigidity has beengreatly enhanced.
• It is featured by reliable and stable performance, easy dissembly, and maintenance.Pressurizer tank reduces intake noise.
• Application of cylinder gear driving device leads to a more compact, precise, and reliable structure.
• Power output of front/rear crankshaft can meet various applications and demands.
• Satisfying The Needs of Customers
Various PTO and speed ratios satisfy the different meets of applications, such as applications for mowers, water pumps, generators etc. A great quantity of accessories are optional
重庆泰耀动力
| Model | 2V78F Gasline engine (new) |
| Type | Two-cylinder、V-Twin、air-cooled、4-stroke、OHV |
| Bore*Stroke (mm) | 78X72 |
| Displacement (CC) | 688CC |
| Compression ratio | 9.3 ：1 |
| Rated power/ Rated speed | 16.3hp/12kw @3000rpm 19hp/14kw @3600rpm |
| Mini speed at zero load (r/min) | ≤1440 |
| Lubrication system | Forced lubrication |
| Starting system | Electric starter |
| Rotation direction (face to the output axle) | Anticlockwise |
| Ignition System | Non-Contact Transistorized magneto Ignition System |
| Fuel tank capacity (L) | 6.0L |
| The lowest fuel consumption (g/kw.h) | ≤360g/kw.h |
| Fuel type | Automatic unleaded gasoline |
| Lube oil type | CD grade or sea 10W-30,15W-40 |
| Lube oil capacity (L) | 1.5L |
| Battery capacity (V ,Ah) | Above 12V 20Ah |
| Dry weight (kg) | G.W. 47kg : Net weight 45kgs |
| Overall dimension (L*M*H) | 455mm*400mm*450mm |
