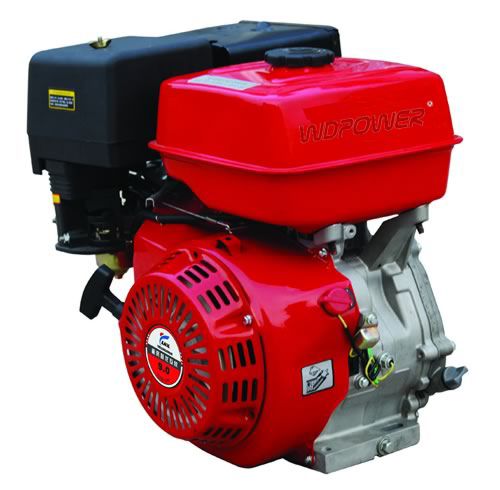

Gasoline Engine 160F

Product Description

* Max power/Max speed: 4.0Hp/2.9Kw/3600r.p.m
* Rated power/Rated speed: 3.0hp/2.2Kw/3600r.p.m
* Max. Torque N.m/(r/min): 5.7N.M/3000r.p.m
* Advanced OHV
* Low fuel consumption
* Lightweight and compact design
* Easy and fast starting
*Stand up the hard work
* Recoil starter or Electric Starter

  1. Features
  2. Specs

WDPOWER Gasoline engine G series has an inclination of 15°, which makes its dimension more compact than the standard vertical engine and easy for mounting on any power device.
Excellent Performance
Each G series engine of gasoline engine can deliver non-fluctuating power for a long time. It features easy starter, low noise and small vibration.
Advanced OHV:
OHV type improves the output, reduces the consumption and prolongs the service lift of engines. In addition, advanced combustion chamber and automatic lubrication system guarantee the high reliability of engines. It has reached USA EPA2008 standard refer to the low noise and exhausts.
Convenient Starting System
Applying an auto-depression unit and recoil starter for a quick and easy starting.
Satisfying The Needs of Customers
Various PTO and speed ratios satisfy the different meets of applications, such as applications for mowers, water pumps, generators etc. A great quantity of accessories are optional



ModelG120F    /   160F
TypeSingle-cylinder、Oblique、air-cooled、4-stroke、OHV
Bore*Stroke (mm)60x42
Displacement (ml)118
Compression ratio8.5 : 1
Rated power/ Rated speed ( hp / kw /r/min)4.0hp/2.9kw/3600
Mini speed at zero load (r/min)≤1440
Lubricating systemSplashed
Starting systemRecoil starter/Electric starter
Rotation direction (face to the output axle)Anticlockwise
Ignition SystemNon-Contact Transistorized magneto Ignition System
Fuel tank capacity (L)2.5L
The lowest fuel consumption (g/kw.h)≤420g/kW.h
Fuel typeAutomatic unleaded gasoline
Lube oil typeCD grade or sea 10W-30,15w-40
Lube oil capacity (L)0.6
Battery capacity (V ,Ah)
Dry weight (kg)14 kg
Overall dimension (L*M*H)395*335*365
