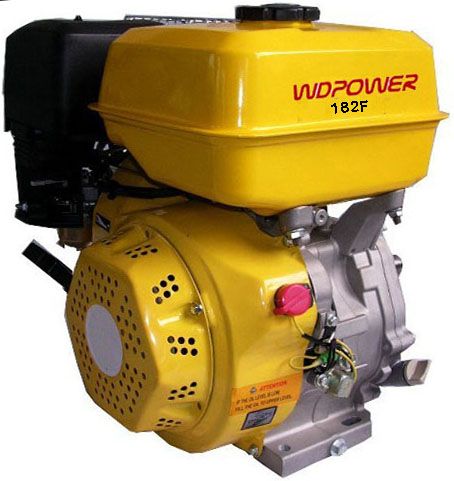

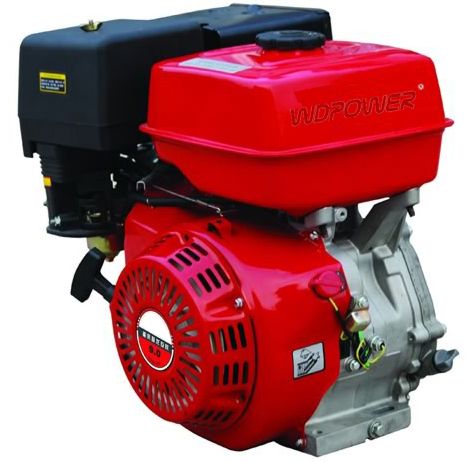

Gasoline Engine 182F Series

Product Description

* Max power/Max speed:      11.0Hp/8.2Kw/3600r.p.m
* Rated power/Rated speed: 9.5Hp/7.0Kw/3600r.p.m
* Max. Torque N.m/(r/min): 21N.M/2500r.p.m
* Advanced OHV
* Low fuel consumption
* Lightweight and compact design
* Easy and fast starting
*Stand up the hard work
* Recoil starter or Electric Starter



  1. Features
  2. Specs

WDPOWER Gasoline engine G series has an inclination of 15°, which makes its dimension more compact than the standard vertical engine and easy for mounting on any power device.
Excellent Performance
Each G series engine of gasoline engine can deliver non-fluctuating power for a long time. It features easy starter, low noise and small vibration.
Advanced OHV:
OHV type improves the output, reduces the consumption and prolongs the service lift of engines. In addition, advanced combustion chamber and automatic lubrication system guarantee the high reliability of engines. It has reached USA EPA2008 standard refer to the low noise and exhausts.
Convenient Starting System
Applying an auto-depression unit and recoil starter for a quick and easy starting.
Satisfying The Needs of Customers
Various PTO and speed ratios satisfy the different meets of applications, such as applications for mowers, water pumps, generators etc. A great quantity of accessories are optional

ModelGasoline Engine 182F Series
GX340F(D)GX340F(D)-D
Type Single Cylinder,4-Stroke,Forced Air cooling, OHV
Rated Power Hp/kw/3600rpm9.5/7.09.5/7.0
Max.Power Hp/kw/3600rpm11/8.211/8.2
Max .torque (N.m./rpm)23.5/300045/1500
Fuel Consumption(g/hp.h)≤270≤270
Idle Speed 1400 ±150
Speed Fluctuating Ratio ≤10%
Transmission ModeGear Transmission
Reduction Ratio02:01
Noise ≤ 71db(A)  at 7 mts
Bore ×Stroke (mm)82×6482×64
Displacement(cc)337337
Compression Ratio8.0 : 1
Lubricating ModeSplash
Starting ModeRecoil starter/Electric starter
RotationAnti-clockwise(From P.T.O. Side)
Valve ClearanceInput Valve:0.10mm-0.15mm,Input Valve:0.15mm-0.20mm
Spark Plug Clearance0.7mm - 0.8mm
Igniting ModelTransistorized magneto Ignition
Air CleanerSemi-dry, Oil bath, Foam filter (Optional)
Dimension(Length)405440
Dimension(Width)450450
Dimension(High)443443
Net Weight(kg)31/3433/36
