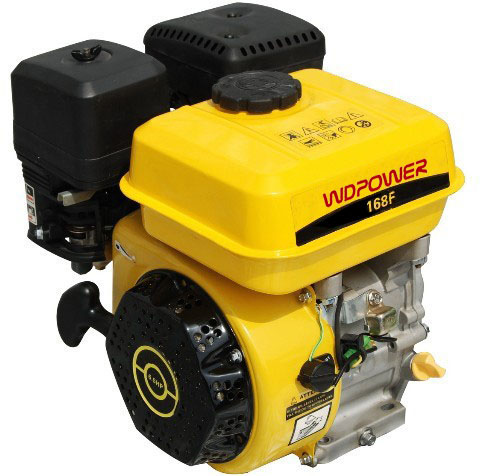

Gasoline Engine 168F Series
 |
Product Description
|
- Features
- Specs
Small Size, Wide Application
WDPOWER Gasolineengine series has an inclination of 15°, which makes its dimension more compactthan the standard vertical engine and easy for mounting on any power device.
ExcellentPerformance
Each engine of Wdpowersgasoline engine can deliver non-fluctuating power for a long time. It featureseasy starter, low noise and small vibration.
Advanced OHV:
OHV type improvesthe output, reduces the consumption and prolongs the service lift of engines.In addition, advanced combustion chamber and automatic lubrication systemguarantee the high reliability of engines. It has reached USA EPA2008 standardrefer to the low noise and exhausts.
ConvenientStarting System
Applying anauto-depression unit and recoil starter for a quick and easy starting.
Satisfying TheNeeds of Customers
Various PTO andspeed ratios satisfy the different meets of applications, such as applicationsfor mowers, water pumps, generators etc. Great quantities of accessories areoptional.
| Model | 160F | Gasoline Engine 168F Series | |||||
| G120F | G160F(D) | G200F(D) | G160F(D)-B | G200F(D)-B | G160F(D)-C | G200F(D)-C | |
| Type | Single Cylinder,4-Stroke,Forced Air cooling, OHV | ||||||
| Rated Power Hp/kw/3600rpm | 3.4/2.5 | 4.2/3.1 | 5.5/4.04 | 4.2/3.1 | 5.5/4.04 | 4.2/3.1 | 5.5/4.04 |
| Max.Power Hp/kw/3600rpm | 3.4/2.5 | 5.5/4.1 | 6.5/4.8 | 5.5/4.1 | 6.5/4.8 | 5.5/4.1 | 6.5/4.8 |
| Max .torque (N.m./rpm) | 7.5/3000 | 10.5/3000 | 13/3000 | 20/1500 | 22/1500 | 20/1500 | 24/1500 |
| Fuel Consumption(g/kw.h) | ≤395 | ≤395 | ≤395 | ≤395 | ≤395 | ≤395 | ≤395 |
| Idle Speed | 1400 ±150 | ||||||
| Speed Fluctuating Ratio | ≤10% | ||||||
| Transmission Mode | － | － | － | Clutch Mode | Chain Mode | ||
| Reduction Ratio | － | － | － | 02:01 | |||
| Noise ≤ | 70db(A) | ||||||
| Bore ×Stroke (mm) | 60×42 | 68×45 | 68×54 | 68×45 | 68×54 | 68×45 | 68×54 |
| Displacement(cc) | 118 | 163 | 196 | 163 | 196 | 163 | 196 |
| Compression Ratio | 8.5:1 | ||||||
| Lubricating Mode | Splash | ||||||
| Starting Mode | Recoil starter/Electric starter | ||||||
| Rotation | Anti-clockwise(From P.T.O. Side) | ||||||
| Valve Clearance | Input Valve:0.10mm∽0.15mm , Input Valve:0.15mm∽0.20mm | ||||||
| Spark Plug Clearance | 0.7mm ∽ 0.8mm | ||||||
| Igniting Model | Transistorized magneto Ignition | ||||||
| Air Cleaner | Semi-dry, Oil bath, Foam filter (Optional) | ||||||
| Dimension(Length) | 305 | 312 | 312 | 391 | 391 | 342 | 342 |
| Dimension(Width) | 341 | 362 | 376 | 362 | 376 | 362 | 376 |
| Dimension(High) | 318 | 335 | 335 | 335 | 335 | 335 | 335 |
| Net Weight(kg) | 13 | 15/18 | 16/19 | 19/22 | 20/23 | 15.5/18.5 | 16.5/19.5 |
