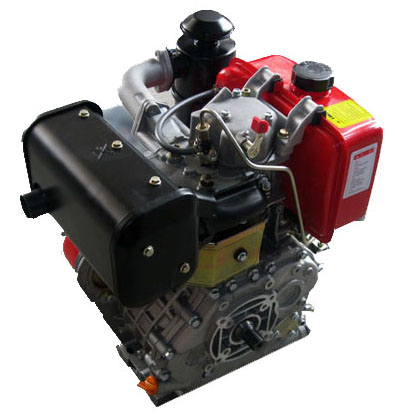

WD188FA ( 188FA)
- Features
- Specs
Straight-line, Air-cooled, and Four-stroke
Straight-line cylinder body
Simple and compact structure of cylinder body, cylinder head, and crankshaft
Excellent characteristics at low speed torque
Low fuel consumption
Environment-Friendly
Direct injection combustion chamber with P series nozzles not only boosts power but also reduces emissions and smoke.
Low exhaust emissions meet EPA II standard.
Low Vibration and Low Noise
WDPOWER’s constant technical innovation achieves the target of superior vibration and noise reduction
Low vibration and noise makes operators feel comfortable even after long hours of operation.
Easy Start, Light Weight, and Small Size Dimension
Two kinds of easy starting system: recoil and electric
Lightweight alloys used for main engine parts
A small-sized engine body built for application in a strict environment
Wide Application Range
For gensets
For pump groups
For agricultural machinery
Improvements
Useful option: application of recoil starter or electric starter depending on customer requirements
Impressive achievement: a combination mode of pressure and splash lubrication
Model | WD188FA ( 188FA ) |
Type | Single-cylinder,vertical,air-cooled,4-stroke,direct injection |
Bore×Stroke (mm) | 88X75 |
Displacement(cc) | 456 |
Compression ratio | 19:01 |
Rated power/ Rated speed (Hp/r/min) | 8.9/3000 10.0/3600 |
Max power/ Max speed (Hp/r/min) | 10.0/3000 12.0/3600 |
Lubricating system | Pressure splashed |
Starting system | Recoil starter/Electric starter |
Rotation direction(face to the output axle) | Anticlockwise / Clockwise |
Fuel type | 0#、-10#、-20# diesel |
Fuel tank capacity (L) | 5.5/1.45 |
Fuel consumption/related rotation speed (g/hp.h/r/min) | 272/3000 280/3600 |
Lube oil type | CD grade or SAE 10W-30, 15W-40,40CC |
Lube oil capacity (L) | 1.65/0.44 |
Starting motor capacity (V、kW) | 12V 0.8kW |
Charging generator capacity (V、A) | 12V 3A |
Battery capacity (V、Ah) | Above 12V 20Ah |
Overall dimension(L×W×H)mm | 525X470X585 |
Dry weight(kg) | ≤50(Recoil starter)≤53(Electric starter) |
