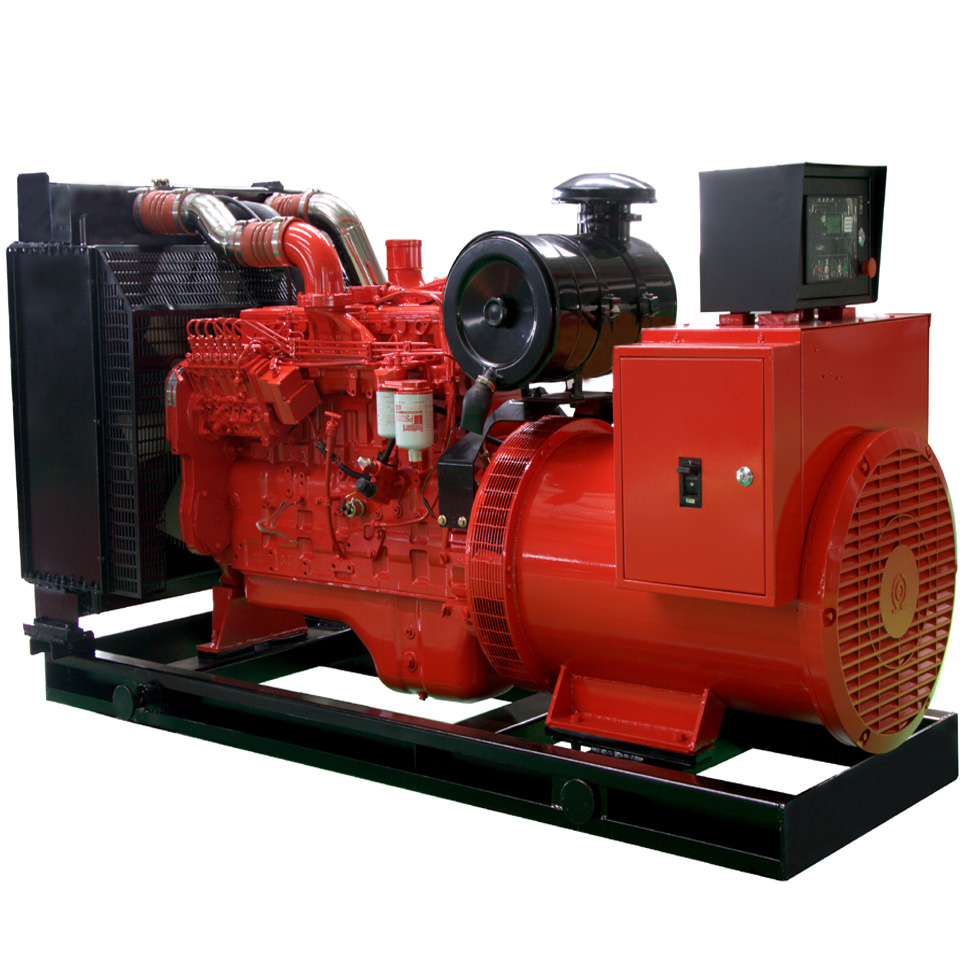

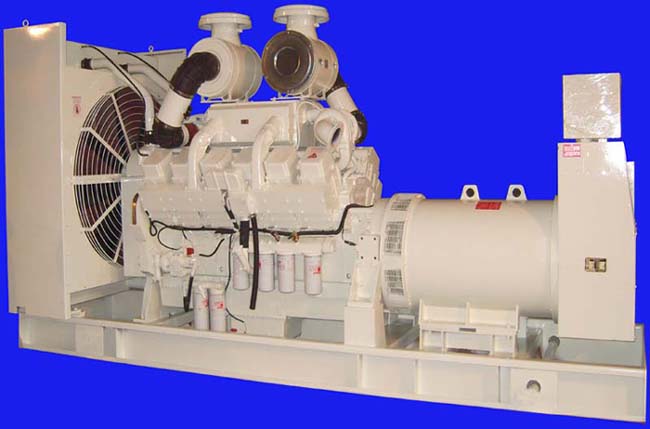

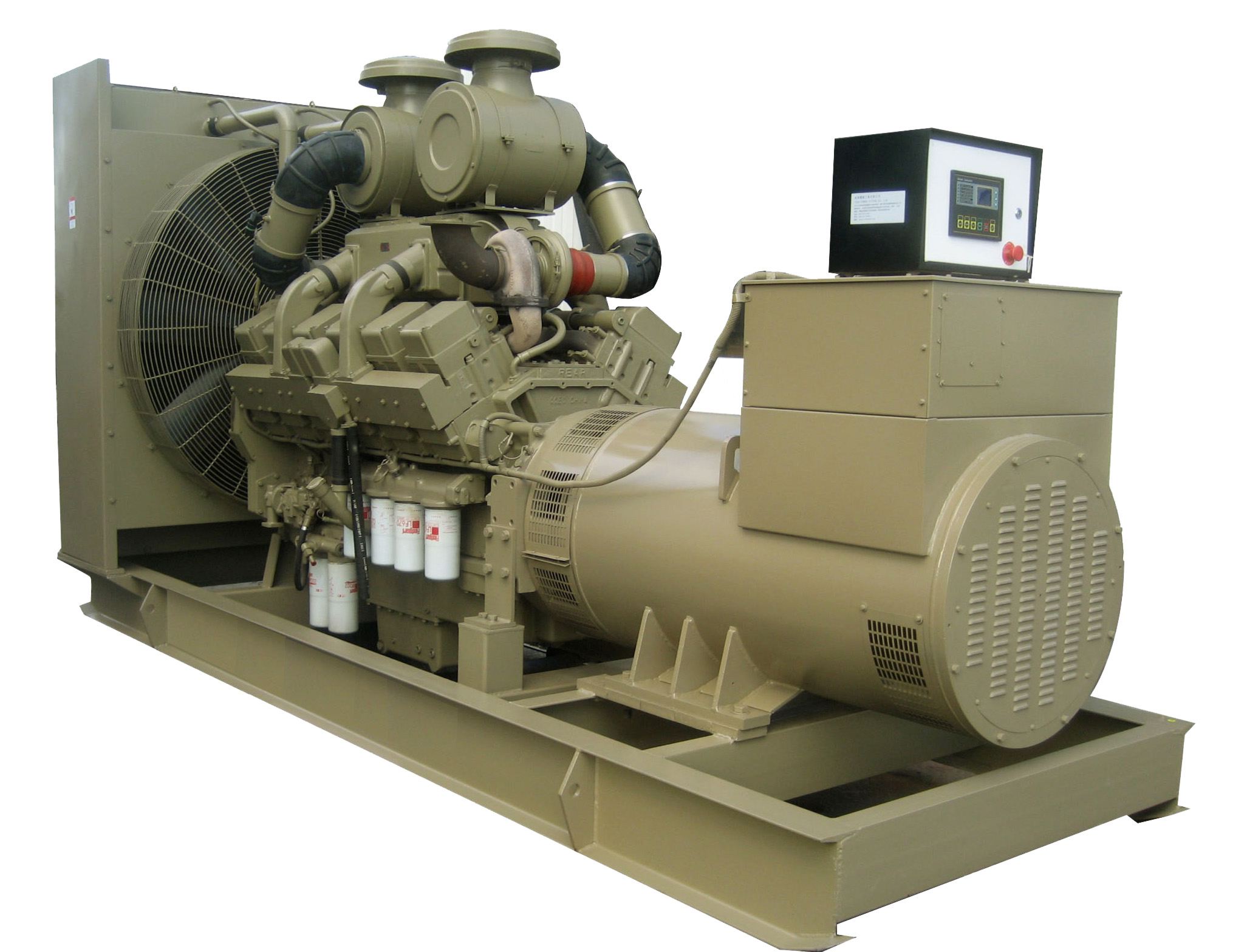

Cummins Series diesel generator

Product Description

* Composed of Cummins diesel engine and Stamford
or Leroy somer alternator
* Range: 30kva to 1100kvw
* Oil and fuel filter fitted, water separator Electric
Starter Charge motor 24 VD.C
* Lube-oil drain valve fitted
* Electric Starter Charge motor 24 VD.C
* Water-cooled
* 8-hours operation base tank
* Between 0.8 and 1.0 lagging and unity
* Auto start
* Optional : soundproof type, weatherproof
canopy type and open type
* 3 pole MCCB Delixi breaker
* Operation & Maintenance manual
* Special Integrated Steel Base tank and
sprayed overall in gloss enamel paint

Features
Specs

WdPower BRAND Cummins diesel generator sets Powered by Dongfeng/Chongqing Cummins engine, it enjoys the features of high reliability, easy maintenance, long continuous running hours and ideal for port, railway, industrial and mining. As the largest foreign investor in China's Engine industry, Cummin owned Dongfeng Cummin Engine Co,.LTD which mainly produce B, C, L series and Chongqing Cummins Engine Co,.LTD which mainly produce M, N, K series in accordance with the Cummins global quality standards in China

GENSETS	STANDBY POWER		PRIME POWER		CUMMINS ENGINE(1500/rpm 50HZ)					INSTRUMENT	ALTERNATOR		DIMENSION & WEIGHT
GENSETS					ENGINE MODEL	Cyl	BORE	STROKE	DISPLACEMENT	FOR	LEROY SOMER	STAMFORD	DIMENSION & WEIGHT
MODEL							BORE	STROKE	DISPLACEMENT	ADJUSTING			LxWxH	WEIGHT
MODEL	KVA	KW	KVA	KW			mm	mm	L	SPEED			mm	Kgs
WDC30	30	24	27	22	4B3.9-G2	4L	102	120	3.9	Electrical	LSA42.2M7	BCI184F	1794x980x1350	980
WDC44	44	35	40	32	4BT3.9-G2	4L	102	120	3.9	Electrical	LSA43.2 S15	BCI184H	1794x980x1350	980
WDC50	50	40	45	36	4BTA3.9-G2	4L	102	120	3.9	Electrical	LSA43.2S25	UCI224D	1794x980x1350	1070
WDC70	70	55	63	50	4BTA3.9-G2	4L	102	120	3.9	Electrical	LSA43.2L65	UCI224F	1794x980x1350	1070
WDC100	100	80	90	72	6BT5.9-G1	6L	102	120	5.88	Mechnical	LSA44.2VS3	UCI274C	2240x980x1473	1200
WDC110	110	88	100	80	6BT5.9-G2	6L	102	120	5.88	Electrical	LSA44.2VS45	UCI274C	2240x980x1473	1200
WDC138	138	110	125	100	6BTAA5.9-G2	6L	102	120	5.88	Electrical	LSA44.2S7	UCI274D	2240x980x1515	1400
WDC150	150	120	138	110	6BTAA5.9-G2	6L	102	120	5.88	Electrical	LSA 44.2 S75	UCI274E	2240x980x1515	1500
WDC163	163	130	150	120	6CTA8.3G2	6L	114	135	8.3	Electrical	LSA44.2M95	UCI274F	2274x980x1472	1500
WDC206	206	162	188	150	6CTA8.3G2	6L	114	135	8.3	Electrical	LSA46.2M3	UCI274G	2389x980x1472	1600
WDC215	215	172	200	160	6CTAA8.3G2	6L	114	135	8.3	Electrical	LSA46.2M5	UCI274H	2394x980x1636	1700
WDC275	275	220	250	200	6LTAA8.9G2	6L	114	145	8.9	Electrical	LSA46.2L6	UCD274K	2794x1100x1690	2300
WDC300	300	240	275	220	NT855-GA	6L	140	152	14	Electrical	LSA46.2L8	HCI444D	2960x1100x1770	3250
WDC313	313	250	280	220	NTA855-G1A	6L	140	152	14	Electrical	LSA46.2L9	HCI444D	3050x1100x1820	3300
WDC350	350	280	313	250	NTA855-G1B	6L	140	152	14	Electrical	LSA46.2VL12	HCI444ES	3050x1100x1820	3300
WDC388	388	310	350	280	NTA855-G2A	6L	140	152	14	Electrical	LSA47.2VS2	HCI444E	3050x1100x1820	3350
WDC413	413	330	375	300	NTAA855-G7	6L	140	152	14	Electrical	LSA47.2VS2	HCI444FS	3300x1200x1950	4800
WDC450	450	360	413	330	NTAA855-G7A	6L	140	152	14	Electrical	LSA47.2S4	HCI444F	3300x1300x1950	4850
WDC500	500	400	450	360	KTA19-G3	6L	159	159	18.9	Electrical	LSA47.2S5	HCI544C	3380x1305x1950	4900
WDC550	550	440	500	400	KTA19-G4	6L	159	159	18.9	Electrical	LSA47.2M7	HCI544D	3380x1305x1950	4900
WDC600	600	485	550	440	KTAA19-G5	6L	159	159	18.9	Electrical	LSA47.2M8	HCI544E	3500x1550x2100	4900
WDC625	625	500	550	440	KTAA19-G5	6L	159	159	18.9	Electrical	LSA47.2L9	HCI544E	3500x1550x2100	4950
WDC650	650	520	600	480	KTAA19-G6	6L	159	159	18.9	Electrical	LSA47.2L9	HCI544E	3500x1550x2100	4800
WDC688	688	550	625	500	KTAA19-G6A	6L	159	159	18.9	Electrical	LSA49.1S4A	HCI544F-S	3500x1550x2100	4950
WDC725	725	580	650	520	QSK19-G3	6L	159	159	19	Cummins MCRS	LSA49.1S4	HCI544F	4450x1750x2350	7800
WDC825	825	660	750	600	KTA38-G2	12V	159	159	37.8	Electrical	LSA49.1M65	LVI634B	4450x1750x2350	7850
WDC900	900	720	800	640	KTA38-G2A	12V	159	159	37.8	Electrical	LSA49.1M75	LVI634C	4450x1750x2350	7950
WDC1000	1000	800	900	720	KTA38-G2A	12V	159	159	37.8	Electrical	LSA49.1L10	LVI634D	4450x1750x2350	8000
WDC1100	1100	880	1000	800	KTA38-G5	12V	159	159	37.8	Electrical	LSG55	LVI634E	4450x1750x2350	9800
60HZ COSf=0.8,440/220V 3PHASES 4WIRES
GENSETS	STANDBY POWER		PRIME POWER		CUMMINS ENGINE(1800/rpm 60HZ)					INSTRUMENT	ALTERNATOR		DIMENSION & WEIGHT
GENSETS					ENGINE MODEL	Cyl	BORE	STROKE	DISPLACEMENT	FOR	LEROY SOMER	STAMFORD	DIMENSION & WEIGHT
MODEL							BORE	STROKE	DISPLACEMENT	ADJUSTING			LxWxH	WEIGHT
MODEL	KVA	KW	KVA	KW			mm	mm	L	SPEED			mm	Kgs
WDC35	35	28	31	25	4B3.9-G2	4L	102	120	3.9	Electrical	LSA42.2M7	BCI184F	1794x980x1350	980
WDC55	55	44	50	40	4BT3.9-G2	4L	102	120	3.9	Electrical	LSA43.2S15	BCI184J	1794x980x1350	980
WDC75	75	60	68	54	4BTA3.9-G2	4L	102	120	3.9	Electrical	LSA43.2L65	UCI224F	1794x980x1350	1070
WDC95	95	76	85	68	6BT5.9-G1	6L	102	120	5.88	Mechnical	LSA43.2L8	UCI224G	2240x980x1473	1200
WDC110	110	88	100	80	6BT5.9-G2	6L	102	120	5.88	Electrical	LSA44.2VS3	UCI274C	2240x980x1473	1200
WDC125	125	100	113	90	6BT5.9-G2	6L	102	120	5.88	Electrical	LSA44.2VS45	UCI274C	2240x980x1473	1200
WDC163	163	130	148	118	6BTAA5.9-G2	6L	102	120	5.88	Electrical	LSA44.2S75	UCI274E	2240x980x1515	1400
WDC185	185	148	169	135	6CTA8.3G2	6L	114	135	8.3	Electrical	LSA44.2M95	UCI274F	2274x980x1472	1500
WDC200	200	160	180	144	6CTA8.3G2	6L	114	135	8.3	Electrical	LSA44.2L12	UCI274G	2389x980x1472	1600
WDC215	215	172	200	160	6CTA8.3G2	6L	114	135	8.3	Electrical	LSA46.2M3	UCI274G	2394x980x1636	1700
WDC240	240	194	220	175	6CTAA8.9G2	6L	114	145	8.9	Electrical	LSA46.2M5	UCI274H	2794x1100x1690	2300
WDC300	300	240	275	220	6LTAA8.9G2	6L	114	145	8.9	Electrical	LSA46.2L6	UCD274K	2794x1100x1690	2300
WDC335	335	267	300	240	NTA855G1	6L	140	152	14	Electrical	LSA46.2L9	HCI444D	2960x1100x1770	3250
WDC388	388	310	350	280	NTA855G1B	6L	140	152	14	Electrical	LSA46.2VL12	HCI444ES	3050x1100x1820	3300
WDC440	440	352	400	320	NTA855G3	6L	140	152	14	Electrical	LSA47.2VS2	HCI444E	3050x1100x1820	3300
WDC500	500	400	455	360	KTA19-G2	6L	159	159	18.9	Electrical	LSA47.2VS2	HCI444E	3300x1200x1950	4900
WDC530	530	425	480	385	KTA19-G3	6L	159	159	18.9	Electrical	LSA47.2S4	HCI444F	3380x1305x1950	4900
WDC625	625	500	560	450	KTA19-G4	6L	159	159	18.9	Electrical	LSA47.2M7	HCI544D	3380x1305x1950	4900
WDC725	725	580	660	528	KTAA19-G5	6L	159	159	18.9	Electrical	LSA47.2L9	HCI544E	3500x1550x2100	4900
WDC737	737	590	675	540	KTAA19-G7	6L	159	159	18.9	Electrical	LSA49.1S4	HCI544F	3500x1550x2100	4950
WDC810	810	650	780	620	KTA38-G	12V	159	159	37.8	Electrical	LSA49.1M6	LVI634B	4450x1750x2350	7800
WDC1000	1000	800	910	720	KTA38-G2	12V	159	159	37.8	Electrical	LSA49.1L9	LVI634D	4450x1750x2350	7850
